Configuration Scenarios Air Handlers

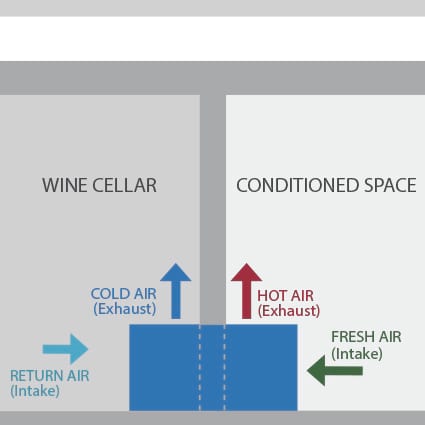

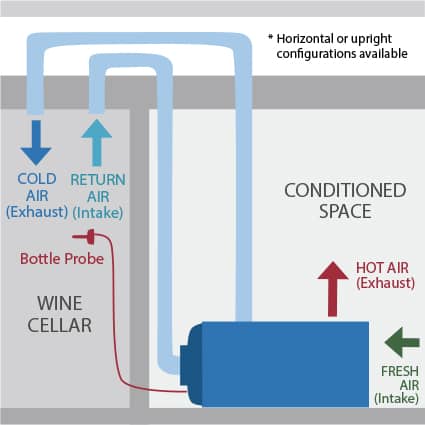

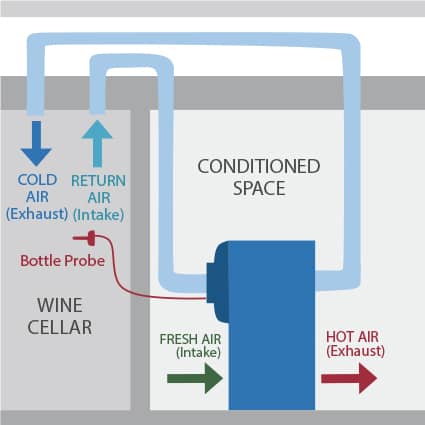

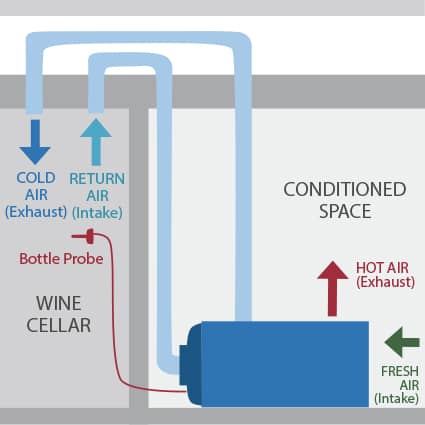

1. Floor Mount / No Ducting Hot exhaust and/or fresh intake can also be ducted.		2. Floor Mount / Front Ducted * Hot exhaust and/or fresh intake can also be ducted.

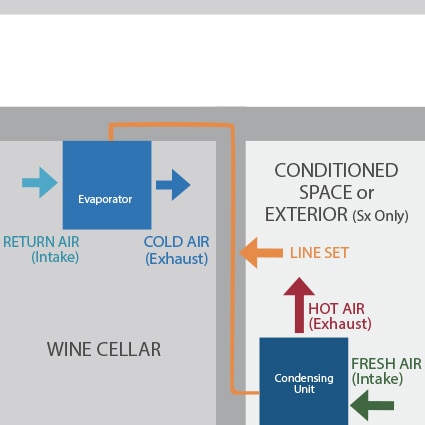

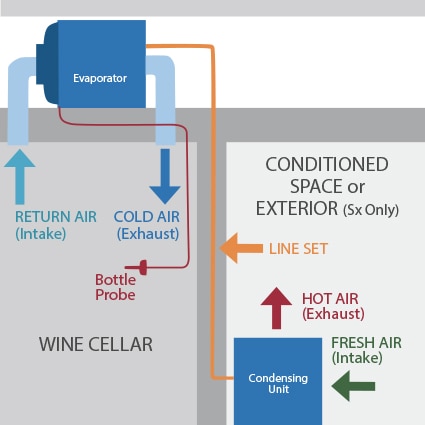

3. Split Configuration / No Ducting Hot exhaust and/or fresh intake can also be ducted.		4. Split Configuration / Front Ducted Hot exhaust and/or fresh intake can also be ducted.

* Horizontal or upright configurations available
