Low Ambient Temperature Kit #37441

Low Ambient Temperature Kit UC (P/N 37441). When the compressor will be exposed to cold ambient temperatures (generally 40F and below), our low ambient kit includes the following components:

• 45W compressor heater
• Fan cycling switch

Features include:

• Provides protection when ambient temperatures drop below 40F
• When the compressor has a delayed start after a power interruption and the compressor heater is wired hot, it provides protection for compressor inactivity
• Prevents refrigerant migration into the crankcase oil
• Improves refrigeration efficiency in cold temperature conditions
• Parts are shipped loose

This item is for exclusive use with CellarPro Unit Coolers.

Our 45W compressor heater and fan cycling switch should be used when the condensing unit is installed in temperatures below 40F.

• Provides protection when ambient temperatures drop below 40F
• When the compressor has a delayed start after a power interruption and the compressor heater is wired "hot", it protects the compressor from inactivity
• Prevents refrigerant migration into the crankcase oil
• Improves refrigeration efficiency in cold temperature conditions
• Parts are shipped loose

Brand: CellarPro

Weight: 1 lbs

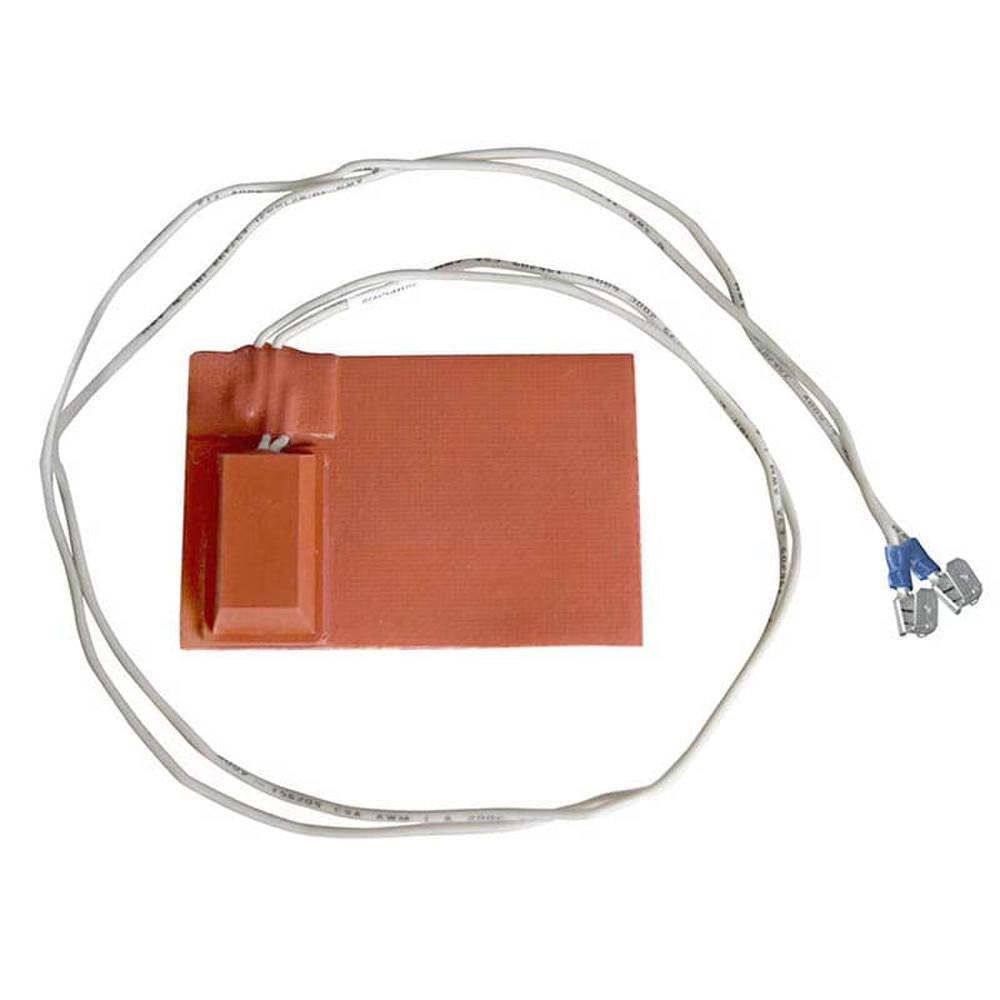

Compressor Heater

• Adhesive backed silicone pad
• 115V / 45W

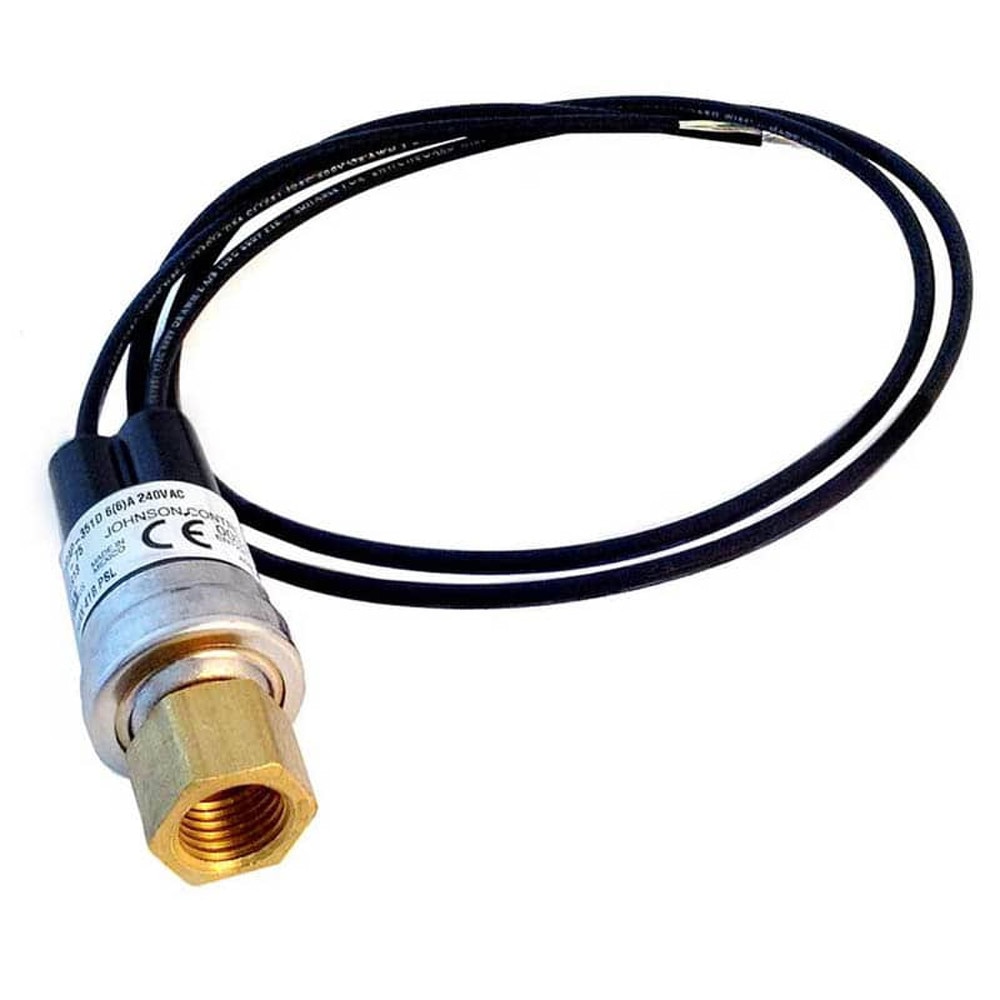

Fan Cycling Control

• Refrigerant: R-134a
• Electrical Ratings: 120V/240V, 6 FLA, 36LRA
• SPST Open-low switch action, automatic reset
• Open @ 75 PSIG / Close @ 120 PSIG
• 1/4-in. Female SAE Flare connection with Schrader valve depressor
