Line Set for CellarPro Split Large #1807

(0) No Reviews yet
Be the first to write a review
SKU: 1807 Line Set 3/8 x 5/8 x 3/4 x 25
$325.00
In Stock

Usually Ships w/i 1-2 Days

Shipping Information:

UPS / USPS / FedEx

Overview

Our 25-foot line set is designed to connect the evaporator and condensing units in Cellarpro Split 6000S/6500S refrigeration systems from 25 to 100 feet, and CellarPro 8000S/8500S refrigeration systems from 25 to 50 feet.

Details

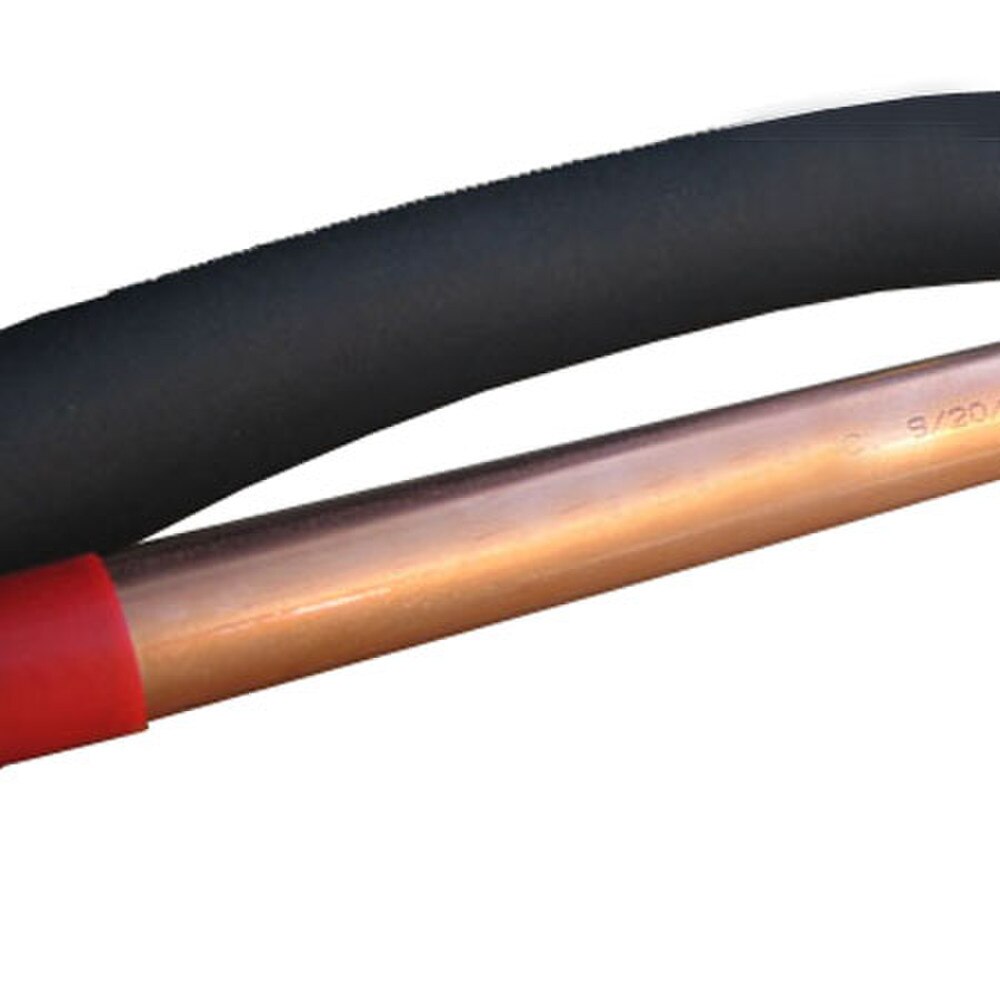

Line Set for CellarPro Split 6000S / 6500S / 8000S / 8500 (P/N 61030250L). Each set consists of a copper liquid line and an insulated copper suction line. The larger tube (5/8 ODS), called the suction line, is insulated with 3/4-inch continuous seamless insulation.

The smaller tube (3/8 ODS) is called the liquid line. Both tubes are rolled into a convenient all-in-one package for field installation.

Line sets can be brazed together with couplings to achieve lengths up to 100 feet.

Features

  • Designed to Work with CellarPro Split 6000S and 8000S Refrigeration Systems
  • 100% Pre-Fabricated for Quick, Efficient & Economical Field Installation
  • Tested to be Defect-Free in Accordance with ASTM E243
  • U.L. recognized or listed

Configurations

Refer to our Line Sizing Chart to select the proper line set for your split wine cellar refrigeration system.

Specs & Resources

Brand: CellarPro

Size: 25 Feet

Weight: 13 lbs

Warranty:
1 Year
