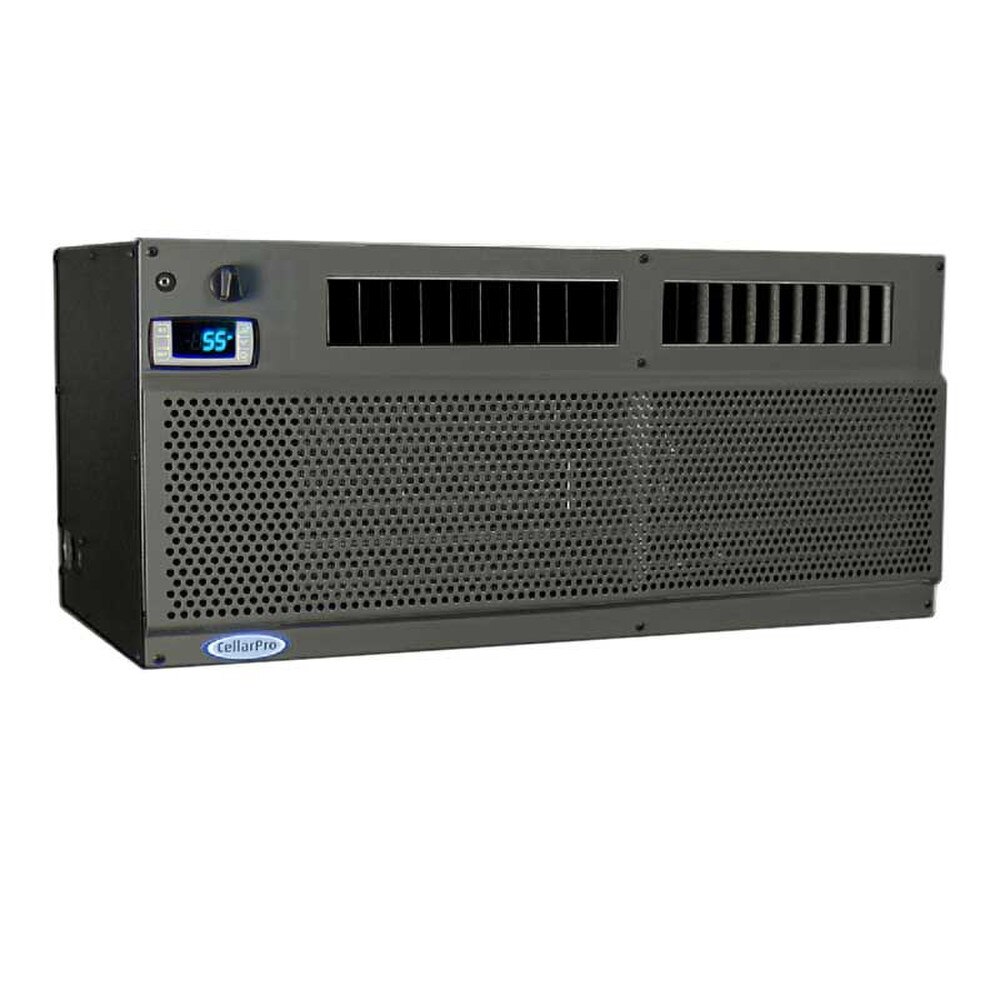

CellarPro 4000Shqc Evaporator Module #27161
Overview
CellarPro 4000Shqc Evaporator Module per the terms of CellarPro's warranty.
Details
CellarPro 4000Shqc Evaporator Module (P/N 4000Shqc Replacement Evaporator). Please submit your order below if you need to replace the evaporator on an existing CellarPro 4000Shqc split cooling unit. Your credit card will be charged for the deposit amount shown plus shipping/handling. If your replacement order includes upgrades or accessories, we will adjust your order to include the cost of these upgrades.
When you are ready to return your original unit, save and reuse the packaging from the replacement order, and do the following:
Orders for cooling units not covered by warranty will receive refunds after deducting return shipping and the time and materials necessary to repair the returned unit.
Orders for cooling units covered by warranty will receive full refunds of covered parts after deducting return shipping charges.
When you are ready to return your original unit, save and reuse the packaging from the replacement order, and do the following:
- Complete the RMA form and tape it to the top of the cooling unit
- Pack the cooling unit so that it is UPRIGHT in the box
- Attach the return shipping label to the outside of the box.
- Contact FedEx to schedule a pickup.
Orders for cooling units not covered by warranty will receive refunds after deducting return shipping and the time and materials necessary to repair the returned unit.
Orders for cooling units covered by warranty will receive full refunds of covered parts after deducting return shipping charges.
Features
Replacement 4000Shqc evaporator per the terms of CellarPro's warranty.
Configurations
Please note: We cannot process your order without a valid case number. If you are unsure of your case number, please contact us and we will be glad to assist you.
Specs & Resources
Brand: CellarPro
Size: 30 1/2w x 14 1/2d x 13 1/4h (in)
Weight: 143 lbs
Power/Rating:
115V AC / 60 Hz
Evaporator Unit Dimensions:
- 63 lbs
- 30.4w x 14.4d x 13.2h
System Amps:
- Dedicated 15-amp circuit is required to power the condensing unit.
- Shared 15-amp circuit can be used to power the evaporator.
- Startup: 40 Amps
- Unit Amp Rating: 7.9 Amps (high fan speed)
BTUH @ 55F / Evaporator Decibels
- Low Fan Speed: 3282/ 51 dbA
- Med Fan Speed: 3617 / 55 dbA
- High Fan Speed: 3938 / 63 dbA
- 1/2 Ton Nominal
Capacity: 3938 BTUH @ 55F
Sizing Table: Click here to view sizing table
