CP Small VS Duct HOOD Hot + Inline Fan #7433

CellarPro Small VS Duct HOOD Hot + Inline Fan #7433 (P/N 7433. This hot-side duct hood with inline fan is compatible with the following cooling units:

• CellarPro 3200VSi / 3200VSx
• CellarPro 4200VSi / 4200VSx

The inline fan receives switched power from the cooling unit and allows one or both hot-side openings to be ducted up to 200 equivalent feet total (100 feet per opening) using 8-inch ducting (not included).

Kit includes:

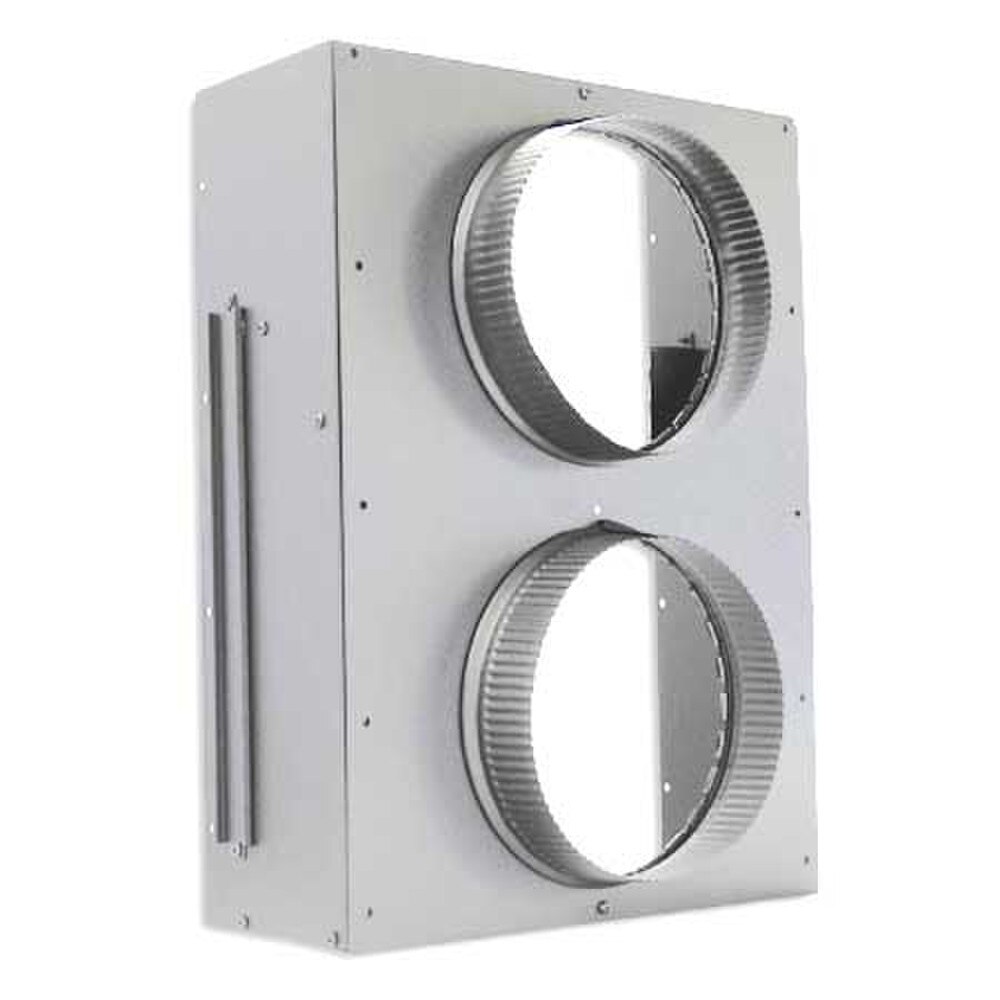

• Hot-side duct hood

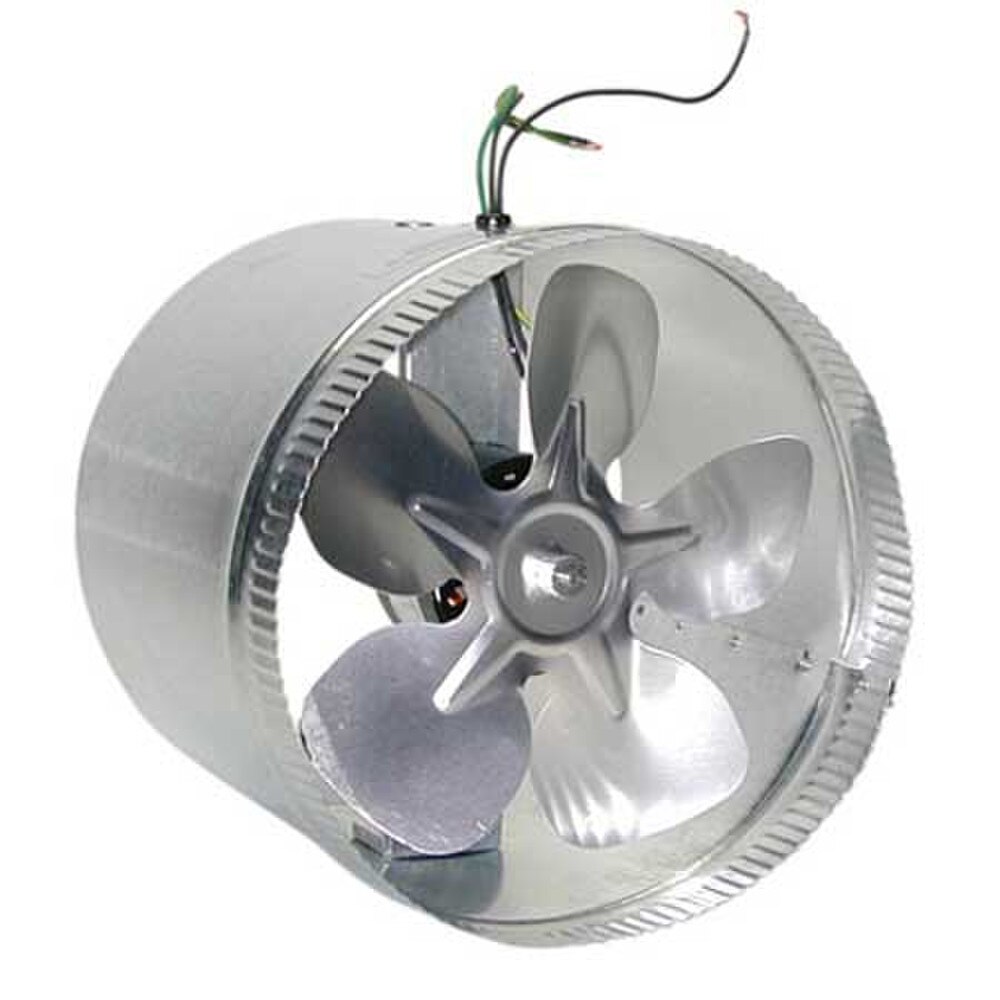

• 240 CFM inline fan with switched-power wiring
• Mounting hardware

8-inch ducting is not included.

Important notes:

• The high fan speed setting MUST be used anytime the cooling unit is ducted
• The size of the ducting must not be reduced or restricted
• Use of a custom duct hood will void the manufacturer's warranty

Designed for 3200 and 4200 VS cooling units, this custom duct hood and inline fan allow the hot air intake/exhaust to be ducted up to 200 equivalent feet (100 feet per opening).

• Attaches easily to the rear of 3200 and 4200 wine cooling units
• Provides quick access to removable air filter
• Designed for easy hook-up to 8" ducting (not included)
• Inline fan (3000RPM, 240 CFM) has a permanently lubricated, impedance protected motor
• Heavy gauge plated steel brackets
• Switched power to match the cooling unit
• One or both openings may be ducted (total of 200 equivalent feet)
• 8-inch ducting not included

Brand: CellarPro

Size: 14 1/2w x 8d x 19 3/4h (in)

Weight: 15 lbs

Power/Rating:
120V, 60Hz, 0.60 Amp

Capacity: 200 Equivalent Feet

Warranty:
1 Year

Click on one of the following links for more information:

• Rear Duct Hood Cut Sheet
• 3200 / 4200 + Combined Cut Sheets (As Ducted)
• Framing Diagram
• Installation Diagrams
• Ducting Installation Best Practices

The depth of the hood includes 2 1/4 (in) for the 8-inch dia. duct adapters. The hood is designed to slide over the rear of the cooling unit, and will overlap the cooling unit by approximately 1 inch.
