CP Large VS Duct HOOD Hot + Inline Fan #27350

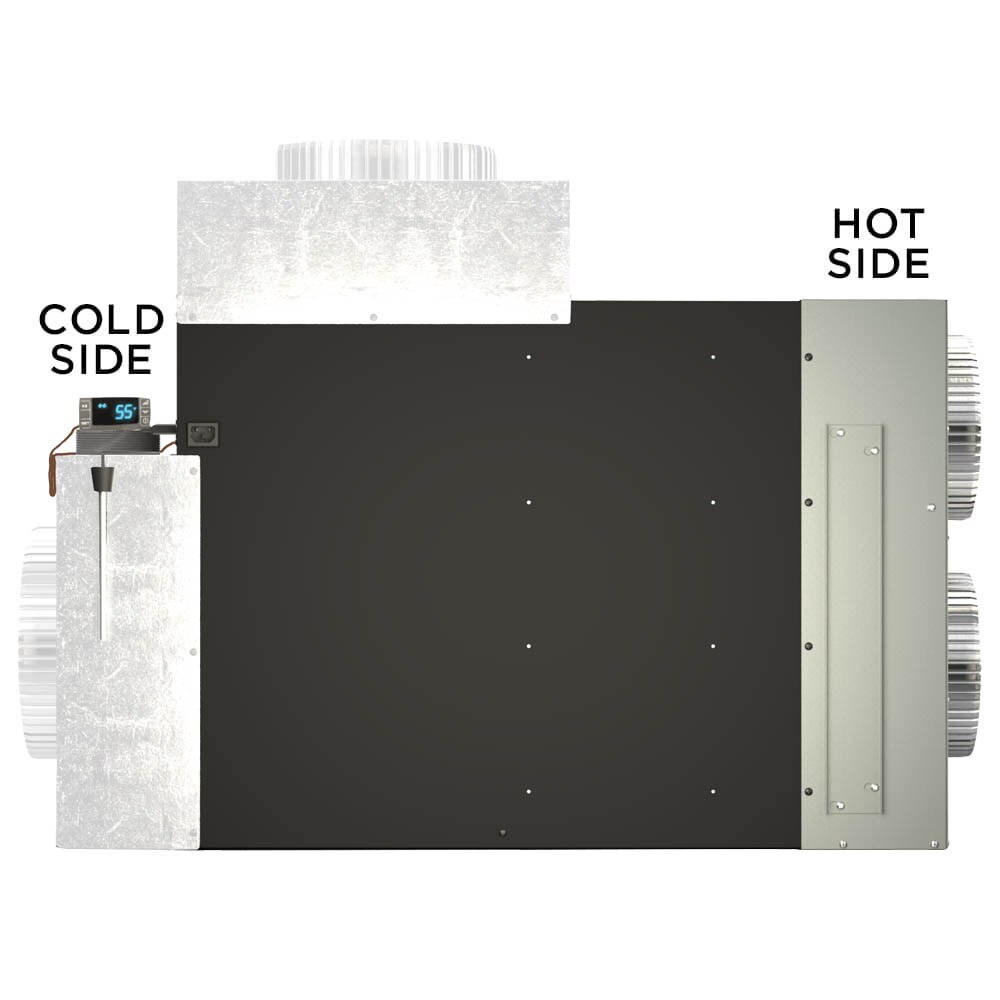

CP Large VS Duct HOOD Hot + Inline Fan (P/N 27350). This hot-side duct hood with inline fan is compatible with the following cooling units:

• CellarPro 6200VSi / 6200VSx
• CellarPro 8200VSi / 8200VSx

The inline fan receives switched power from the cooling unit and allows one or both hot-side openings to be ducted up to 100 equivalent feet total (50 feet per opening) using 8-inch ducting (not included).

Kit includes:

• Hot-side duct hood with 8-inch collar adapter plate
• 240 CFM inline fan with switched-power wiring
• Mounting hardware

8-inch ducting is not included.

Important notes:

• The high fan speed setting MUST be used anytime the cooling unit is ducted
• The size of the ducting must not be reduced or restricted
• Use of a custom duct hood will void the manufacturer's warranty

Custom rear duct hood and inline fan with switched power for CellarPro 6200 / 8200 VS cooling units. With this kit, the hot air intake/exhaust each can be ducted up to 100 equivalent feet (50 feet per opening).

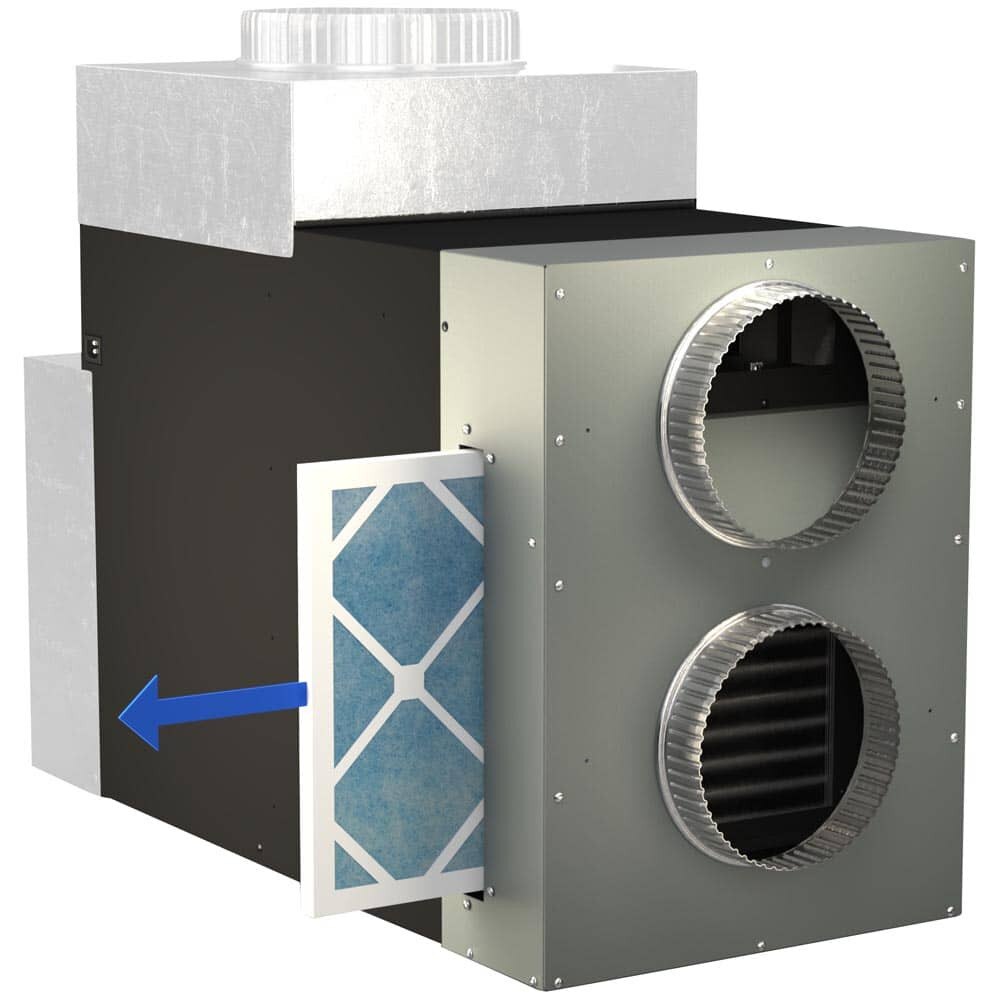

• Attaches easily to the rear of 6200 and 8200 wine cooling units
• Provides quick access to removable air filter
• Designed for easy hook-up to 8" ducting
• Inline fan (3000RPM, 240 CFM) has a permanently lubricated, impedance protected motor
• Heavy gauge plated steel brackets
• Switched power to match the cooling unit
• One or both openings may be ducted (total of 100 equivalent feet)
• 8-inch ducting not included
• Cold-rolled, thick-gauge steel


Brand: CellarPro

Size: 16 1/4w x 8.0625d x 22h (in)

Weight: 30 lbs

Capacity: 100 Equivalent Feet

Warranty:
1 Year
