Networkable Tstat Upgrade - Generic Tstat #27346

Networkable Thermostat Upgrade - Generic Tstat (P/N 27346). Use this upgrade to connect to networkable thermostats (sold separately) via 24V thermostat wiring, and control your CellarPro cooling unit through the Wi-Fi enabled thermostat.

The CellarPro cooling unit includes 10 feet of low voltage 4-lead 18-gauge wiring to connect to the thermostat. If you'd like more than 10 feet of wire, let us know when you checkout in the "special instructions" field. We charge $0.50 per foot after the first 10 feet.

The default for the remote display wiring is to exit from the front of the cooling unit, except for the 1800XTSr which can exit from the right or the rear. To change where the wire exits, select from the options provided.

Unless it includes a removable probe, most thermostats will need to be installed inside the cellar, so that the temperature conditions can be monitored.

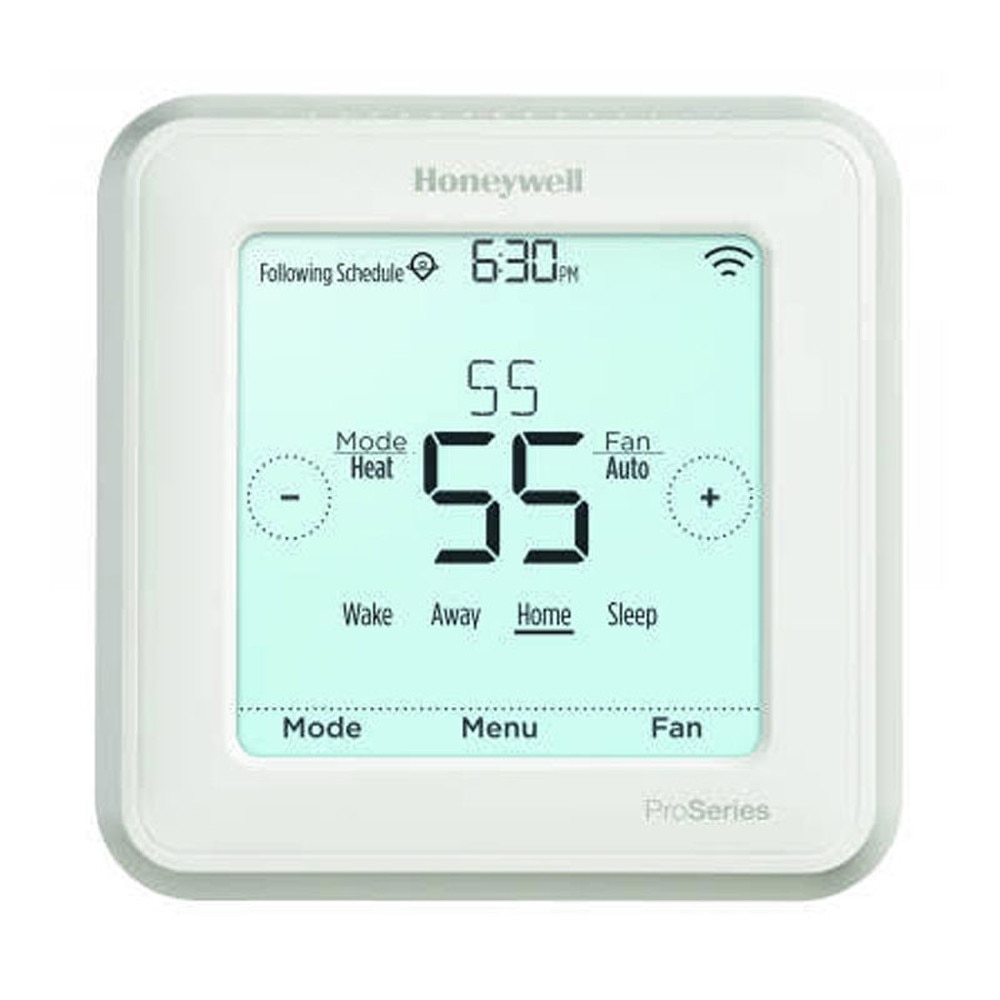

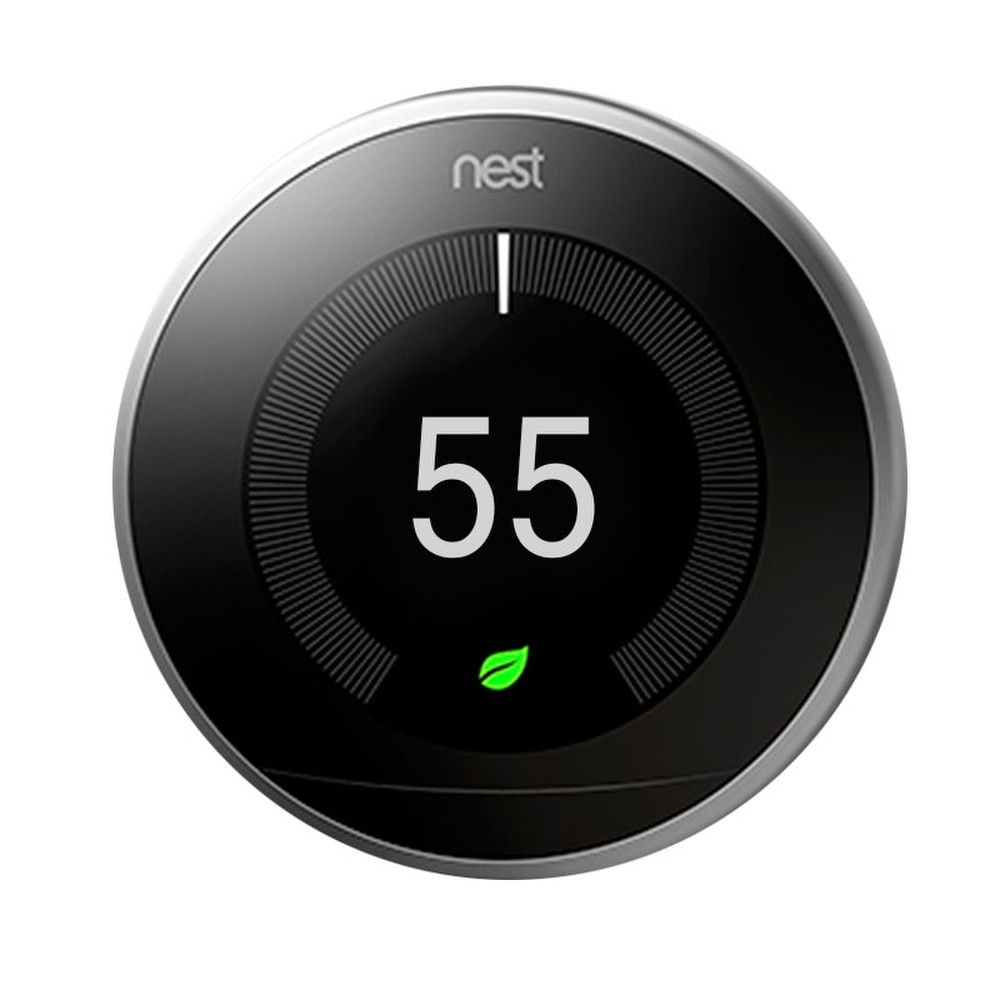

In our testing, we used Nest Model T3016US and Honeywell Model TH6220WF2006U thermostats. We don't recommend using the Nest thermostats, because multiple customers have reported serious problems using these products.

Networkable thermostats typically offer the following features:

• Monitor and manage your cooling unit via WiFi (requires secure customer internet access)
• Access your cooling unit via web portal
• Many thermostats also offer smartphone apps
• Set up alerts and service reminders

Please note:

The networkable thermostat upgrade is compatible with the following CellarPro models:

• All VS Series cooling units
• All Wall-Mount and Recessed Ceiling Mount cooling units
• Air Handler cooling units (AH12Sx, AH18Sx and AH24Sx cooling units already include the upgrade)
• You should choose a Thermostat that can be programmed with a minimum temperature "differential" of 3 (ideally 4) and a minimum "compressor protection mechanism" (aka "compressor off time" ) of 5
• Except for our Air Handler cooling units, the networkable thermostat upgrade should not be used with cooling units that will be ducted on the cold-side
• The bottle probe is not compatible with the networkable thermostat upgrade
• In this kit, CellarPro's FON feature (which increases humidity inside the cellar and extends the life of the cooling unit) is preset at the factory and is not configurable
• The upgrade must be purchased at the same time as the cooling unit. It cannot be added after the cooling unit has shipped
• For service and support, contact the manufacturer of the thermostat. CellarPro does not provide support for third-party thermostats.

Use our networkable thermostat upgrade kit to connect listed CellarPro cooling units to generic Wi-Fi enabled thermostats (sold separately).

Networkable thermostats typically offer the following features:

• Monitor and manage your cooling unit via WiFi (requires secure customer internet access)
• Access your cooling unit via web portal
• Many thermostats also offer smartphone apps
• Set up alerts and service reminders

Brand: CellarPro

Weight: 1 lbs

Installation Guidelines for Networkable Display Control
Networkable Thermostat Overview
