Compare CellarPro Air Handler vs Competitors

Manufacturer
Model

CellarPro

Air Handler 6500 Split System

Wine Guardian

1/2 Ton DO50

Pricing

$5,650-$6,295

$4,950

CellarPro Design

- Choice of Configurations: Horizontal, Vertical, Split Indoor, Split Outdoor
- Advanced, Multi-Feature Control Panel
- Air and Liquid Temp Sensor is Independent from Control Panel
- Variable-Speed Fans with Super-Quiet and Max Performance Settings - Condenser & Evaporator
- High-Ambient Configuration is Standard
- Plug-In 110V Power for 1/2 and 1 Ton Systems
- Includes All Duct Collars
- Multiple Access and Drain Knockouts
- Tested and Certified to UL Standards
- Serviceable in the Field
- Made in the USA
- Ships in 2-3 Days

Wine Guardian Design

- Horizontal Configuration Only
- Basic Temperature Control Panel
- Air Temp Sensor is Embedded in Control Panel
- Single-Speed Fans
- High-Ambient Configuration is Standard
- Plug-In 110V Wiring for 1/4 & 1/2 Ton Systems
- Plug-In 220V Wiring for 1 and 2 Ton Systems
- Includes All Duct Collars
- Tested and Certified to UL Standards
- Serviceable in the Field
- Made in the USA
- Ships in 1 Week



BTUH@ 55°F

Low Fan Speed 4923
Medium Fan Speed 5350
High Fan Speed 5771

5300

Advanced Features
- Recycled Humidity Control

Evaporator Specs
- Fan Design
- Fan Speed
- Ducting
- Serviceable in the Field
- Wiring

Centrifugal Backward Inclined
Variable Speed
100' total equivalent length
Schraeder Access Valve
Plug In Power

Centrifugal Backward Inclined
Fixed Speed
25' per length of ductwork (50' max)
Schraeder Access Valve
Plug In Power

Condenser Specs
- Fan Design
- Fan Speed
- Ducting
- Serviceable in the Field
- Wiring
- High-Ambient

Centrifugal Backward Inclined
Variable Speed
100' total equivalent length
Schraeder Access Valve
Plug In Power
Oversized Fan & Coils - Standard

Centrifugal Backward Inclined
Fixed Speed
25' per length of ductwork (50' max)
Schraeder Access Valve
Plug In Power
Oversized Fan & Coils - Standard

Super-Quiet Operation
- Variable Speed Fans - can be modulated to balance the unique environmental conditions, length of ducting and noise requirements of each project.

Evaporator Decibels (Ducted)

Low Fan Speed 47
Medium Fan Speed 51
High Fan Speed 59

58

Condensing Unit Decibels (Ducted)

Low Fan Speed 52
Medium Fan Speed 57
High Fan Speed 62

58

Airflow (CFM)

Low Fan Speed 375
Medium Fan Speed 475
High Fan Speed 625

430

Split System
- Indoor or Outdoor

Tested and Certified
- UL Standards

Customer Service
- Warranty

2 Years, Parts & Labor
5 Years, Compressor

2 Years, Parts & Labor

Horizontal Unit
- Dimensions W x D x H "

37.2 x 18.6 x 19.3

39 x 22 x 14

Vertical Unit
- Dimensions W x D x H "

18.6 x 18.6 x 37.9

Split System Unit
- Dimensions W x D x H "
- Evaporator or Condenser

18.6 x 18.6 x 18.3

Power Specs
- Power
- Circuits

Plug-In 115V AC / 60 Hz
20-Amp + 15-Amp Dedicated

Plug-In 115V AC / 60Hz
15-Amp Dedicated Circuit

Split System Wiring

Electronic Control
Valve Control

NM

Summary

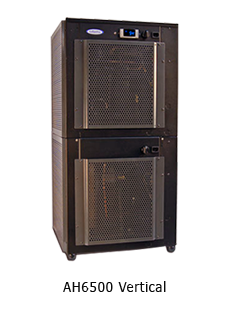

CellarPro Air Handler ducted refrigeration systems combine multiple configurations, oversized components and powerful variable-speed fans for outstanding performance and super-quiet operation relative to the competition. With oversized fans and coils, CellarPro Air Handlers are designed to handle high-ambient conditions out of the box, from -20°F (with low ambient kit) to 110°F.

CellarPro Air Handlers offer maximum installation flexibility, with a choice of configurations: Horizontal stacked, Vertical stacked or Split.

Variable-speed fans can be modulated to balance the unique environmental conditions, length of ducting and noise requirements of each project.

Power is provided via 110V with two plug-in cords, one for a 20-amp and one for a 15-amp dedicated circuit.

Duct collars, liquid/air remote sensor and high-ambient components are included standard. Integrated heater, integrated humidification, low ambient kits and remote control displays are available at additional cost.

These units can maintain temperatures 55-60 degrees colder than the ambient temperature.

Offered in 1/2 and 1 Ton (nominal) sizes

Wine Guardian ducted systems are offered exclusively in a self-contained horizontal configuration.

Power is provided via 110V with one plug-in cord requiring a 15-amp dedicated circuit.

Remote temperature control is included standard. Duct collars, integrated heater, integrated humidification, high-ambient and low-ambient kits are available at additional cost.

These units cannot maintain temperatures that are more than 30°F colder than the ambient temperature.

Offered in 1/4,1/2, 1 and 2 Ton (nominal) sizes
