CellarPro 1800H Houdini Duct HOOD COLD SIDE #35618
Overview
Allows CellarPro 1800H Houdini cooling units to be ducted up to 50 equivalent feet (25 feet per duct) on the or cold using 8-inch ducting (sold separately) with no reductions from start to finish .
Details
CellarPro 1800H Houdini Duct HOOD COLD SIDE (P/N 35618). These duct hoods are designed for use with CellarPro's 1800H Houdini cooling unit, as follows:
Please note:

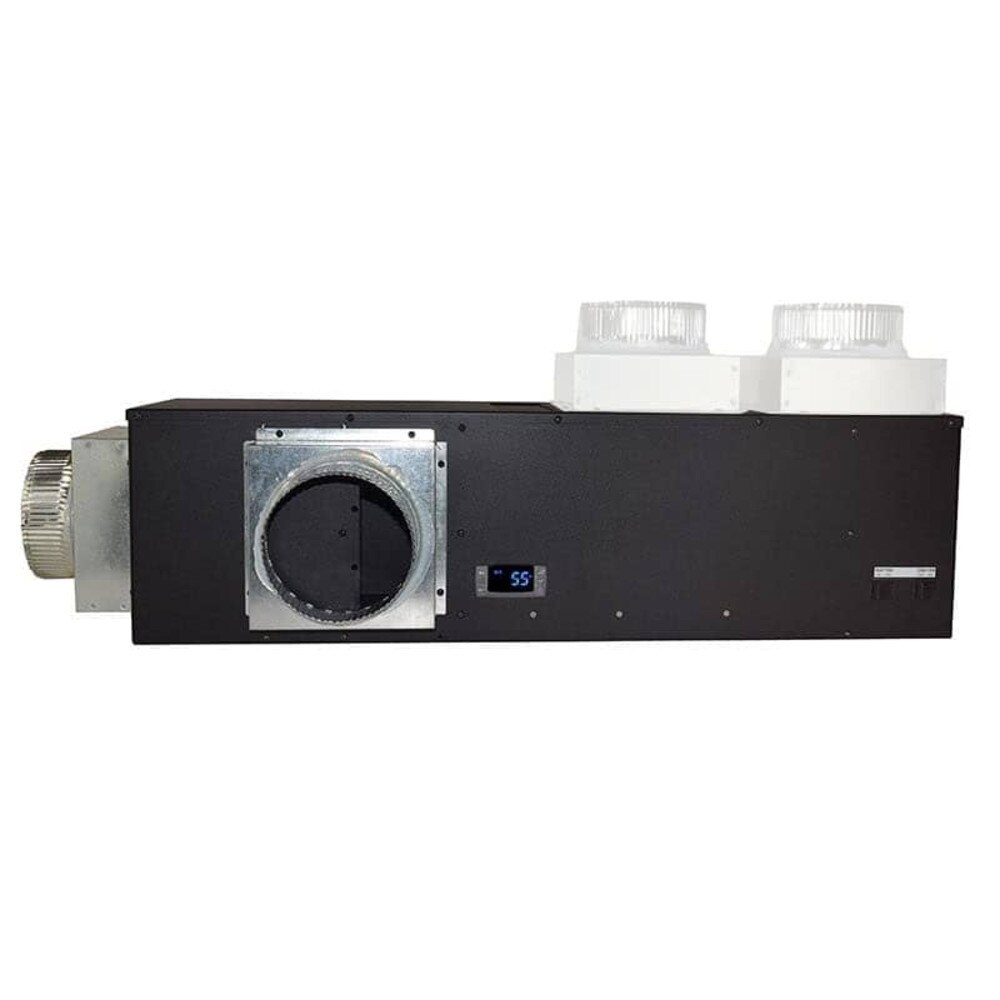

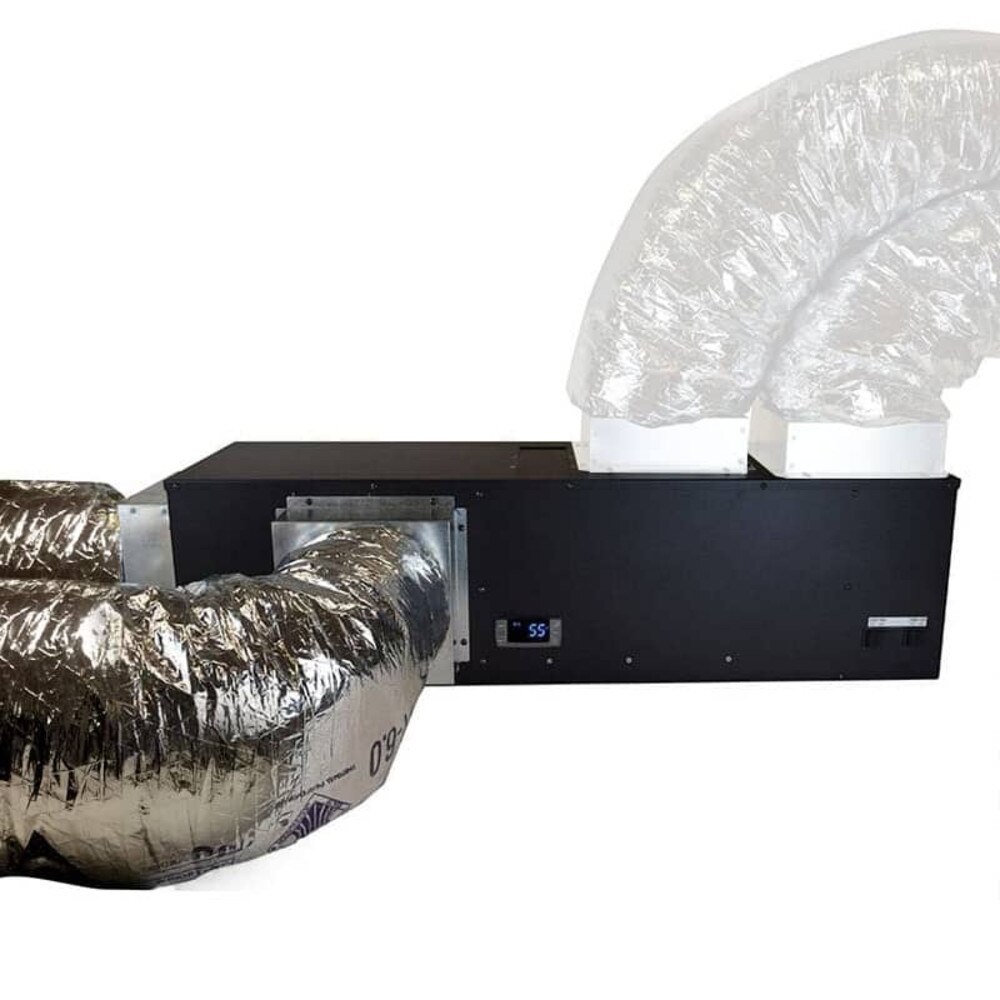

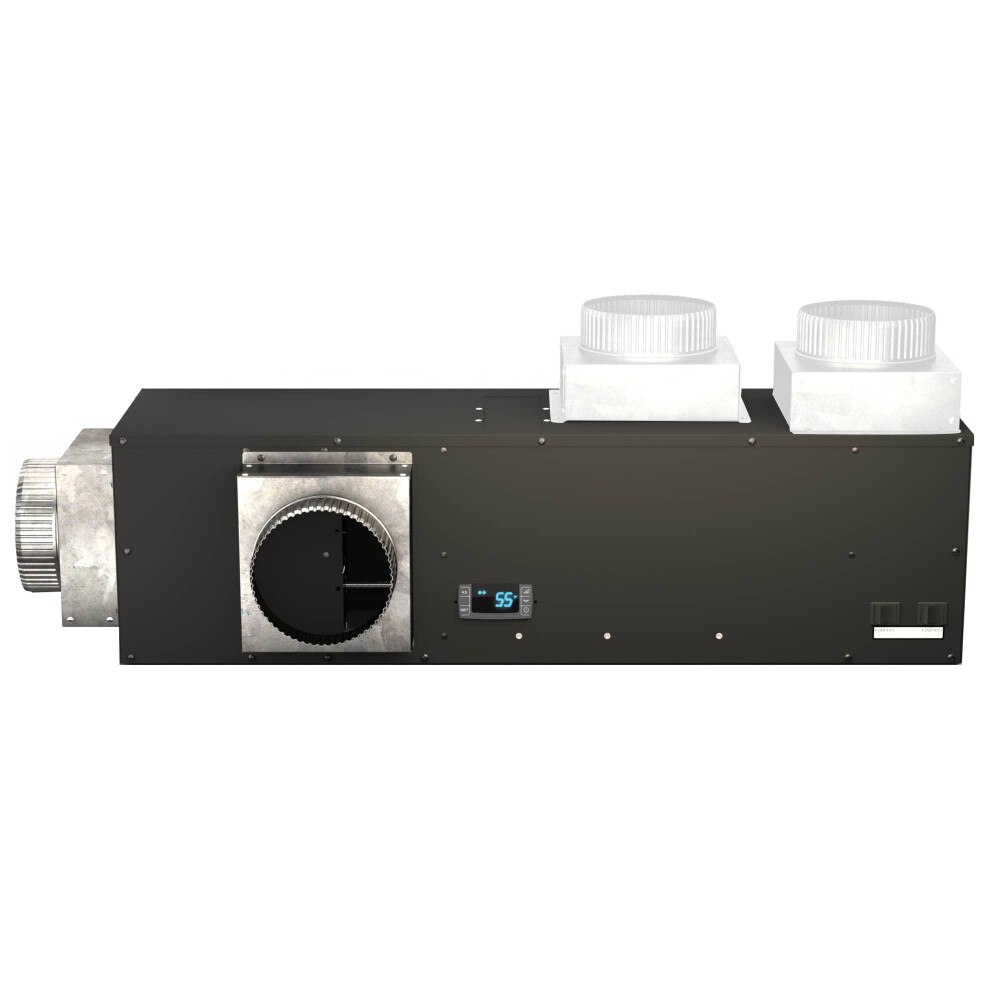

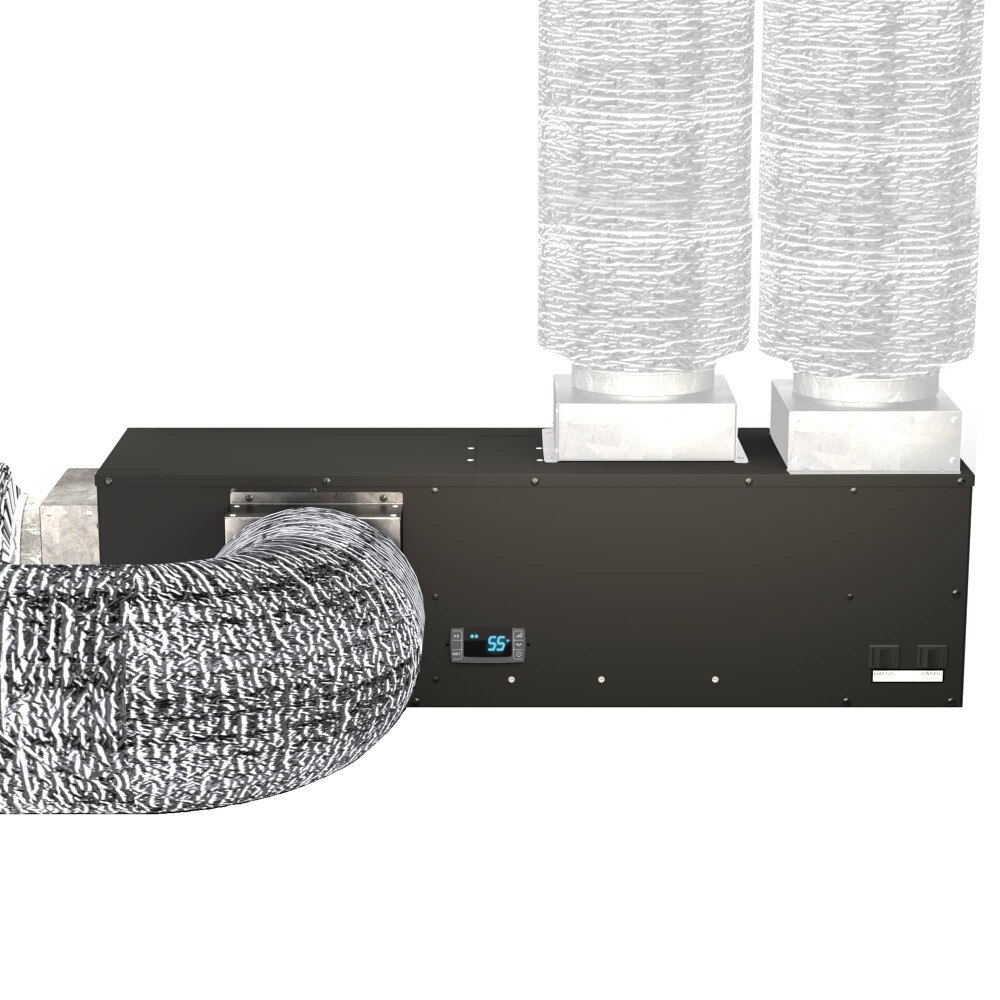

- Attach to the cold side airflows (intake and exhaust), allowing the cooling unit to be located remotely (ie away from the cellar), as follows:
- Cold air return: must be ducted from the left side (as shown)

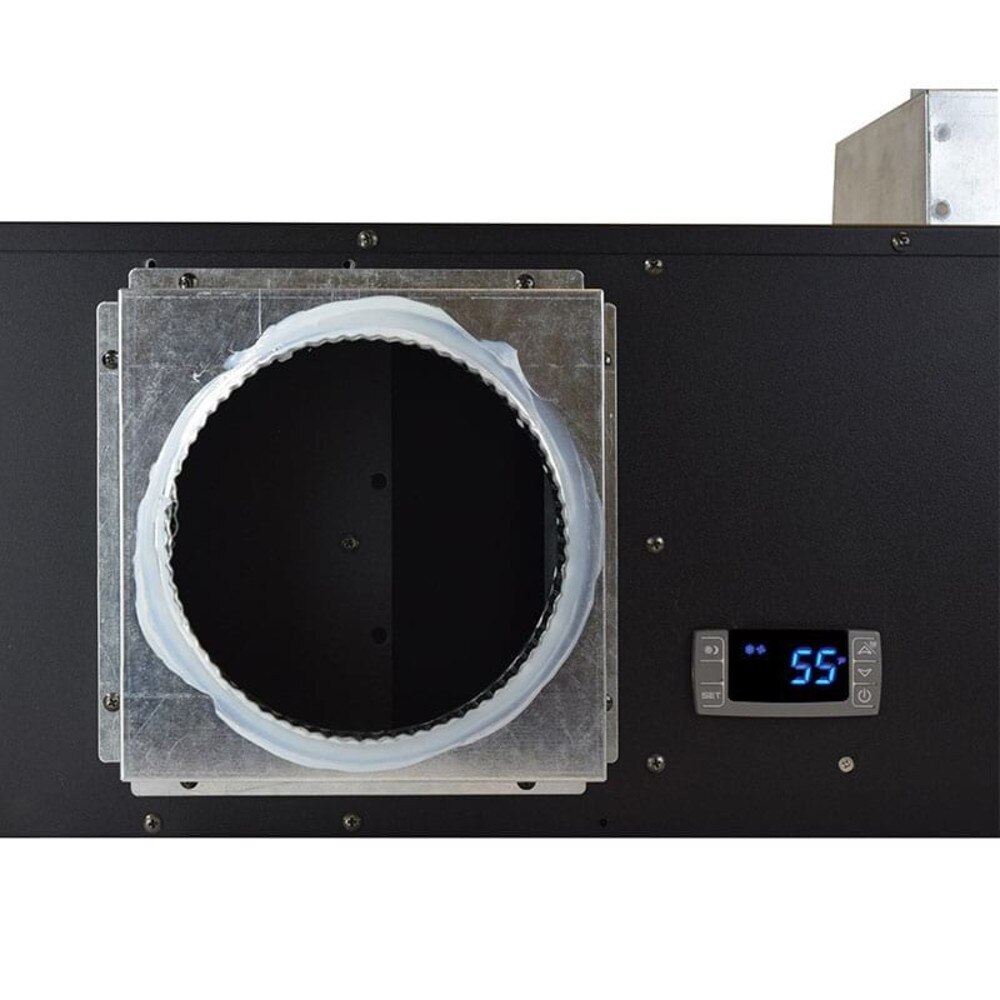

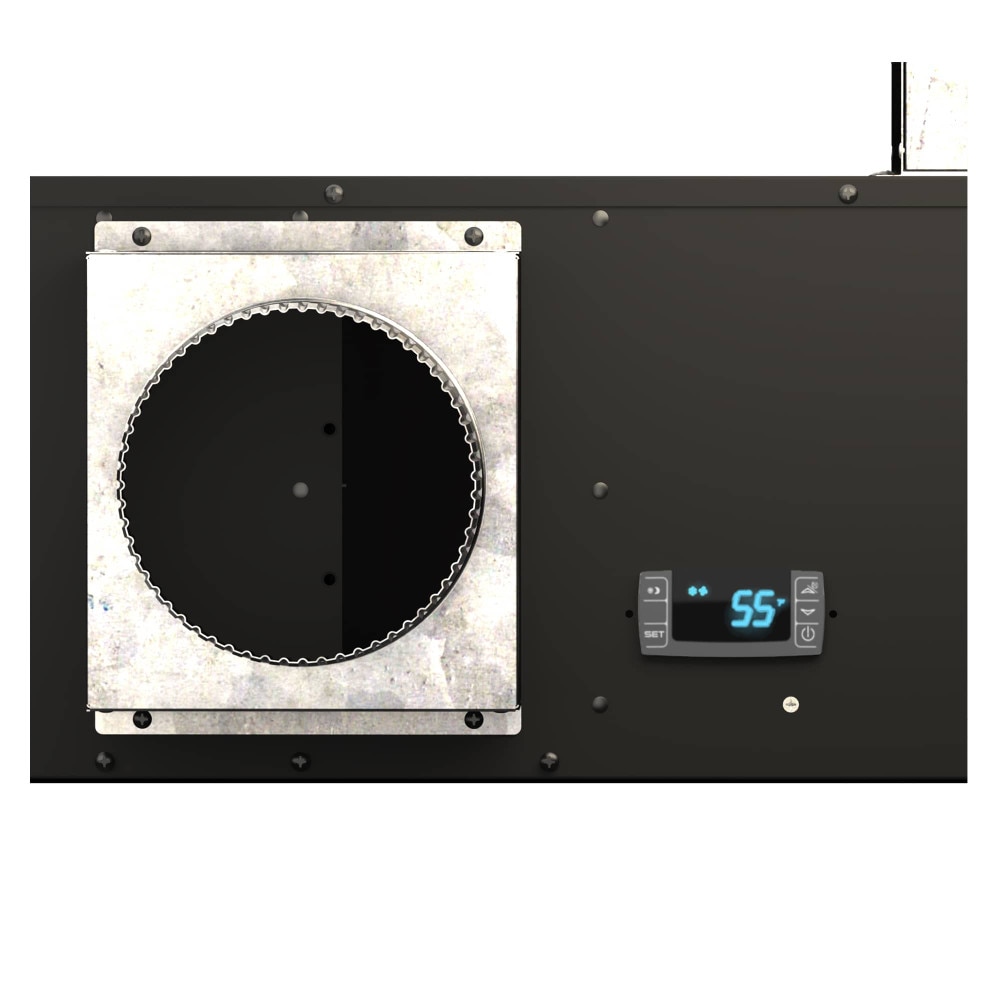

- Cold air exhaust: must be ducted from the front (as shown)
Please note:
- Insulated flex ducting is not included with this bundle. If you'd like to purchase the bundle WITH ducting, please order item #35619 instead
- Ducting must be 8-inch diameter or equivalent from start to finish
- Ducting must be insulated to R-6 or better
- We recommend adding our remote display/control unit #1603 (sold separately)
- The high fan speed must be used when ducting this cooling unit
Features
- Designed to work with cold-side airflow openings on the 1800H Houdini cooling unit
- Requires 8-inch insulation (R-6 or better), not included
Configurations
Please refer to the following resources before purchasing this kit:
- This kit may only be used in conditioned, low humidity environments. Use our Low RH vs High RH Duct Kit Chart to determine whether this kit is appropriate for your installation.
- Use our ducting heat loss table and our duct correction table to correctly adjust the sizing of your cooling unit, because ducting will add to the thermal load of the cellar.
Specs & Resources
Brand: CellarPro
Size: 5 3/4w x 5 3/4d x 9 3/4h
Weight: 4 lbs
Capacity: 50 Equivalent Feet
Warranty:
1 Year

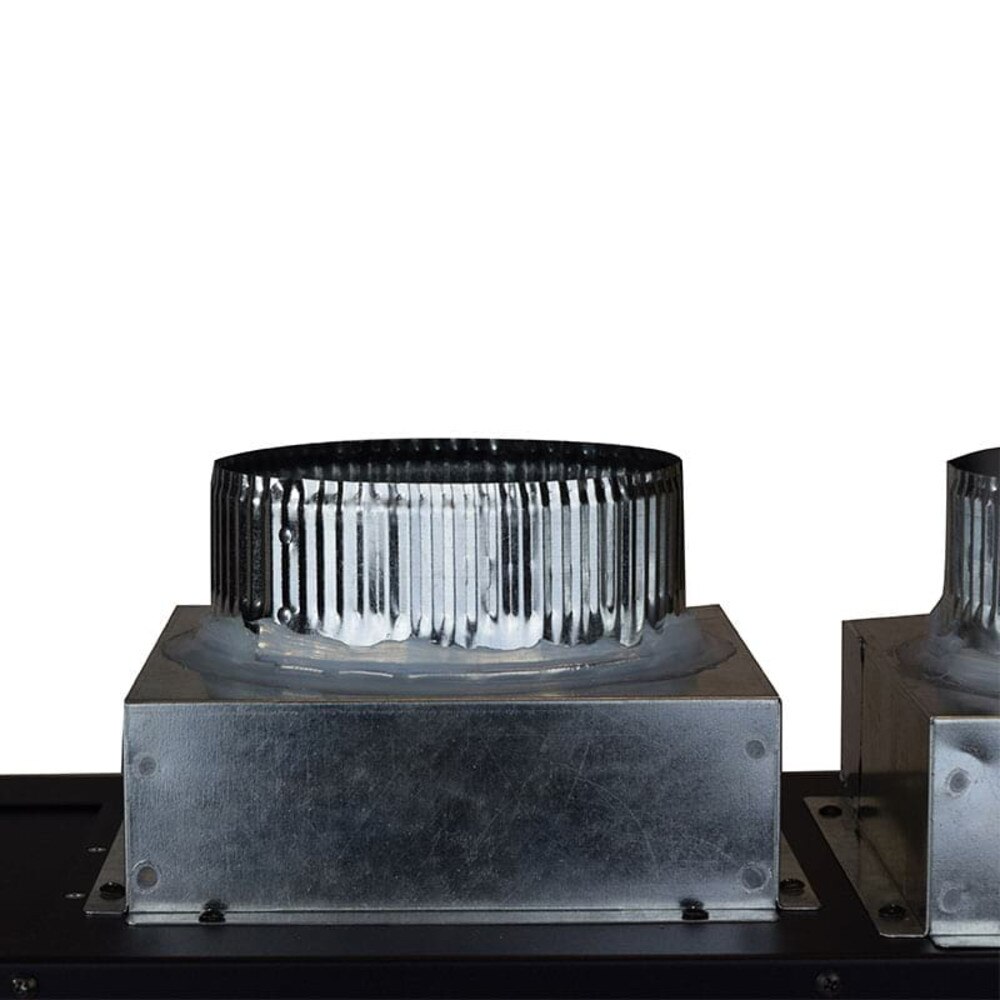

The height of the hood (2 1/2 (in)) plus the height of the 6-inch duct collars (2 1/4 (in)) is 4 3/4. The hood is designed to attach to the cooling unit for use with the cold-side airflow. Click on one of the following links for more information:
