CellarPro 3400H Houdini Duct HOOD COLD SIDE #36024

Allows CellarPro 3400H Houdini cooling units to be ducted up to 100 equivalent feet (50 feet per duct) on the or cold using 8-inch ducting (sold separately) with no reductions from start to finish .

CellarPro 3400H Houdini Duct HOOD COLD SIDE (P/N 36024). These duct hoods are designed for use with CellarPro's 3400H Houdini cooling unit, as follows:

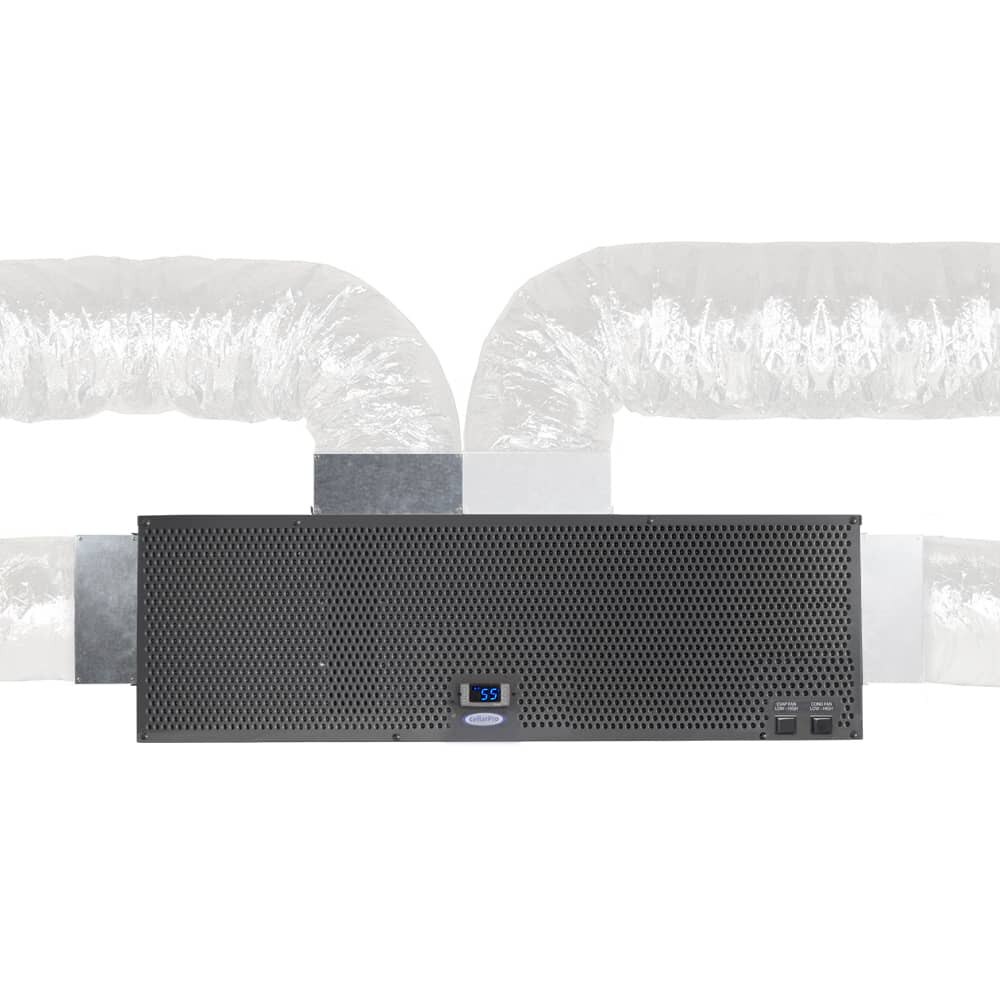

• Attach to any two cold side airflows (one intake and one exhaust), allowing the cooling unit to be located remotely (ie away from the cellar), as follows:
  • Cold air return: may be ducted from the left, bottom, front, or top
  • Cold air exhaust: may be ducted from the bottom, front, or top

Each bundle includes 2 hoods (1 for intake and 1 for exhaust side on the cold side)

Please note:

• Insulated flex ducting is not included with this bundle. If you'd like to purchase the bundle WITH ducting, please order item #36025 instead
• Ducting must be 8-inch diameter or equivalent from start to finish
• Ducting must be insulated to R-6 or better
• We recommend adding our remote display/control unit #1603 (sold separately)
• The high fan speed must be used when ducting this cooling unit

The maximum length of ducting is 100 equivalent feet on the hot side and 100 equivalent feet on the cold side.

• Designed to work with cold-side airflow openings on the 3400H Houdini cooling unit
• Requires ducting 8-inch diameter, insulated to R-6 or better (not included)

Brand: CellarPro

Size: 9 1/2 w x 10 3/4 d x 6 3/8 h (inches)

Weight: 4 lbs

Capacity: 50 Equivalent Feet

Warranty:
1 Year

The height of the hood (4 1/8 inches) plus the height of the 8-inch duct collars (2 1/4 inches) is 6 3/8 inches. The hood is designed to attach to the cooling unit for use with the cold-side airflow. Click on one of the following links for more information:

• Owner's Manual
• Duct Hood Drawings - As Ducted
• Ducting Installation Best Practices
• Configuration Options
