CP 3400H Houdini Duct HOOD Hot + Inline Fan #36031
Overview
Allows the hot side of CellarPro 3400H Houdini cooling units to be ducted up to 200 equivalent feet (100 feet per duct) hot using 8-inch ducting (sold separately) with no reductions from start to finish .
Details
CellarPro 3400H Houdini Duct HOOD HOT SIDE with Inline Fan Factory Installed (P/N 36031). These duct hoods are designed exclusively for the hot side of CellarPro's 3400H Houdini cooling unit, as follows:
- Attach to the hot side airflows (intake and exhaust), allowing the cooling unit to push its exhaust and/or pull its fresh air from remote locations (but not from the cellar), mitigating tight installations with insufficient space around the cooling unit, as follows:

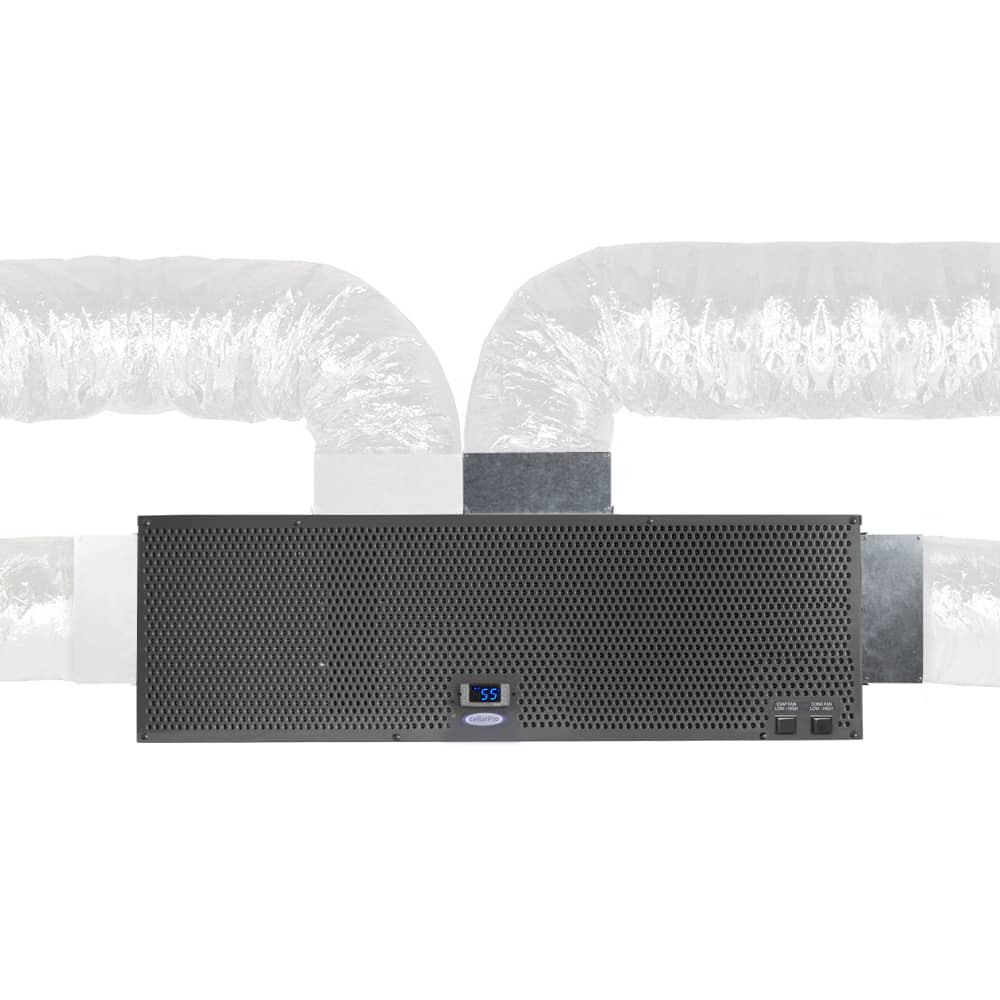

- Fresh air intake: can be ducted from the top (shown), the front, or the right side of the cooling unit
- Hot air exhaust: can be ducted from the top (shown), the front, or the rear of the cooling unit
Each bundle includes:
- 2 hoods (1 for intake and 1 for exhaust)
- Ducting and grills sold separately

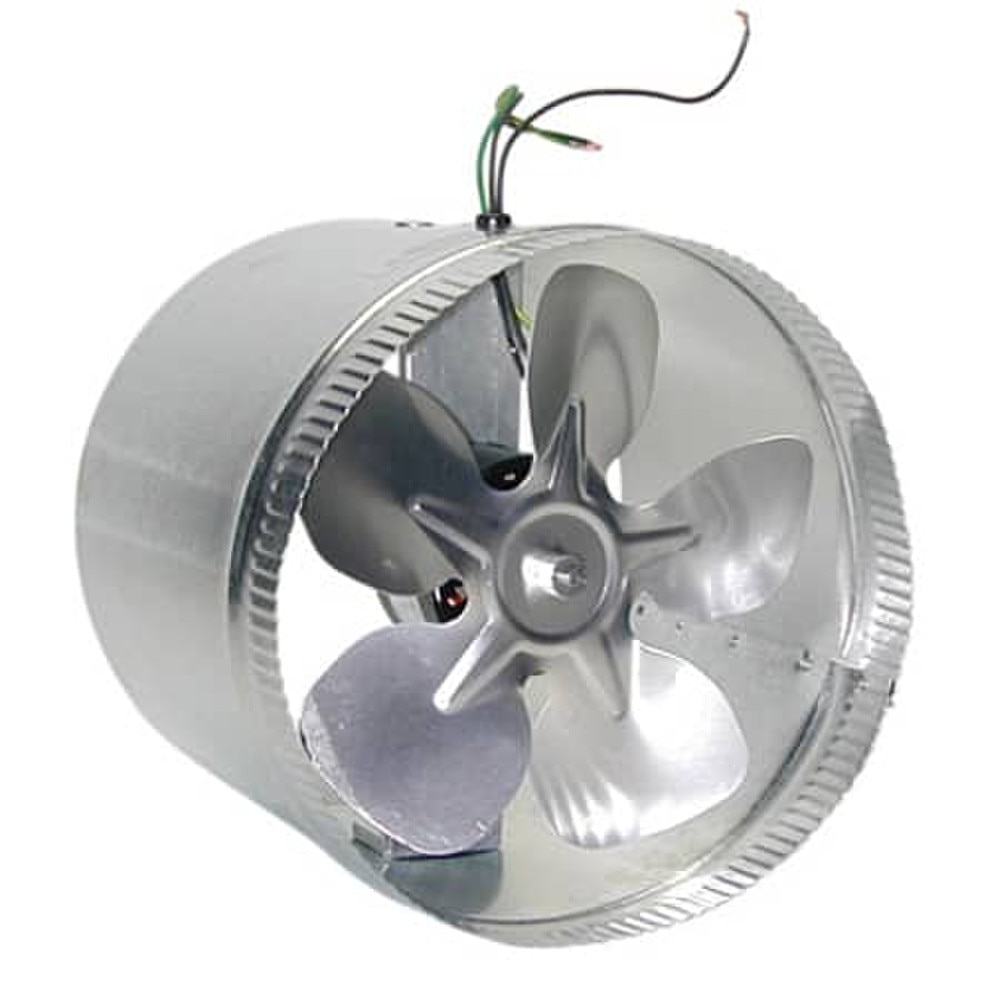

- 1 inline fan with wiring for switched power from the cooling unit
Please note:
- Insulated flex ducting is not included with this bundle. If you'd like to purchase the bundle WITH ducting, please order item #36027 instead
- Ducting must be 8-inch diameter or equivalent from start to finish
- The high fan speed must be used when ducting our cooling unit
The maximum length of ducting is 200 equivalent feet with the fan.
Features
- Designed to work with hot-side airflow openings on the 3400H Houdini cooling unit
- Requires ducting 8-inch diameter (not included)
- Includes 8' Inline fan with wiring for switched power
Specs & Resources
Brand: CellarPro
Size: 9 1/2 w x 10 3/4 d x 6 3/8 h (inches)
Weight: 4 lbs
Power/Rating
115V, 60 Hz, 0.6 amps (Inline Fan)
Capacity: 200 Equivalent Feet
Warranty:
1 Year
The height of the hood (4 1/8 inches) plus the height of the 8-inch duct collars (2 1/4 inches) is 6 3/8 inches. The hood is designed to attach to the cooling unit for use with hot-side airflows. Click on one of the following links for more information:
Options & Upgrades
Filters & Grills
- Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.
