CellarPro 3400H Houdini Duct KIT HOT #36027

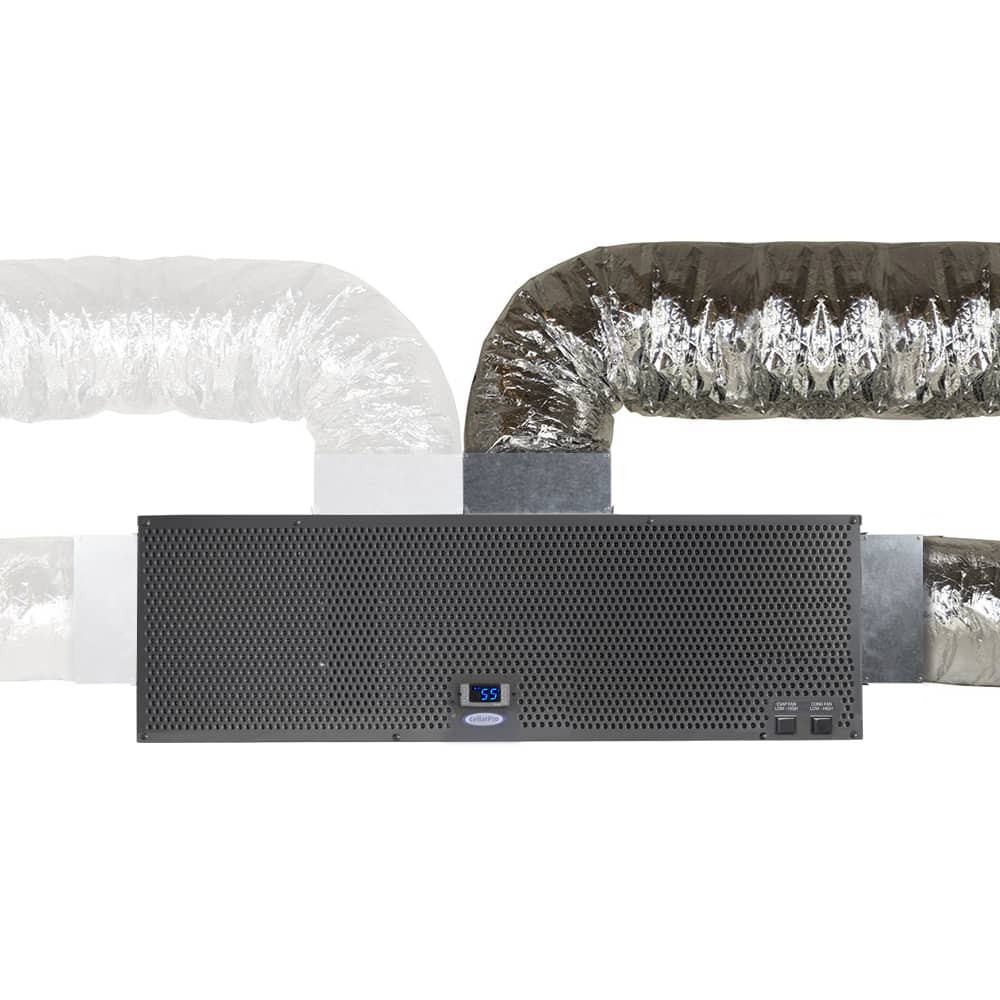

CellarPro 3400H Houdini Duct KIT HOT (P/N 36027). This duct kit is designed for the hot-side intake and exhaust of CellarPro 3400H Houdini cooling units.

The hot-side intake and exhaust can be ducted up to 100 equivalent feet total (50 feet per duct) using 8-inch ducting with no reductions from start to finish.

Kit includes:

• Two hot-side 8-inch duct hoods

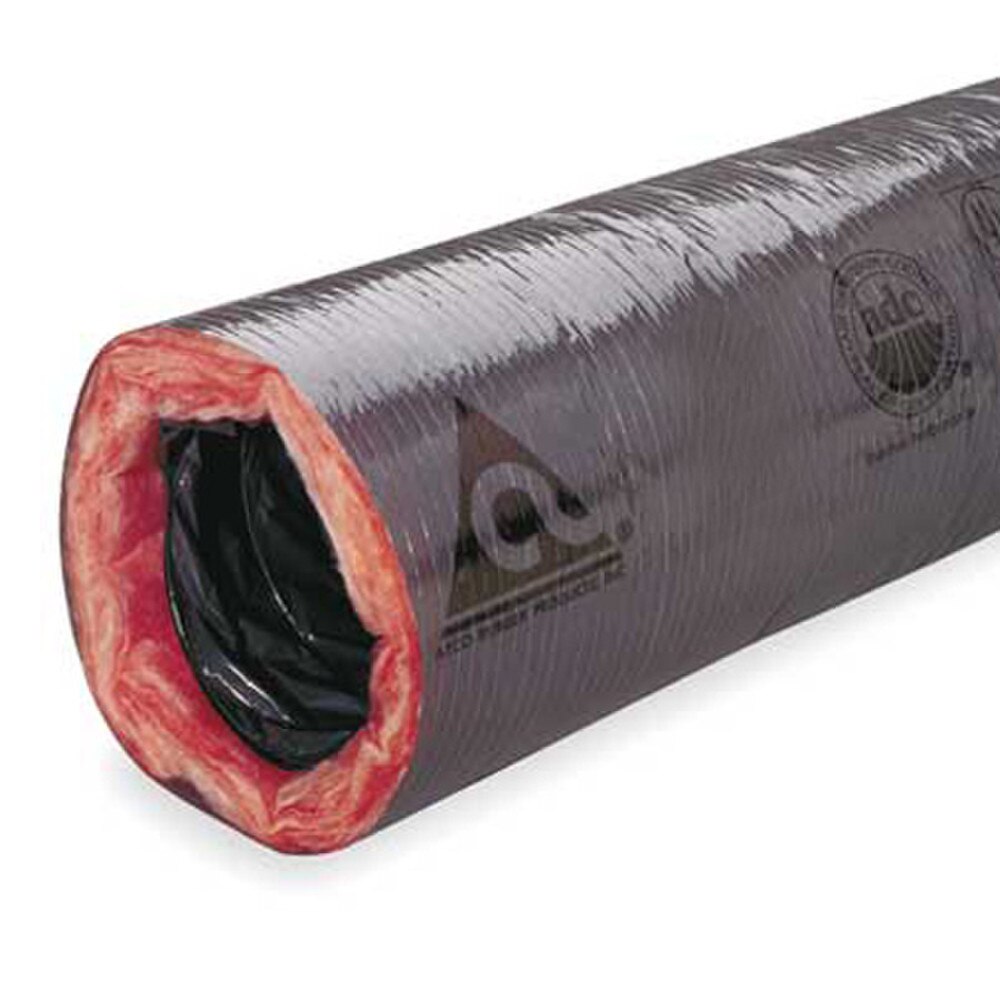

• 50 feet (2 x 25 feet) of 8-inch R-6 insulated ducting
• Mounting hardware

Important notes:

• The high fan speed setting MUST be used anytime the cooling unit is ducted
• The size of the ducting must not be reduced or restricted
• Use of a custom duct hood will void the manufacturer's warranty

Allows CellarPro 3400H Houdini cooling units to be ducted up to 100 equivalent feet (50 feet per duct) on the hot side using 8-inch ducting with no reductions from start to finish.

• Includes 50 feet of 8-inch insulated ducting (R-6)
• Designed to work with hot-side airflow openings on the 3400H Houdini cooling unit

Brand: CellarPro

Size: 9 1/2 w x 10 3/4 d x 6 3/8 h (inches)

Weight: 26 lbs

Capacity: 100 Equivalent Feet

Warranty:
1 Year

The height of the hood (4 1/8 inches) plus the height of the 8-inch duct collars (2 1/4 inches) is 6 3/8 inches. The hood is designed to attach to the cooling unit for use with any of the airflows - hot or cold, intake or exhaust. Click on one of the following links for more information:

• Owner's Manual
• Duct Hood Drawings - As Ducted
• Ducting Installation Best Practices
• Configuration Options

Filters & Grills

• Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.
