VS Low Ambient Fan Cycling Control Installation Instructions

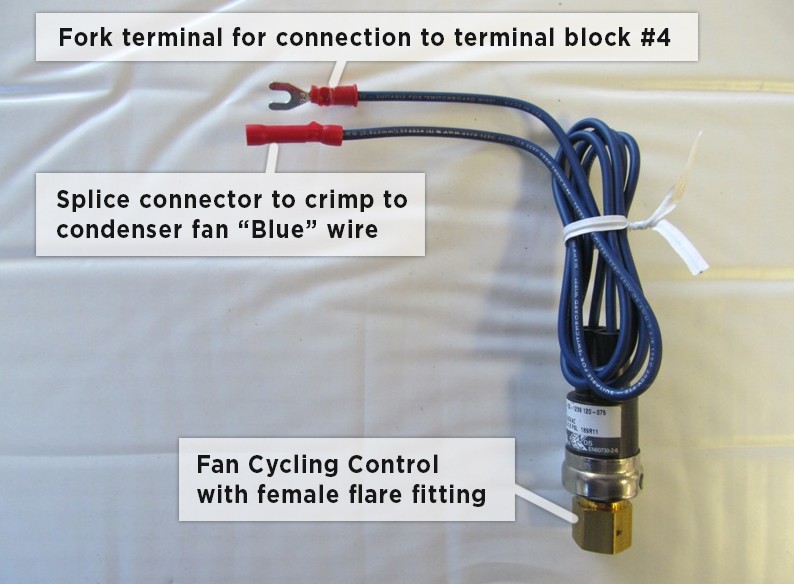

- Low Ambient Fan Cycling Control wire identification:
- Disconnect all power from unit.
- The unit housing is assembled using #2 Phillips head screws.
- For units with a front grill: remove screws holding front grill. Pull the selector knob off of the fanspeed control and remove the grill.
- For units with a front duct hood kit, remove both top and bottom duct hoods.
- Remove wall mounting brackets and outdoor cover if applicable.
- Remove top cover. Lift the cover up to remove from unit.
- Remove all foil tape blue insulating foam from the condenser side (rear half) of the unit.
- Locate the discharge line 1/4" access valve and remove the threaded cap.

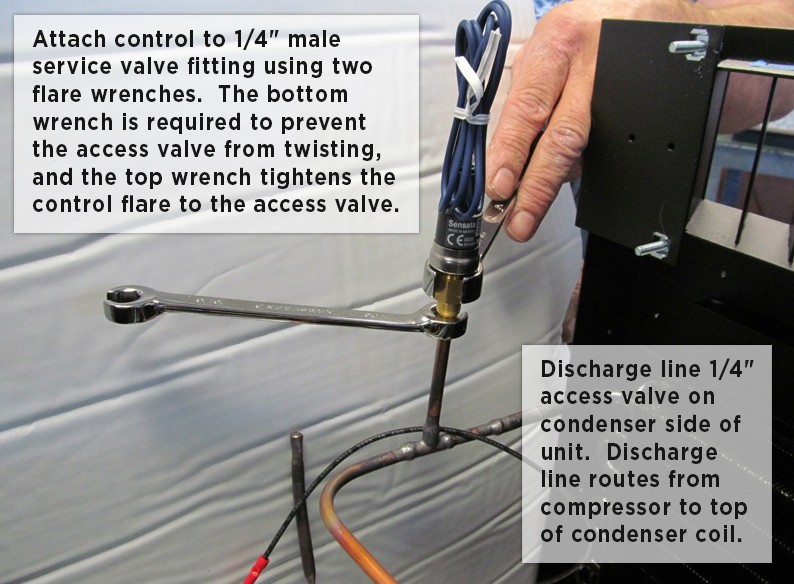

- Install the Fan Cycling Control as shown
- Click here for pdf of detailed wiring instructions.
- When wiring is complete and control function is verified, replace all insulating foam and seal all seams with foil tape.
- Replace housing sheet metal and put unit into service.
