CP Outdoor Wall Cap for 10-Inch Ducting #30375

Our outdoor wall cap is designed for use with ducted CellarPro cooling units using 10-Inch duct runs.

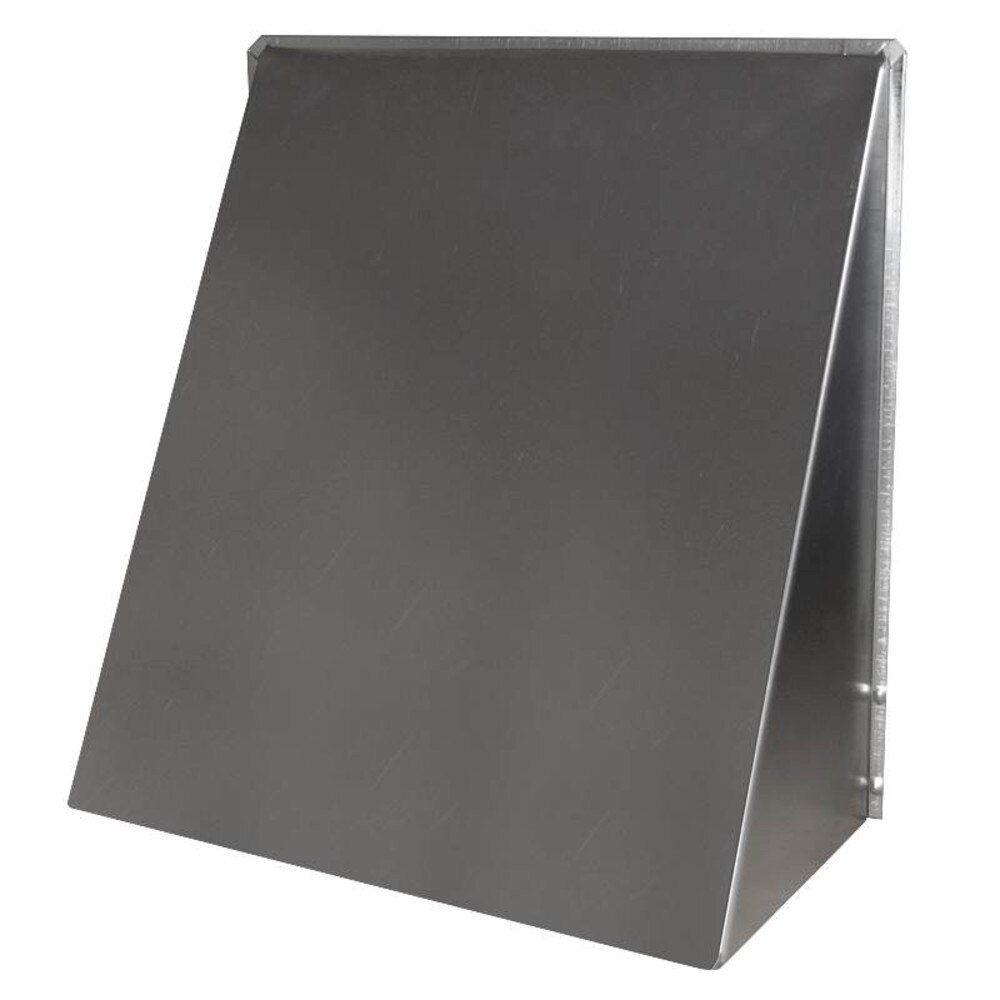

CellarPro Outdoor Wall Cap for 10-Inch Ducting (P/N 30375). The outdoor wall cap provides rain protection, features a built-in bird screen, and is designed to cap 10" ducting. The wall cap is compatible with the following CellarPro models and airflows:

• AH6500 / AH8500 hot-side exhaust or return air


Restricted space, long duct runs, multiple duct bends, high temperature conditions and/or other airflow restrictions may cause the cap to be too restrictive for the cooling unit.

Please note: If the cap will be used for the return airflow:

• It should not be placed in direct sun, because the temperature of the return air may become too warm
• If outdoor temperatures drop below 40F, make sure that you add compressor heater #1727 to your order
• If outdoor temperatures drop below 20F, make sure that you add fan cycling switch #6972 to your order


Please note: Our units were not designed for, and our warranty does not cover damage from, marine exposure (within 5 miles of the ocean). In these environments, you will need an applied coating, such as Insitu®, to protect against corrosion that is common in coastal regions.

• AH6500 / AH8500 hot-side exhaust or return air

Brand: CellarPro

Size: 12 1/2w x 10d x 12 3/4h (in)

Weight: 1.4 lbs

Warranty:
1 Year
