CP Drain Line 1800 BOTTOM + Heating Element #7432

Condensate drain lines are strongly recommended for wine cellar installations of 1800 Series wine cooling units in humid environments with 110V power and/or when the drain line cannot be used. This item MUST be factory-installed - it cannot be retrofitted in the field.

Condensate Drain Line Bottom + Heating Element CellarPro 1800 (P/N 7432). When the wine cooling unit will be installed in a wine cellar with hot, humid conditions, our 100W heating element is designed to burn off excess moisture.

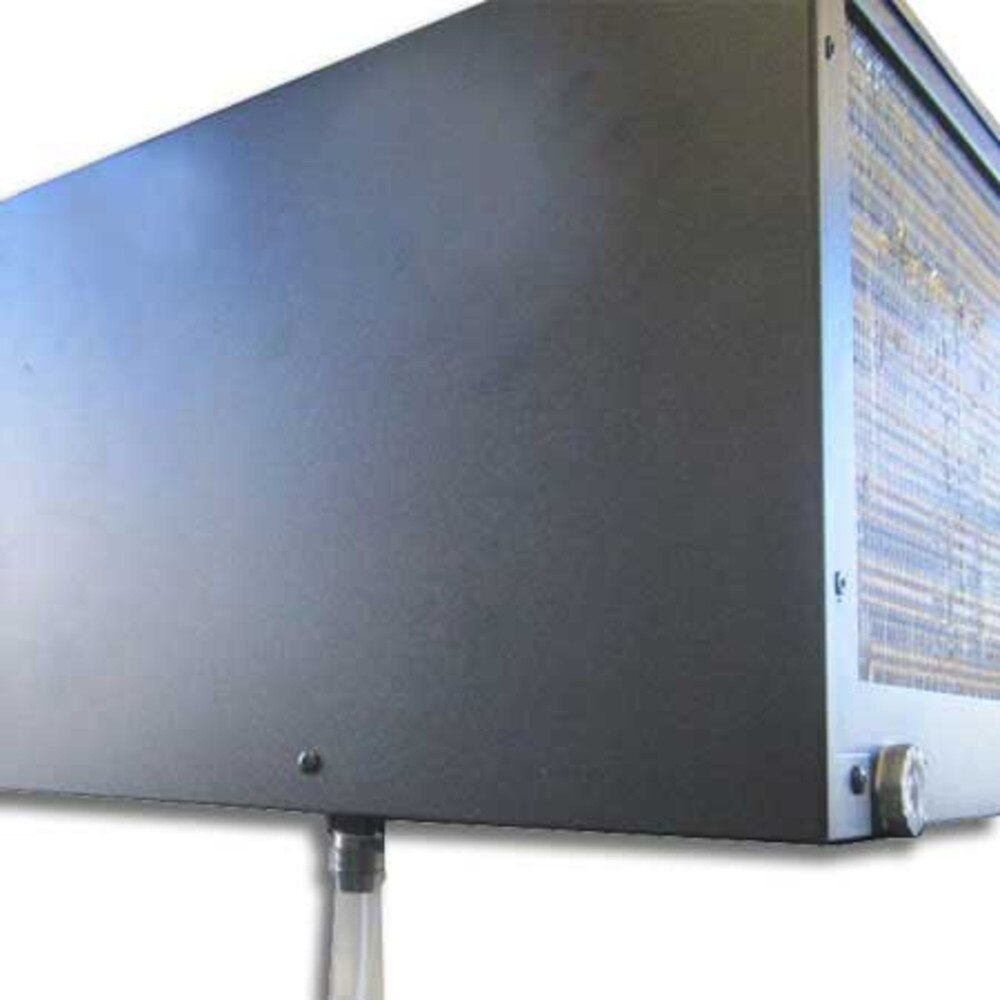

In addition, the 1/2-inch ID condensate fitting (designed to drain inside the wine cellar) and 8-foot clear vinyl tube allows overflow condensation to exit from the bottom of the cooling unit.

Please note:

• This item will work only in 110V environments.
• The bottom drain line is located approx 9 inches from the front and 7 inches from the rear and 1 inch inside the right edge of the cooling unit.
• With the bottom drain line, thefront 10 inches of the cooling unit MUST be located inside the wine cellar.

• 100W internal heating element
• Works in 110V environments
• 1/2-inch ID condensate fitting
• 8-foot drain line

Brand: CellarPro

Size: 8 feet (drain line)

Warranty:
1 Year

Click on one of the following links for more information:

• Location of Drain Line
