CellarPro 2000VS Duct HOOD Cold Insulated #27108

SKU: 27108 Duct Hood Cold 2000VS HI RH
$850.00
In Stock

Typical Processing Time: 2-3 Business Days

Select Your Options

Overview

Insulated cold-side duct hood for CellarPro 2000VSi / 2000VSx cooling units installed in unconditioned environments. Allows the cold air intake and exhaust to be ducted up to 50 equivalent feet (25 feet per opening). Insulated 8-inch ducting is not included.

Details

CellarPro 2000VS Duct HOOD Cold Insulated (P/N 27108). This insulated duct hood is recommended for installations when the evaporator will be located in an unconditioned environment, and is compatible with the following cooling units:

  • CellarPro 2000VSi / 2000VSx

Each duct is designed to attach to insulated 8-inch ducting (not included) for cold air exhaust to, and return air from, the wine cellar, up to 50 equivalent feet (25 feet per opening). The exhaust exits from the top, and the intake returns from the cold side.

Kit includes:

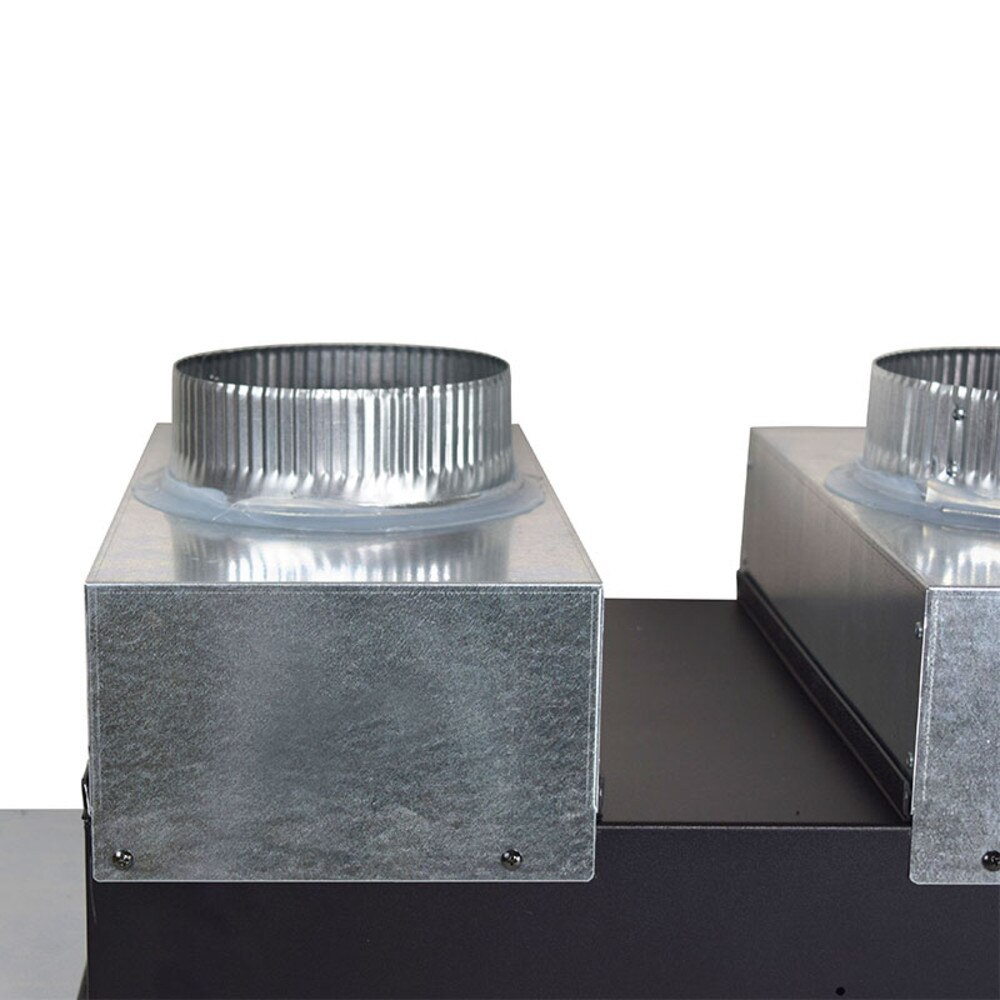

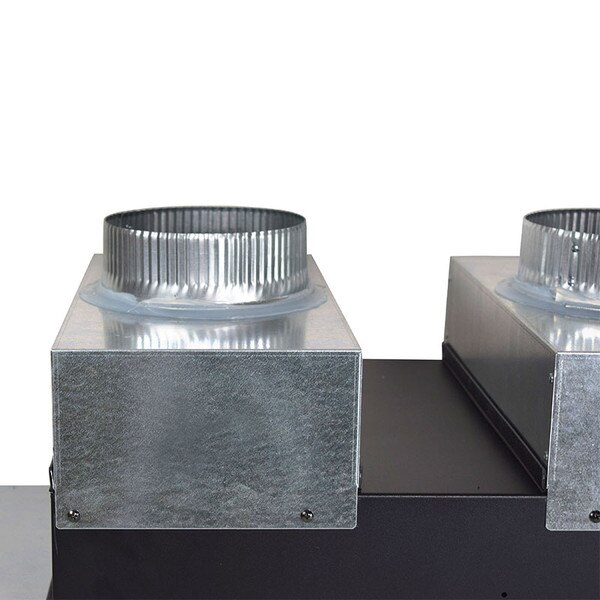

  • Insulated cold-side intake and exhaust duct hoods
  • Two 6-inch to 8-inch increasers
  • Additional insulation for unconditioned environments
  • Bottle probe with 10-foot cord
  • Remote control display kit

Insulated ducting is not included.

Important notes:

  • The high fan speed setting MUST be used anytime the cooling unit is ducted
  • The size of the ducting must not be reduced or restricted
  • Use of a custom duct hood will void the manufacturer's warranty

Features

Custom FRONT duct HOOD for 2000 VS cooling units. With this kit, the cold air intake and exhaust each can be ducted up to 50 equivalent feet (25 feet per opening).

This HIGH RH Duct Hood is required when the cooling unit will be installed in moderate, unconditioned or high humidity environments.

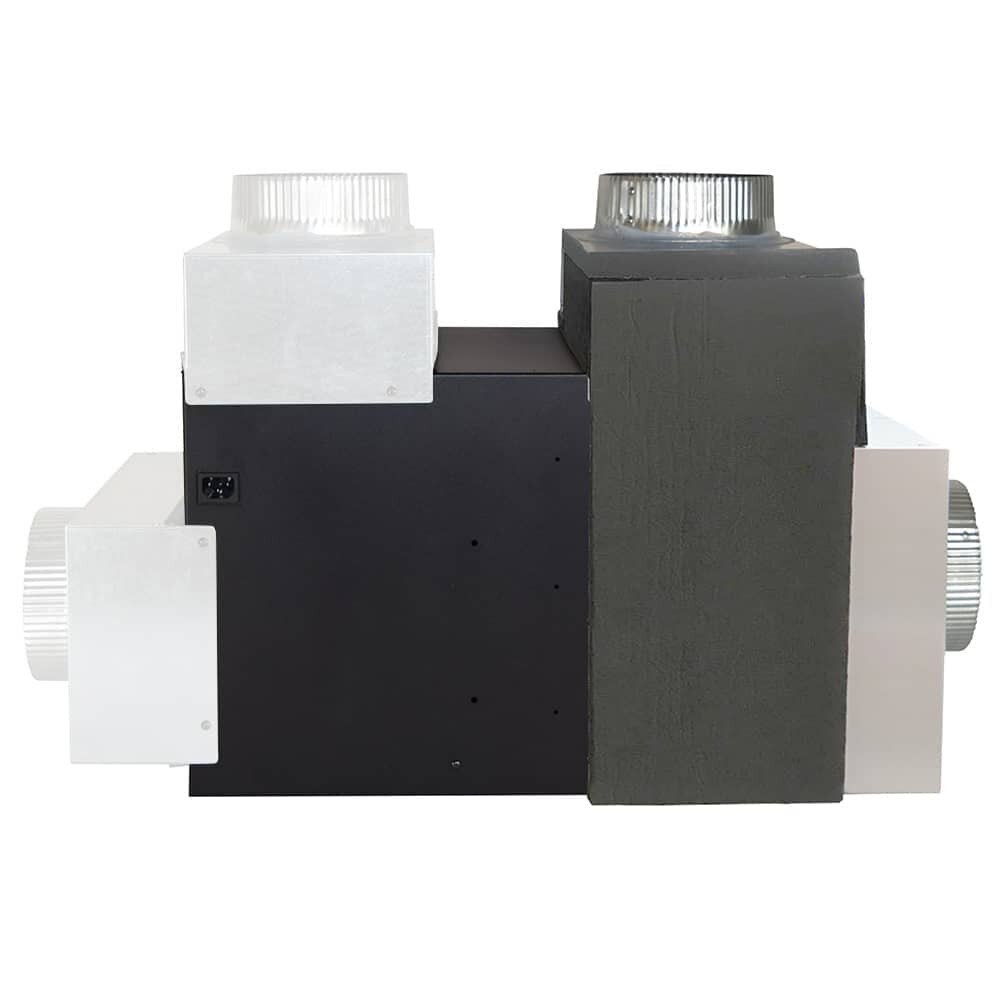

  • Attaches easily to the front (intake) and top (exhaust) of 2000VS refrigeration systems
  • Provides access to cooling unit control panel and switches
  • Designed for easy hook-up to 8" ducting
  • Both openings must be ducted to/from the cellar
  • Ducting can be up to 50 equivalent feet (25 per opening)

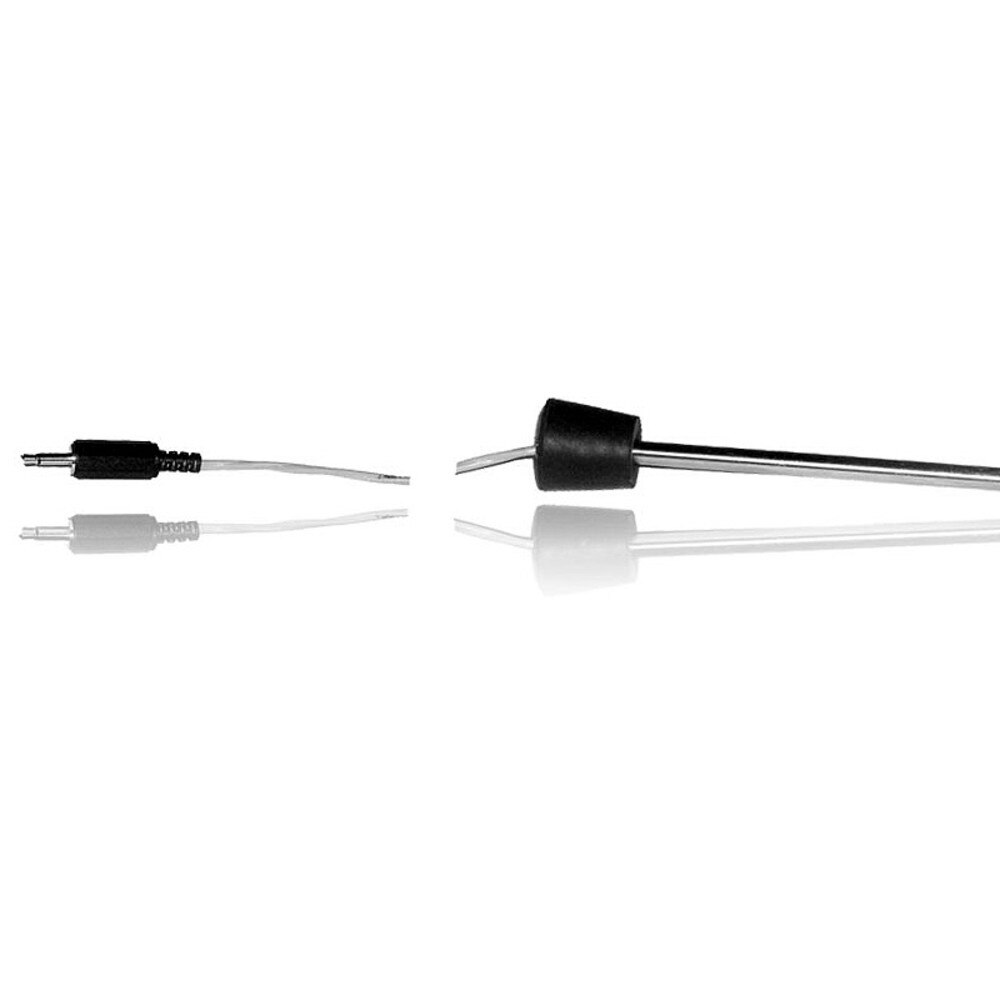

  • Includes our remote probe with 10' cord which plugs into face of the cooling unit on one end, and measures air or liquid temperature inside the cellar on the other end

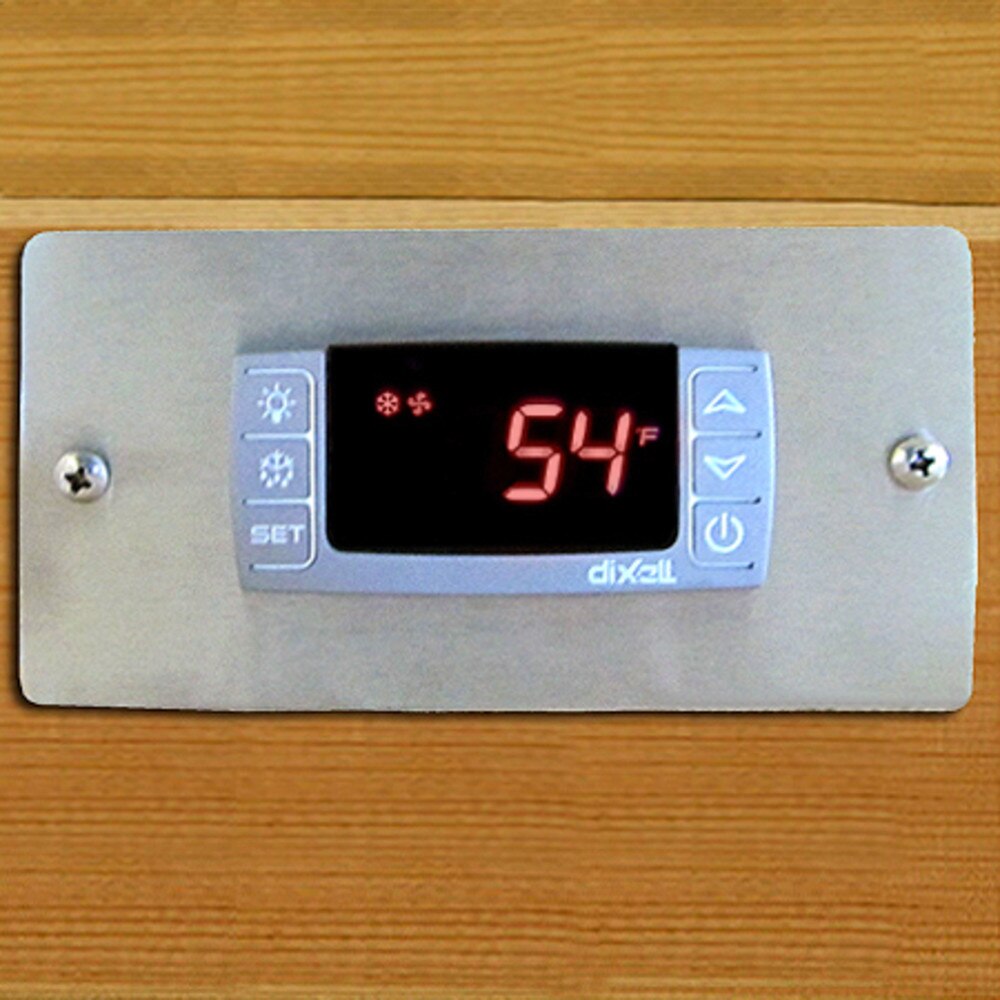

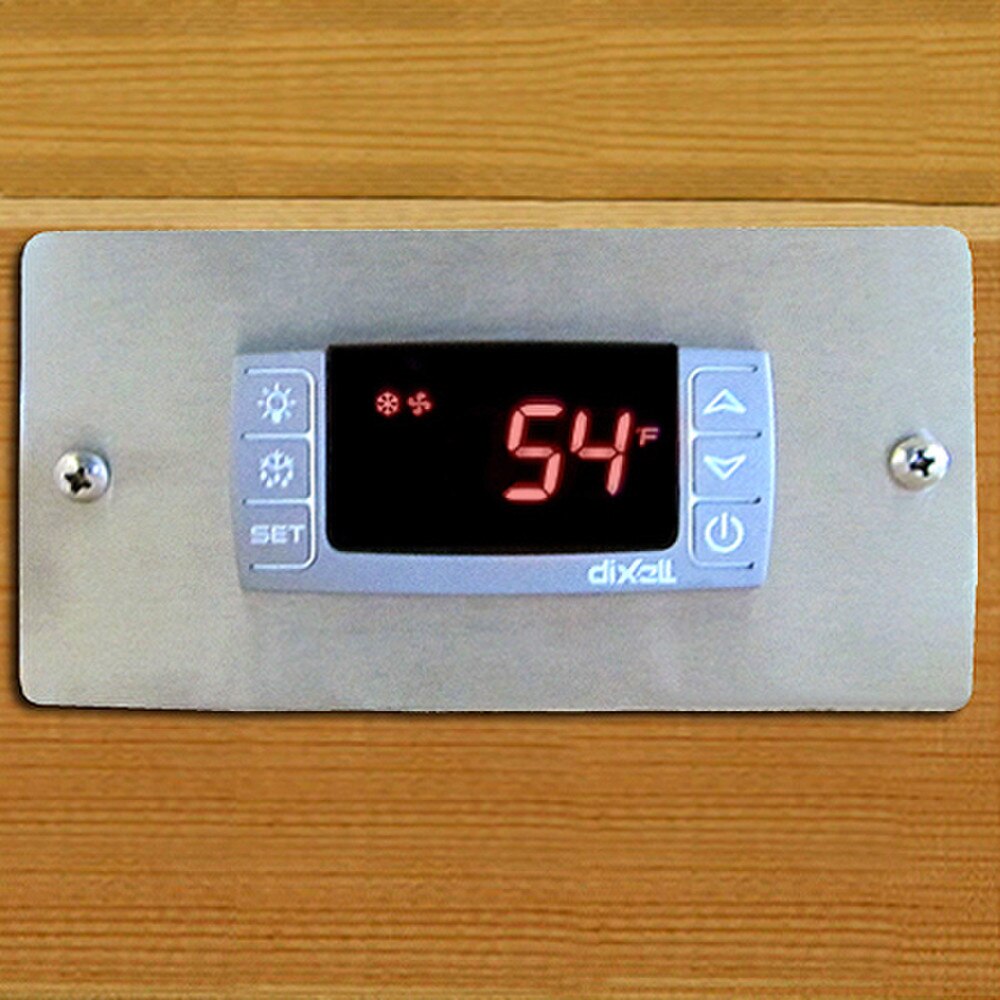

  • Includes our remote control display kit, which can be installed inside or outside the cellar
  • Appropriate for installation in unconditioned / high-humidity environments

Configurations

Please refer to the following resources before purchasing this kit:

  • This duct hood is required when the cooling unit will be installed in unconditioned environments, subject to the limitations listed in our Low RH vs High RH Duct Kit Chart. In some cases, the conditions are too extreme for any of our cold-side duct kits.
  • Use our ducting heat loss table and our duct correction table to correctly adjust the sizing of your cooling unit, because ducting will add to the thermal load of the cellar.
  • Refer to our Bottle Probe Operating Instructions to correctly set the cooling unit depending on how you're using the Bottle Probe

Specs & Resources

Brand: CellarPro

Size: As installed: 14 1/4w x 3 3/4d x 12 1/2h (in)

Weight: 35 lbs

Capacity: 50 Equivalent Feet

Warranty:
1 Year
