CellarPro 2000 VS Duct HOOD (Hot Side) #27111

Custom rear duct hood for CellarPro 2000 VS cooling units. With this kit, the hot air intake and/or exhaust can be ducted up to 50 equivalent feet (25 feet per opening).

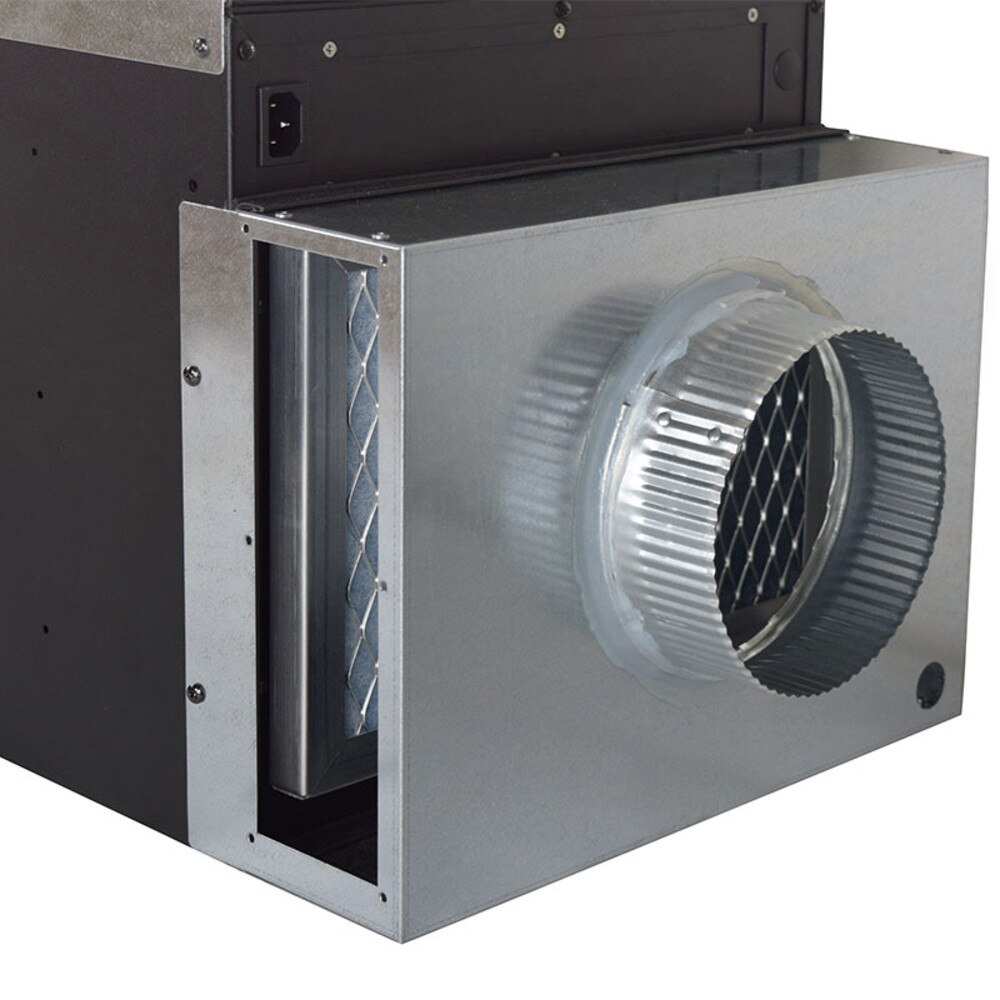

CellarPro 2000VS Duct HOOD (Hot Side) (P/N 27111). Duct openings are designed to attach to two 6-inch ducts for condenser intake and exhaust. Removable slot plate provides easy access to removable air filter.

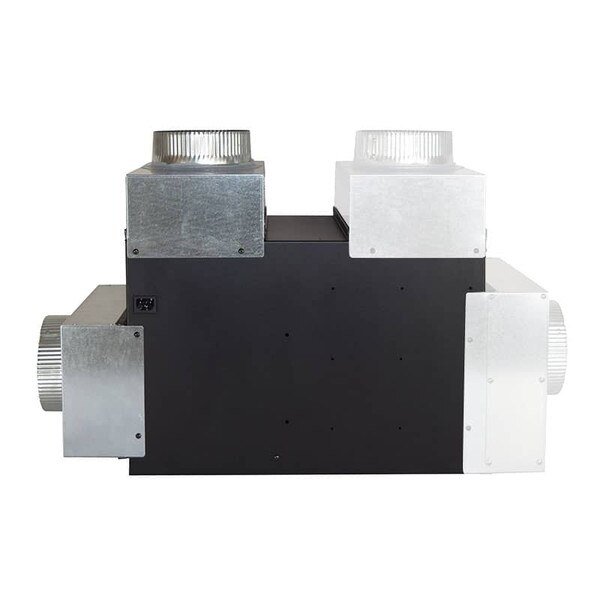

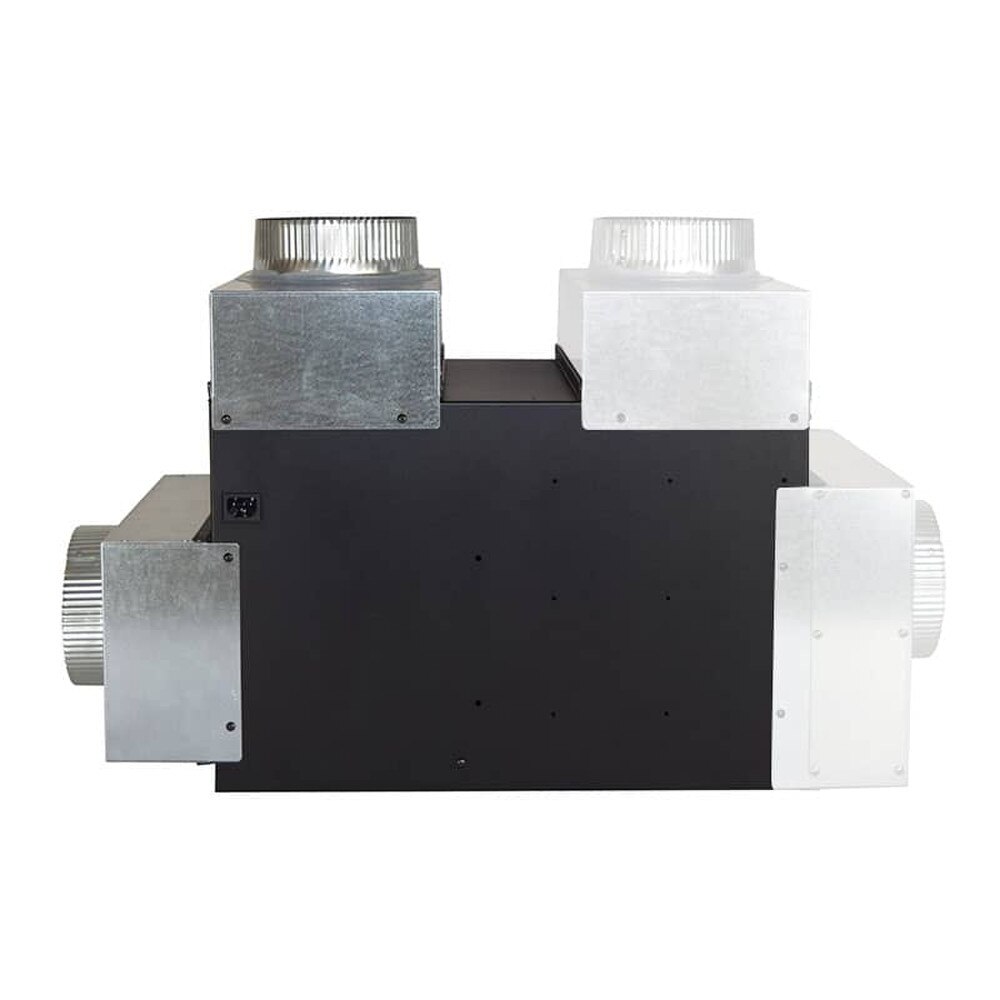

Shown at left: cold side duct hoods (left) AND hot side duct hoods (right). The cold side duct hoods are sold separately.

Hood includes: Hot side duct hood for intake and for exhaust. Ducting (6-inch diameter) is not included.

The high fan speed setting is required when using our rear duct hood.

• Attaches easily to the rear of 2000VS wine cooling units
• Provides quick access to removable air filter
• Designed for easy hook-up to 6" ducting (not included)
• One or both openings may be ducted (total of 50 equivalent feet)
• Cold-rolled, thick-gauge steel

Brand: CellarPro

Size: As installed: Exhaust: 14 1/4w x 3 3/4d x 7 1/2h (in) / Intake: 14 1/4w x 3 3/4d x 10 1/2h (in)

Weight: 8 lbs

Capacity: 50 Equivalent Feet

Warranty:
1 Year
