CP 6200/8200 Duct KIT Cold Side Low RH #14680
Overview
Our cold-side duct hoods allow the cold air intake and exhaust to be ducted up to 100 equivalent feet (50 feet per opening).
Details

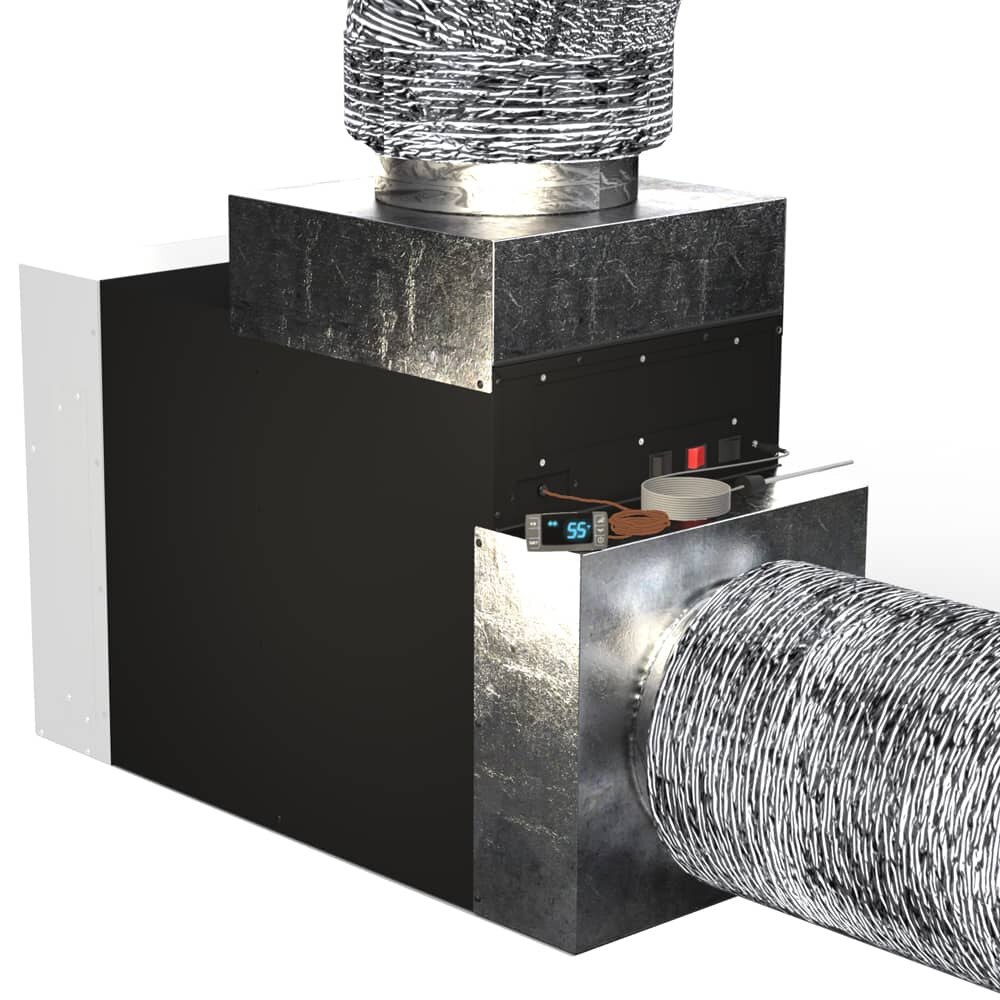

CellarPro 6200/8200 VS Duct KIT (Cold Side) Low RH (P/N 14680). Duct openings are designed to attach to 2 insulated 10-inch ducting (included) for evaporator intake and exhaust. Custom design allows access to controls and switches on the face of the cooling unit.
Requires 9 inches of additional height at the front of the cooling unit. The high fan speed setting is required when our unit is ducted.

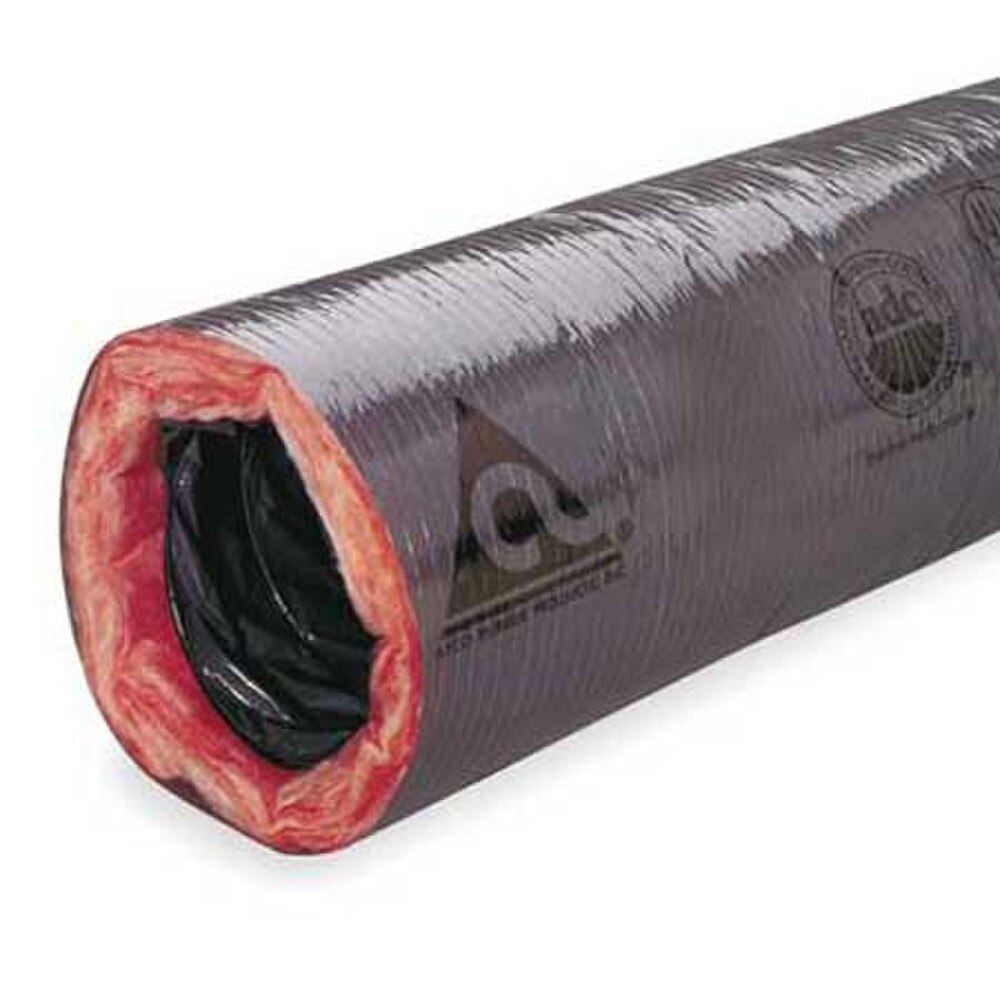

Kit includes: Duct hood, 50 feet (2x25) of 10-inch insulated (R-6) ducting, remote display and bottle probe.
The high fan speed setting is required when the unit is ducted.
Features

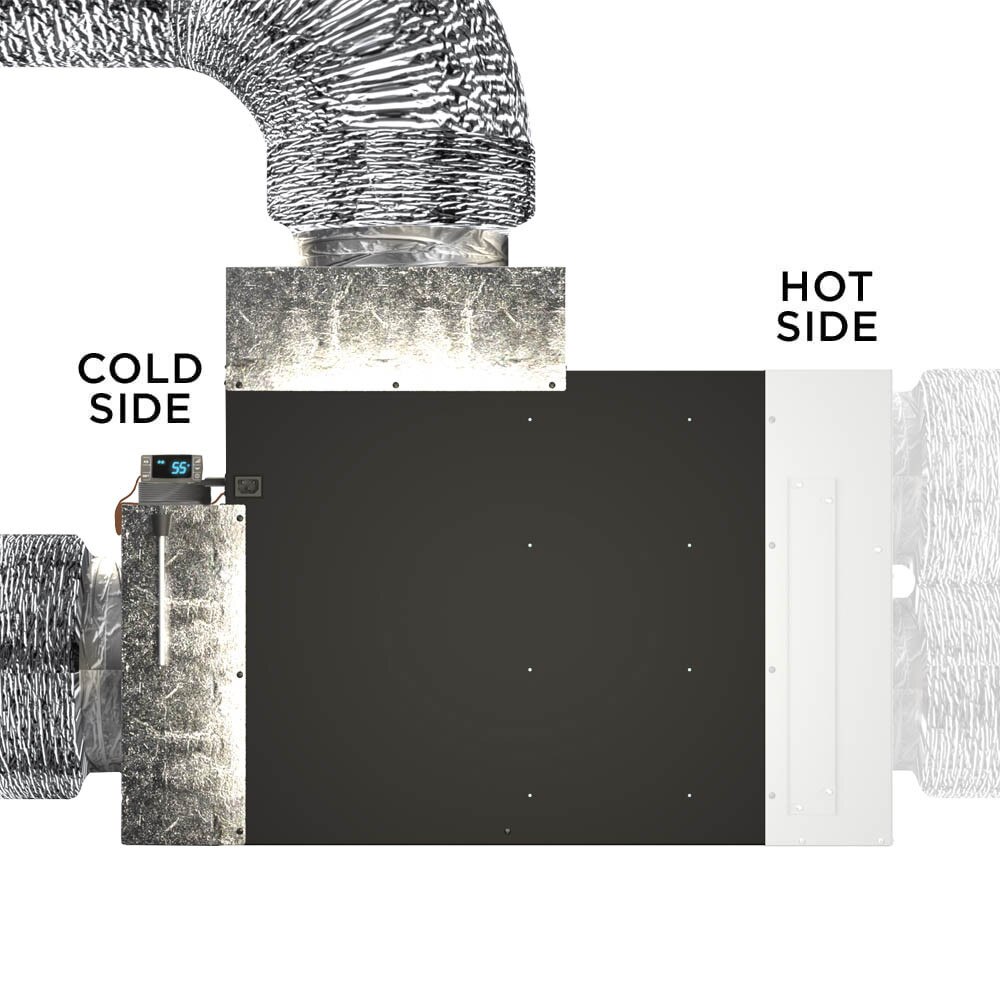

- Attaches easily to the front (intake) and top (exhaust) of 6200/8200 VS refrigeration systems
- Provides access to cooling unit control panel and switches
- Designed for easy hook-up to 10" ducting
- Both openings must be ducted (total of 100 equivalent feet) to/from the cellar

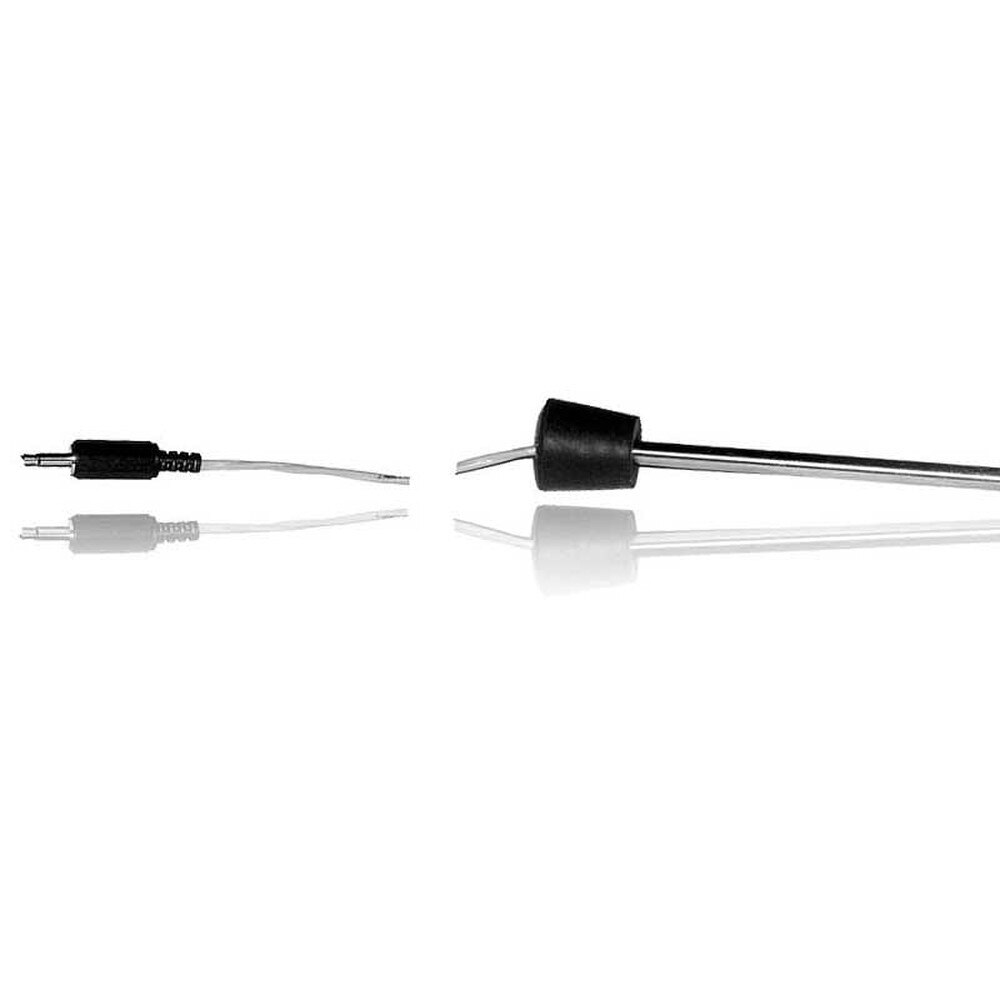

- Bottle probe with 10' cord plugs into face of the cooling unit
- Maintains accurate temperatures inside the wine cellar
- Designed to be used in Low Humidity environments
Configurations
Please refer to the following resources before purchasing this kit:
- This kit may only be used in conditioned, low humidity environments. Use our Low RH vs High RH Duct Kit Chart to determine whether this kit is appropriate for your installation. In some cases, the high-humidity duct hood may be required, and in some cases, the conditions are too extreme for any of our cold-side duct kits.
- Use our ducting heat loss table and our duct correction table to correctly adjust the sizing of your cooling unit, because ducting will add to the thermal load of the cellar.
- Refer to our Bottle Probe Operating Instructions to correctly set the cooling unit depending on how you're using the Bottle Probe
Specs & Resources
Brand: CellarPro
Size: 16 1/4w x 39 3/4d x 29 h (in)
Weight: 35 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
