CP 1800 Duct KIT Hot + Inline Fan RETROFIT #1832

CellarPro 1800 Duct KIT (Hot Side) RETROFIT (P/N 1832). This RETROFIT kit should be used if the cooling unit has already shipped. It includes:

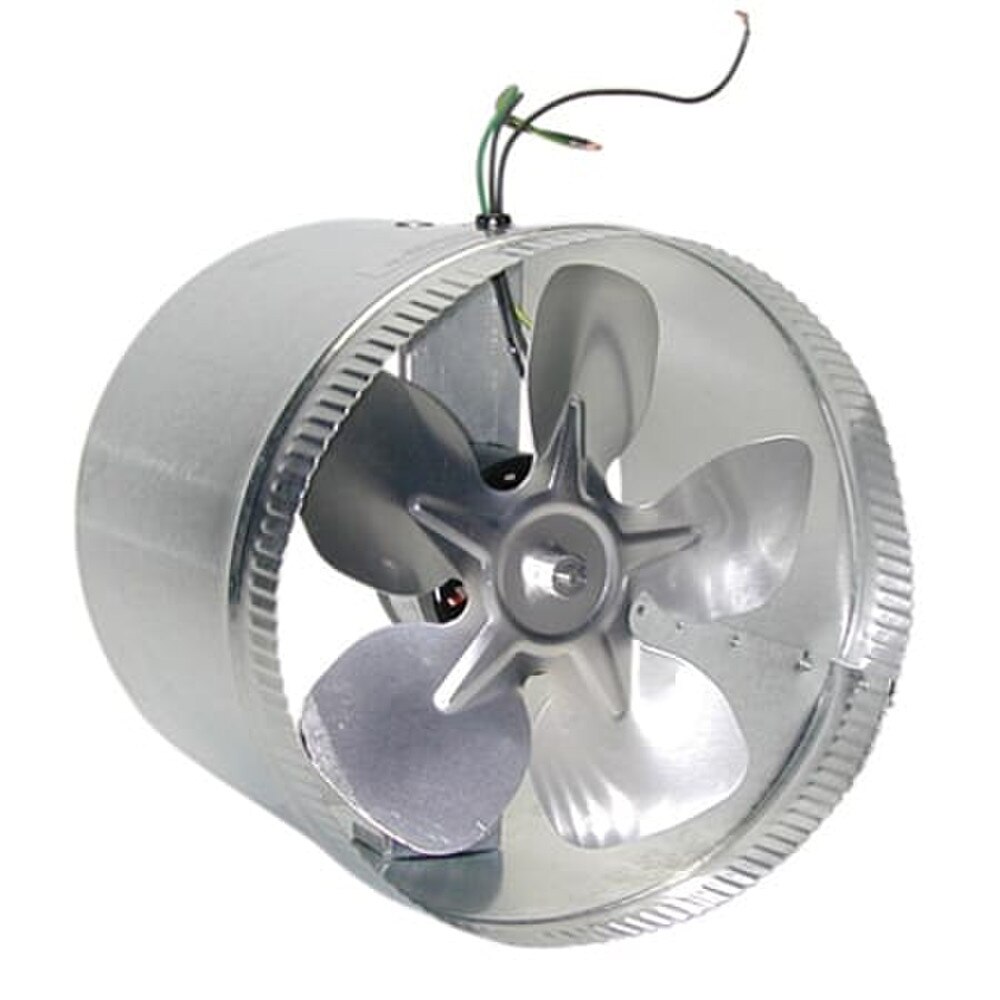

• 6-inch inline fan (120 CFM)

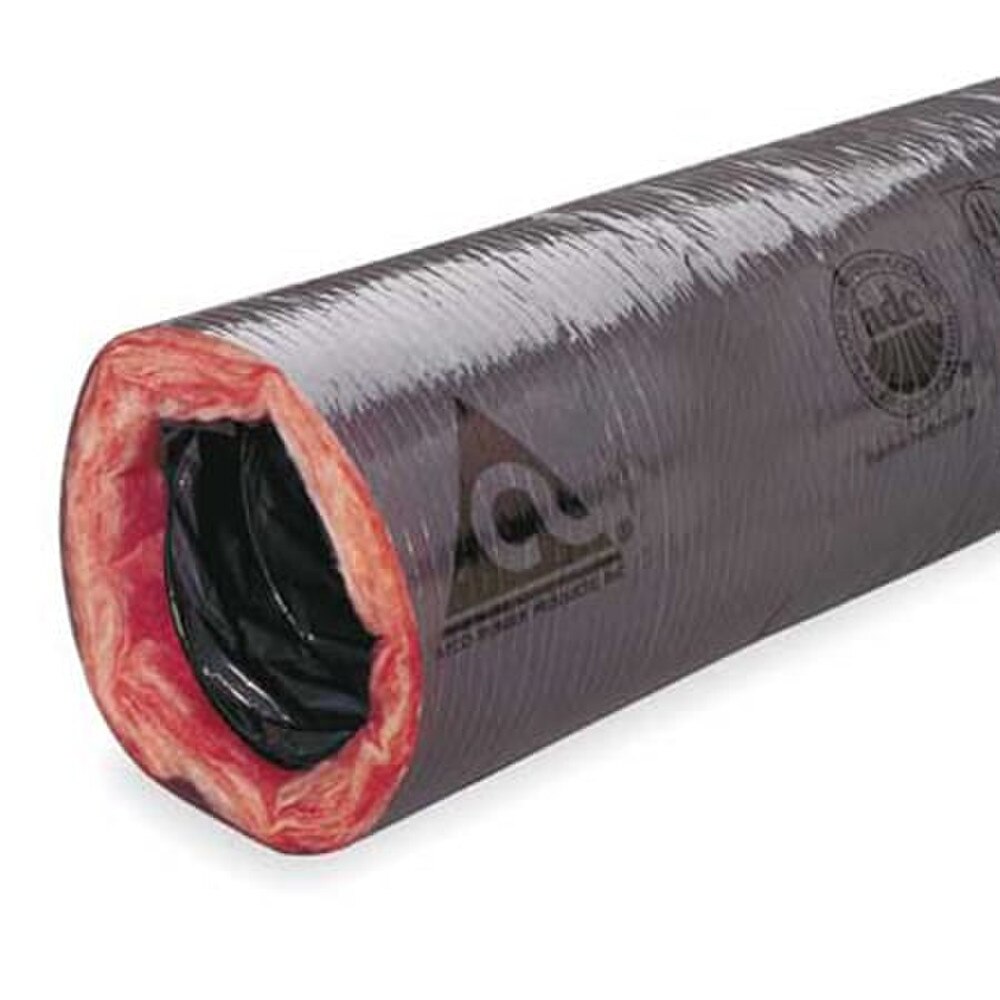

• 50 feet (2x25 feet) of 6-inch insulated ducting (R-6)

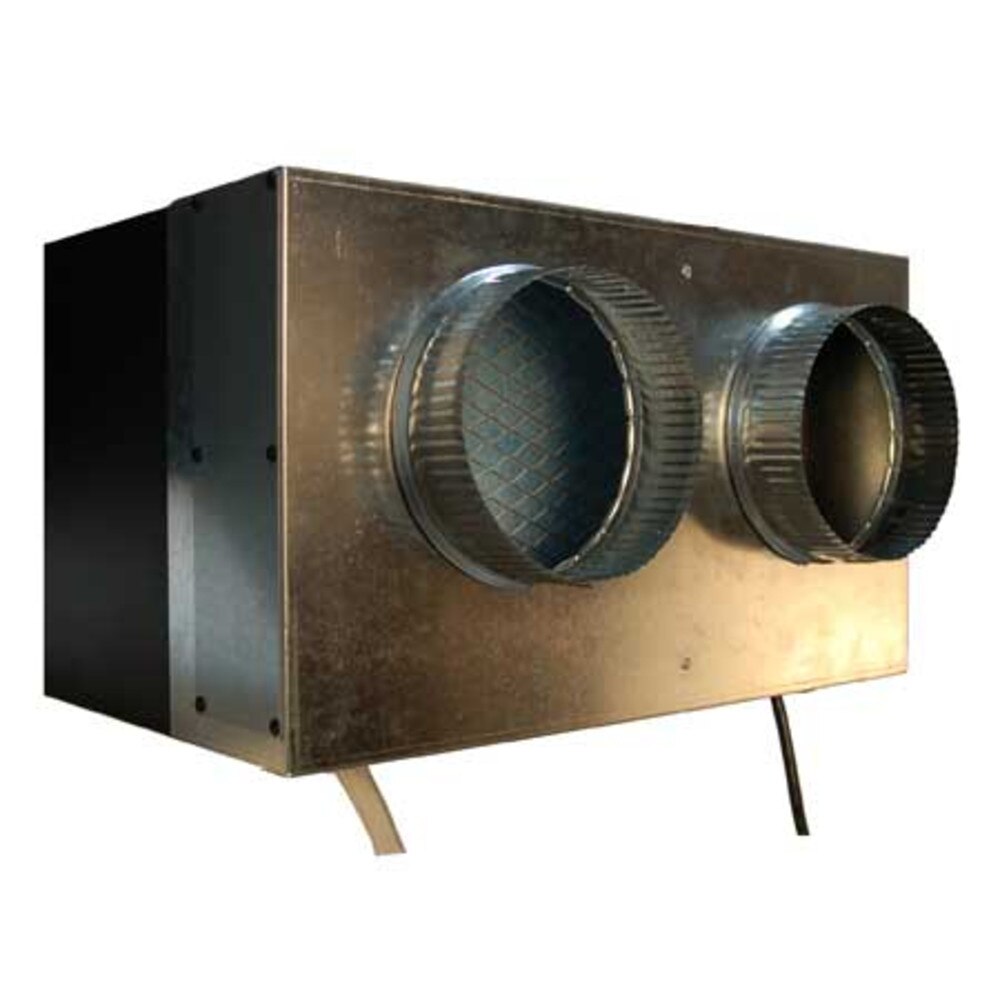

• Galvanized metal duct hood slides over the rear of the cooling unit and baffles the air intake and exhaust
• RETROFIT WIRE HARNESS + 8-foot power line provides switched power for the inline fan to match the on/off cycle of the wine cooling unit

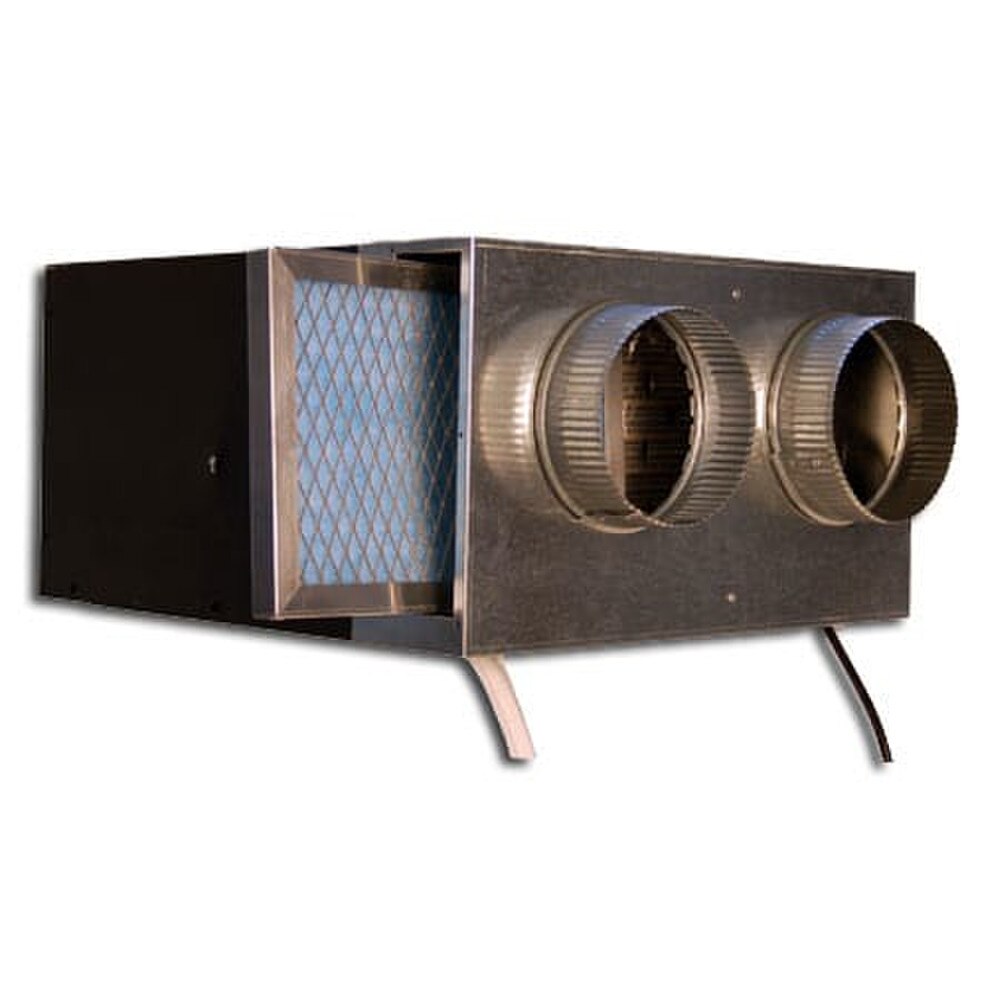

The duct hood is designed with an easy-access panel to replace the air filter (sold separately), and openings for the drain line and power cord.

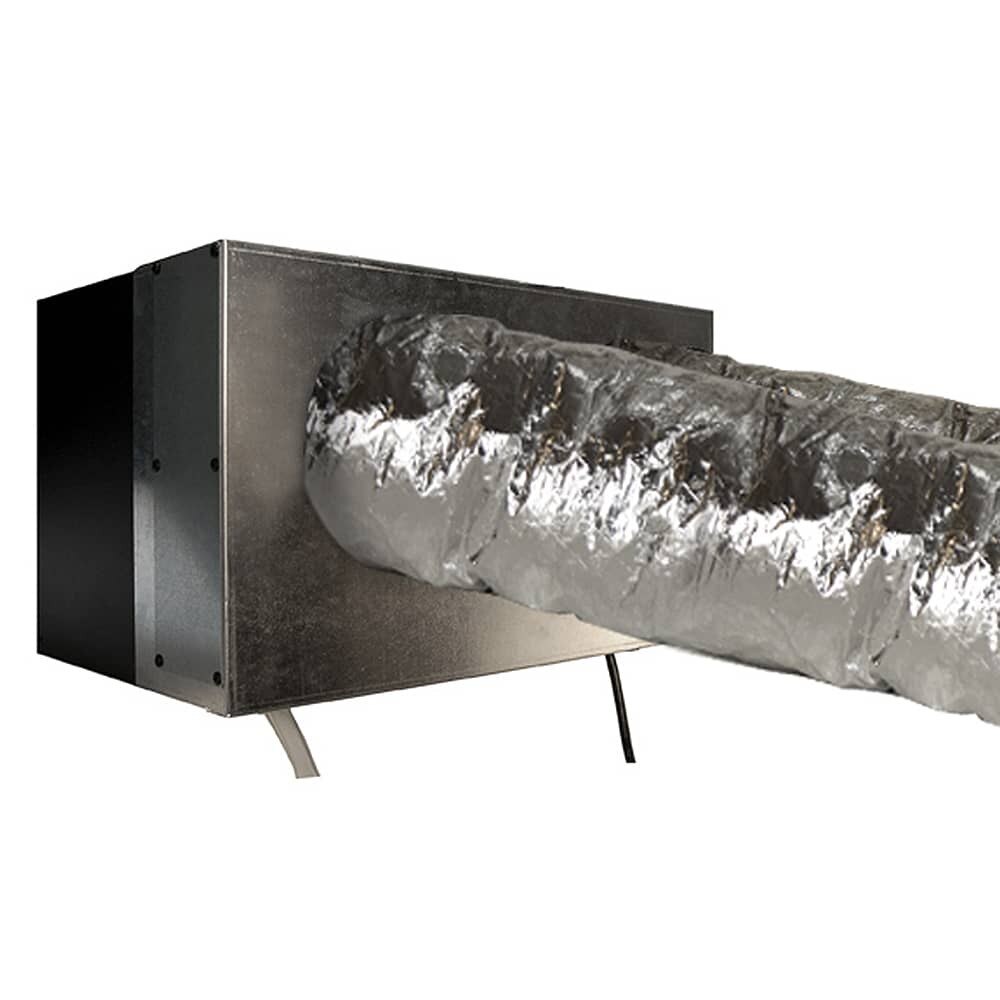

RETROFIT Kit allows CellarPro 1800 Series cooling units to be ducted up to 100 equivalent feet (50 feet per duct) using 6-inch or greater ducting from start to finish. Order this kit if your 1800 cooling unit already has been shipped.

• RETROFIT Rear Duct Kit for CellarPro 1800 Cooling Units
• Inline fan (3000RPM, 120 CFM) has a permanently lubricated, impedance protected motor
• Heavy gauge plated steel brackets
• Switched power to match the cooling unit
• 50 feet of 6-inch insulated ducting (R-6)
• Designed to fit over the rear of all CellarPro 1800 wine cooling units (should not be used with 1800QTL units)
• Includes an easy-access panel to replace air filters (sold separately)
• Grommet openings for the drain line and power cord

Brand: CellarPro

Size: 18 1/4w x 6 3/4d x 10 1/4h (in)

Weight: 34 lbs

Power/Rating:
115V, 60 Hz, 0.6 amps (Inline Fan)

Capacity: 100 Equivalent Feet

Warranty:
1 Year

The depth of the hood includes 2 1/4 (in) for the 6-inch dia. duct adapters. The hood is designed to slide over the rear of the cooling unit, and will overlap the cooling unit by approximately 1-2 (in). Click on one of the following links for more information:

• Duct Hood Drawings
• Rear Duct Installation Guide
• Rear Drawings - As Ducted
• Ducting Installation Best Practices
• Wire Harness Retrofit Instructions
