CellarPro VS Duct KIT (Hot Side) #1113
Overview
Custom duct hood for CellarPro 3200 and 4200 Series wine cooling units. With this kit, the hot air intake/exhaust can be ducted up to 100 equivalent feet (50 feet per opening).
Details

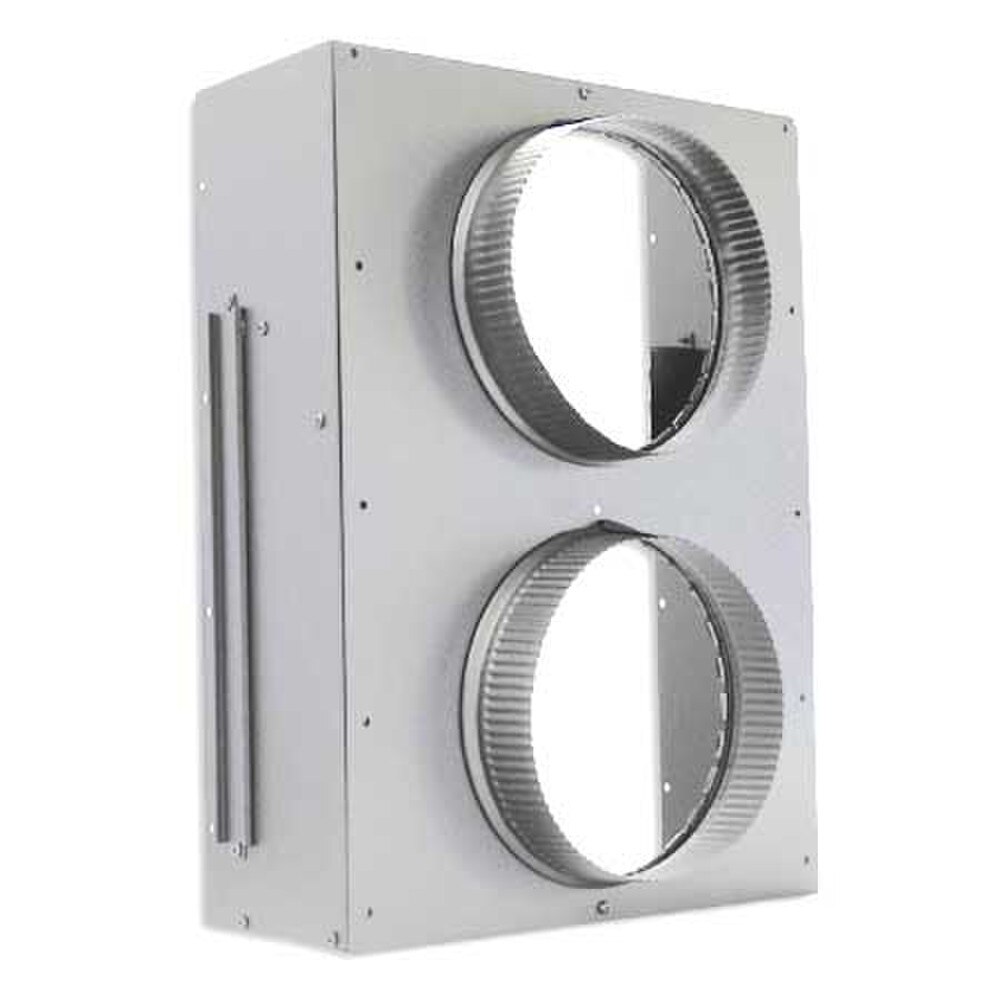

CellarPro 3200/4200 Duct Kit (Rear) (P/N 1113). Duct openings are designed to attach to two 8" ducts for condenser intake and exhaust. Removable slot plate provides easy access to removable air filter.

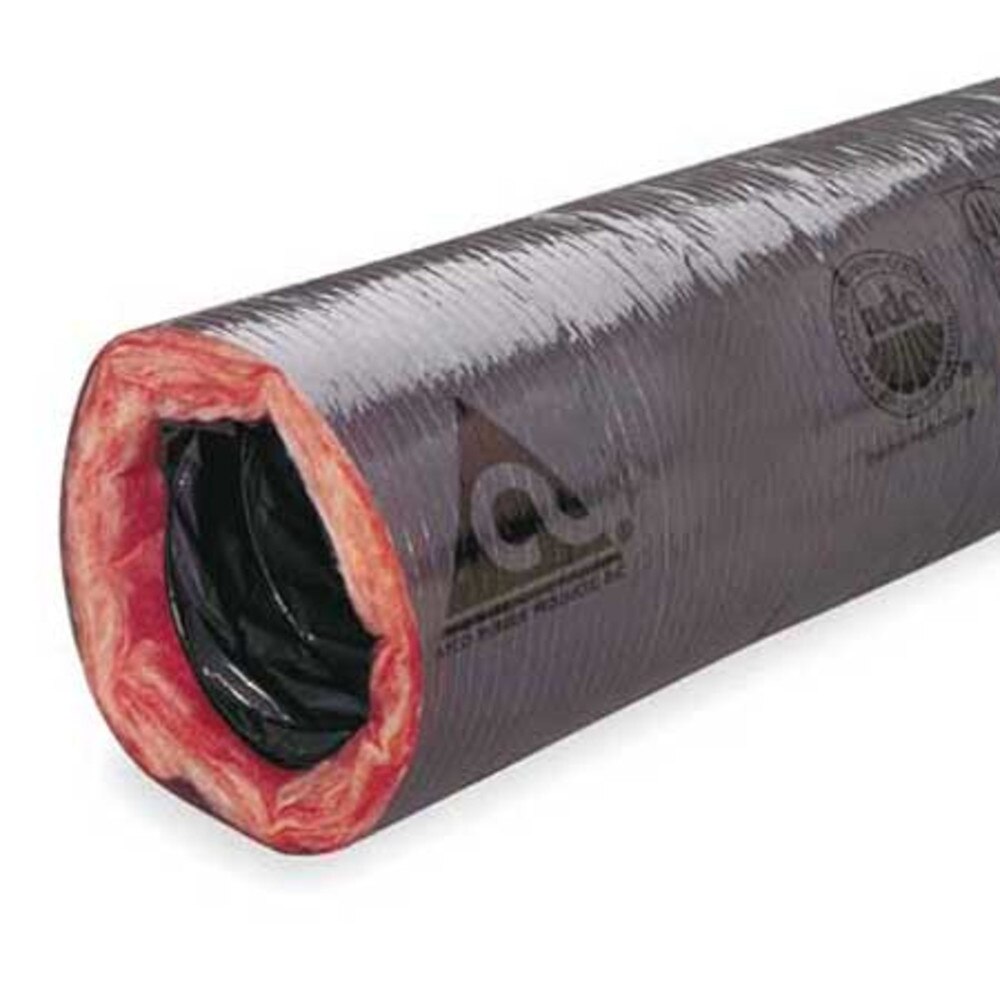

Kit includes: Duct hood and 50 feet (2x25) of 8-inch insulated (R-6) ducting.
Please note: The high fan speed setting is required whenever the cooling unit is ducted. The diameter of the ducting must be 8- inches or greater from start to finish, and must not be reduced.
Kit includes: Duct hood and 50 feet (2x25) of 8-inch insulated (R-6) ducting.
Please note: The high fan speed setting is required whenever the cooling unit is ducted. The diameter of the ducting must be 8- inches or greater from start to finish, and must not be reduced.
Features
- Attaches easily to the rear of 3200 and 4200 wine cooling units
- Provides quick access to removable air filter
- Designed for easy hook-up to 8" ducting
- One or both openings may be ducted (total of 100 equivalent feet)
- Powdercoated, cold-rolled, thick-gauge steel
Specs & Resources
Brand: CellarPro
UPC: 077757011139
Size: 14 1/2w x 8d x 19 3/4h (in)
Weight: 42 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
Click on one of the following links for more information:
UPC: 077757011139
Size: 14 1/2w x 8d x 19 3/4h (in)
Weight: 42 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
Click on one of the following links for more information:
- Rear Duct Hood Cut Sheet
- 3200 / 4200 + Combined Cut Sheets (As Ducted)
- Framing Diagram
- Installation Diagrams
- Ducting Installation Best Practices
Ratings & Reviews
1 review
7/28/2018 8:47 am
Duct Kit
by RIch
Well constructed. Relatively easy to install. If you access to power, I might recommend getting the pusher fan.
