CP Outdoor Wall Cap for 8-Inch Ducting #30374
Overview
Our outdoor wall cap is designed for use with ducted CellarPro cooling units using 8" ducting.
Details

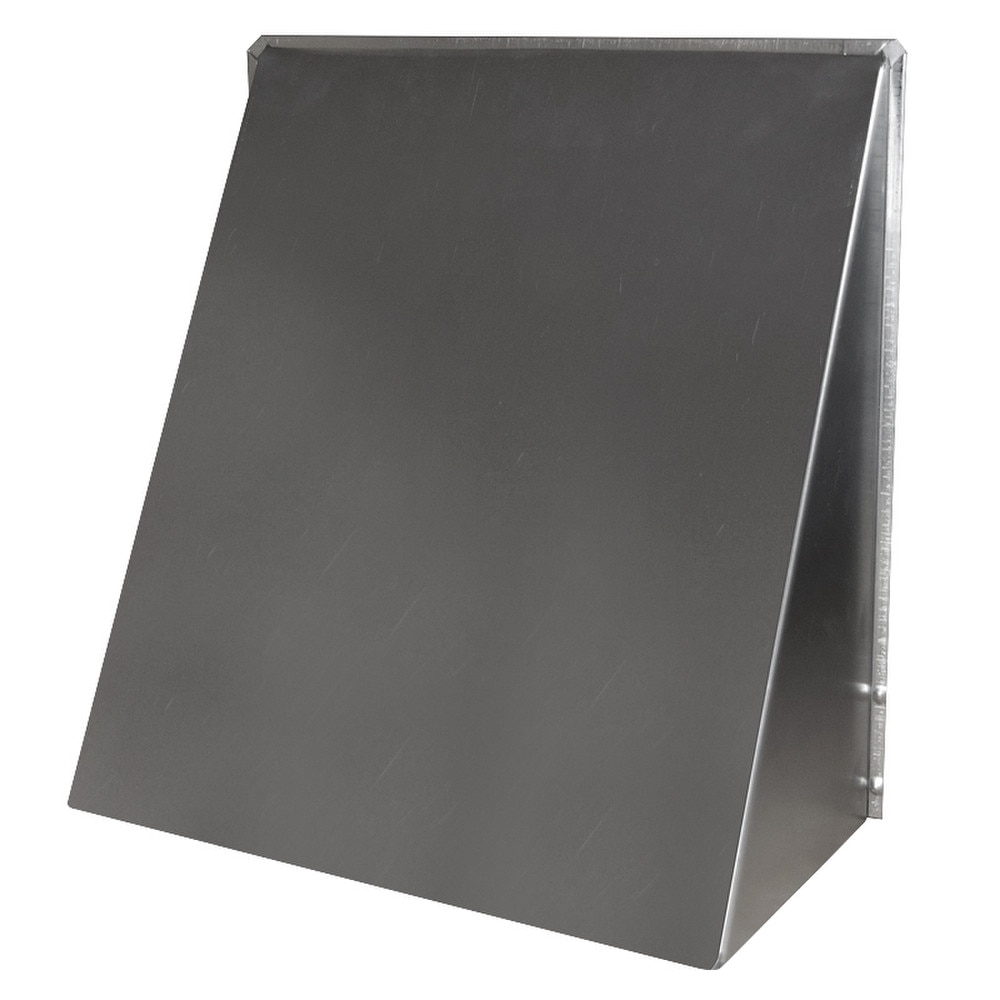

CellarPro Outdoor Wall Cap for 8-Inch Ducting (P/N 30374). The outdoor wall cap, provides rain protection, features a built-in bird screen, and is designed to cap 8" ducting. The wall cap is compatible with the following CellarPro models and airflows:
- 3200VSi / 4200VSi / 6200VSi / 8200VSi hot-side exhaust or return air
Restricted space, long duct runs, multiple duct bends, high temperature conditions and/or other airflow restrictions may cause the cap to be too restrictive for the cooling unit.
Please note: If the cap will be used for the return airflow:
- It should not be placed in direct sun, because the temperature of the return air may become too warm
- If outdoor temperatures drop below 40F, make sure that you add compressor heater #1727 to your order
- If outdoor temperatures drop below 20F, make sure that you add fan cycling switch #6972 to your order
Please note: Our units were not designed for, and our warranty does not cover damage from, marine exposure (within 5 miles of the ocean). In these environments, you will need an applied coating, such as Insitu®, to protect against corrosion that is common in coastal regions.
Features
- 3200VSi / 4200VSi / 6200VSi / 8200VSi hot-side exhaust or return air
Specs & Resources
Brand: CellarPro
Size: 12 1/2w x 10d x 12 3/4h (in)
Weight: 1.4 lbs
Warranty:
1 Year
