CellarPro 2000VS Duct KIT Hot #27106

CellarPro 2000VS Duct KIT Hot (P/N 27106). This duct kit is designed for the hot-side intake and exhaust of the following cooling units:

• CellarPro 2000VSi / 2000VSx

One or both hot-side openings can be ducted up to 50 equivalent feet total (25 feet per opening) using 6-inch ducting.

Kit includes:

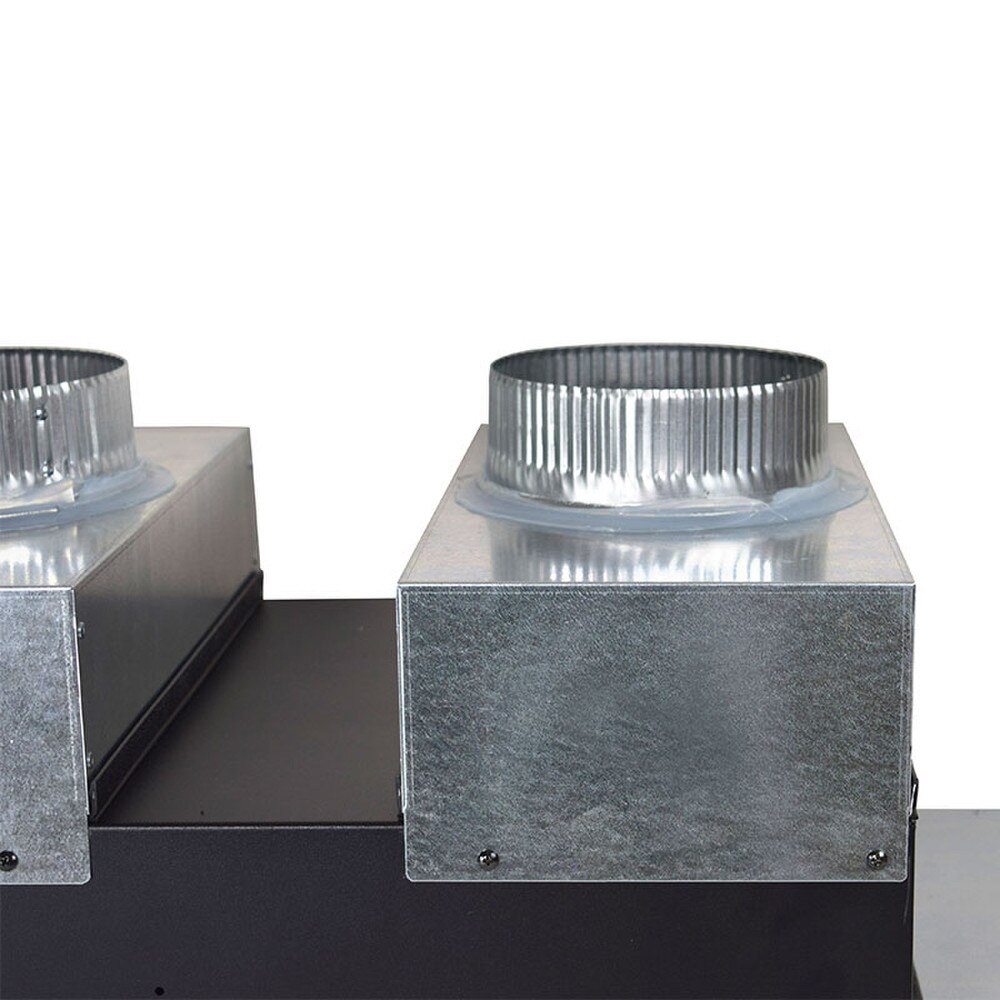

• Hot-side intake duct hood
• Hot-side exhaust duct hood

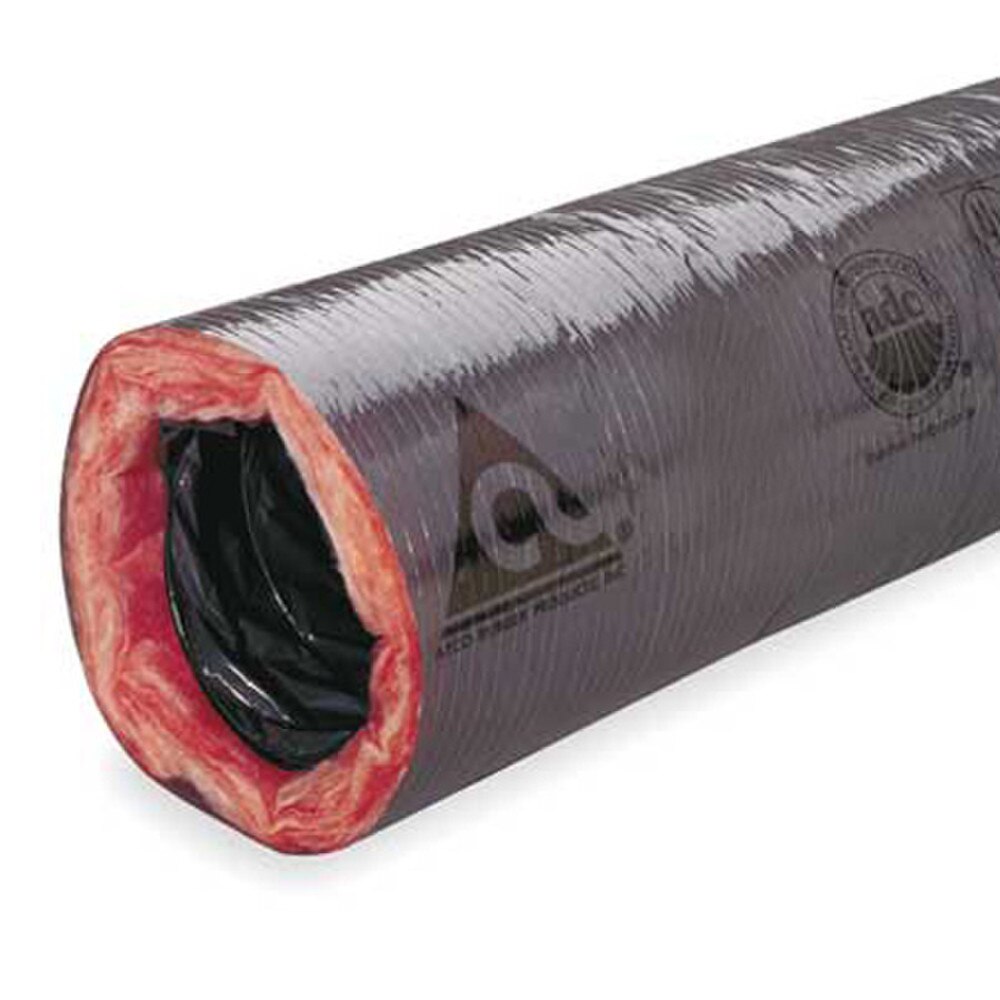

• 50 feet (2 x 25 feet) of 6-inch R-6 insulated ducting
• Mounting hardware

Important notes:

• The high fan speed setting MUST be used anytime the cooling unit is ducted
• The size of the ducting must not be reduced or restricted
• Use of a custom duct hood will void the manufacturer's warranty

Custom hot side duct kit for CellarPro 2000 VS cooling units. With this kit, the hot air intake/exhaust each can be ducted up to 50 equivalent feet (25 feet per opening).

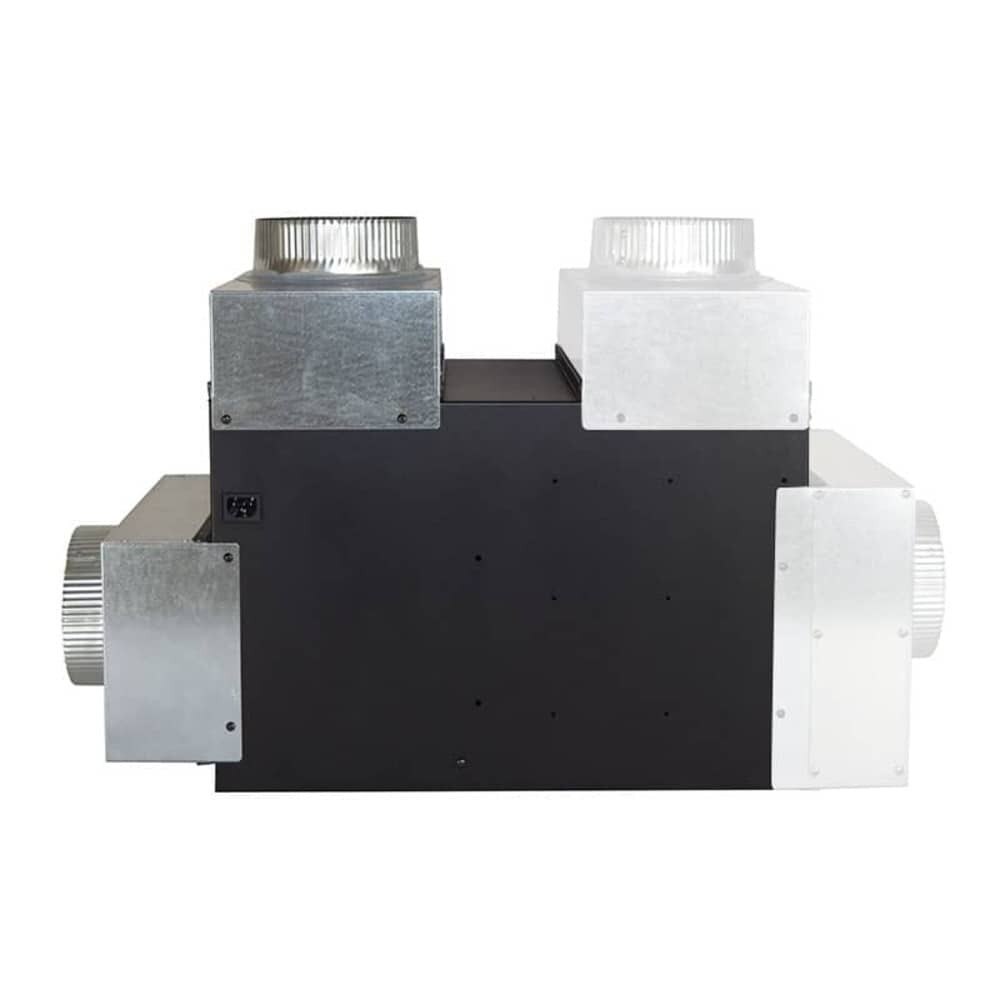

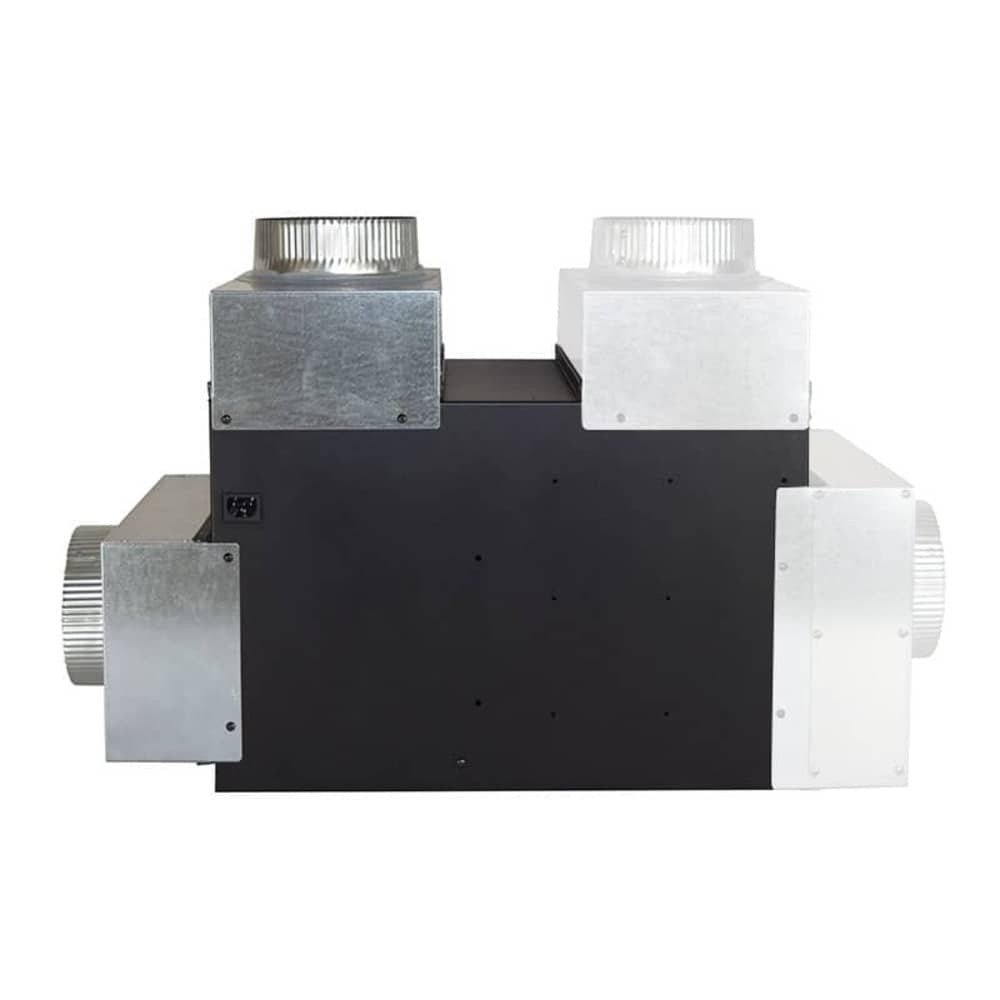

• Attaches easily to the rear of 2000 VSi wine cooling units

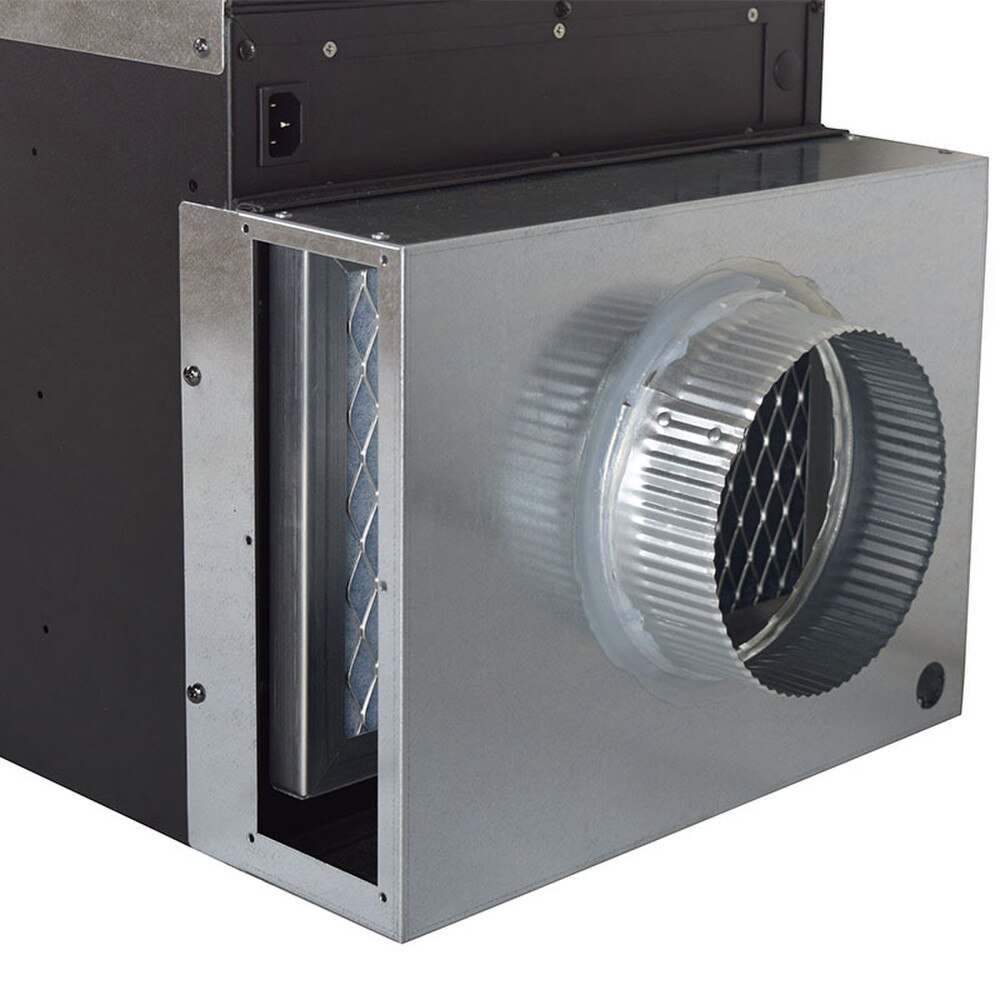

• Provides quick access to removable air filter
• Designed for easy hook-up to 6" ducting

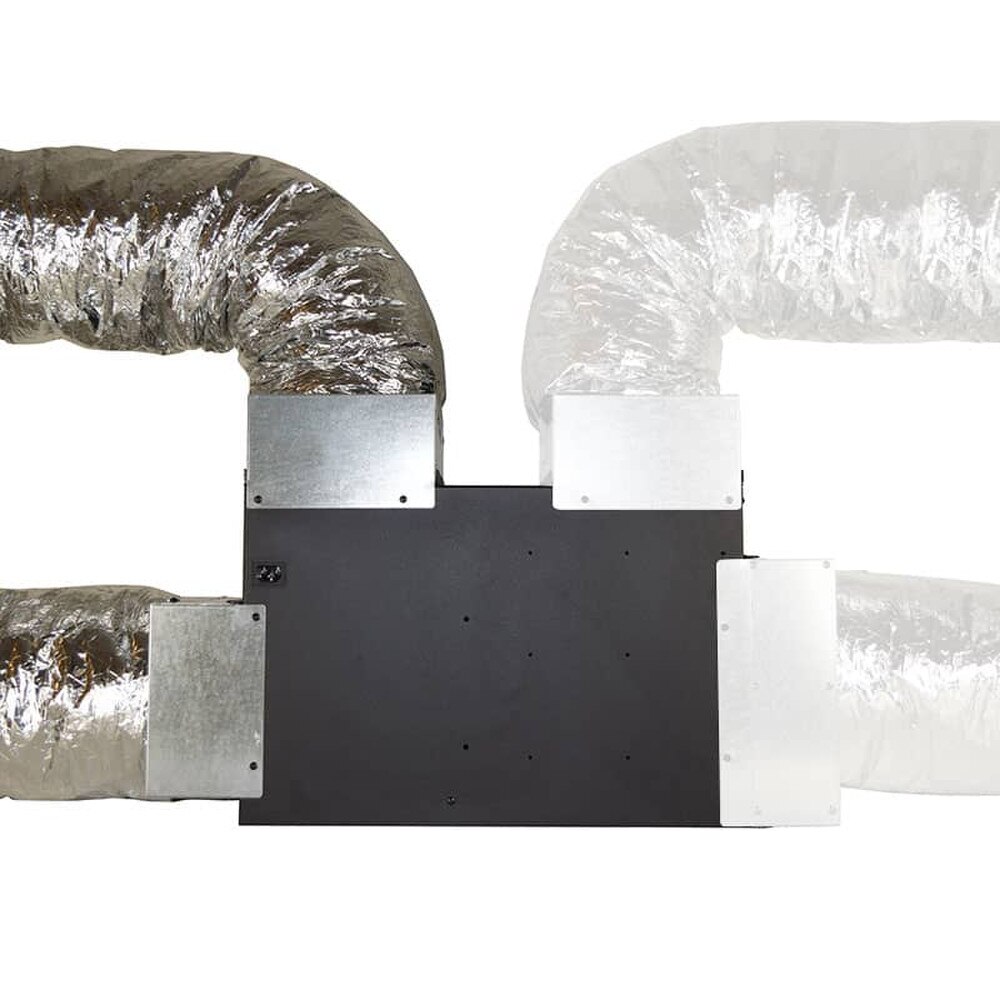

• One or both openings may be ducted (total of 50 equivalent feet)
• Cold-rolled, thick-gauge steel

Brand: CellarPro

Size: As installed: Exhaust: 14 1/4w x 3 3/4d x 7 1/2h (in) / Intake: 14 1/4w x 3 3/4d x 10 1/2h (in)

Weight: 35 lbs

Capacity: 50 Equivalent Feet

Warranty:
1 Year

Click on one of the following links for more information:

• Framing Diagram
• As Ducted Diagrams
• Ducting Installation Best Practices
