Large VS Duct HOOD Cold Insulated RETROFIT #36508
Overview
Insulated retrofit cold-side duct hood for CellarPro 6200VSi / 6200VSx and 8200VSi / 8200VSx cooling units installed in unconditioned environments. Allows the cold air intake and exhaust to be ducted up to 100 equivalent feet (50 feet per opening). Designed for units that have already shipped; insulated 10-inch ducting is not included.
Details
CP Large VS Duct HOOD Cold Insulated RETROFIT #36508 (P/N 36508. This insulated retrofit duct hood is recommended for installations when the evaporator will be located in an unconditioned environment, and is compatible with the following cooling units:
- CellarPro 6200VSi / 6200VSx
- CellarPro 8200VSi / 8200VSx
Each duct is designed to attach to insulated 10-inch ducting (not included) for cold air exhaust to, and return air from, the wine cellar, up to 100 equivalent feet (50 feet per opening) while providing access to controls and switches on the face of the cooling unit. The exhaust exits from the top, and the intake returns from the cold side.
Kit includes:
- Insulated cold-side intake and exhaust duct hoods
- Additional insulation for unconditioned environments

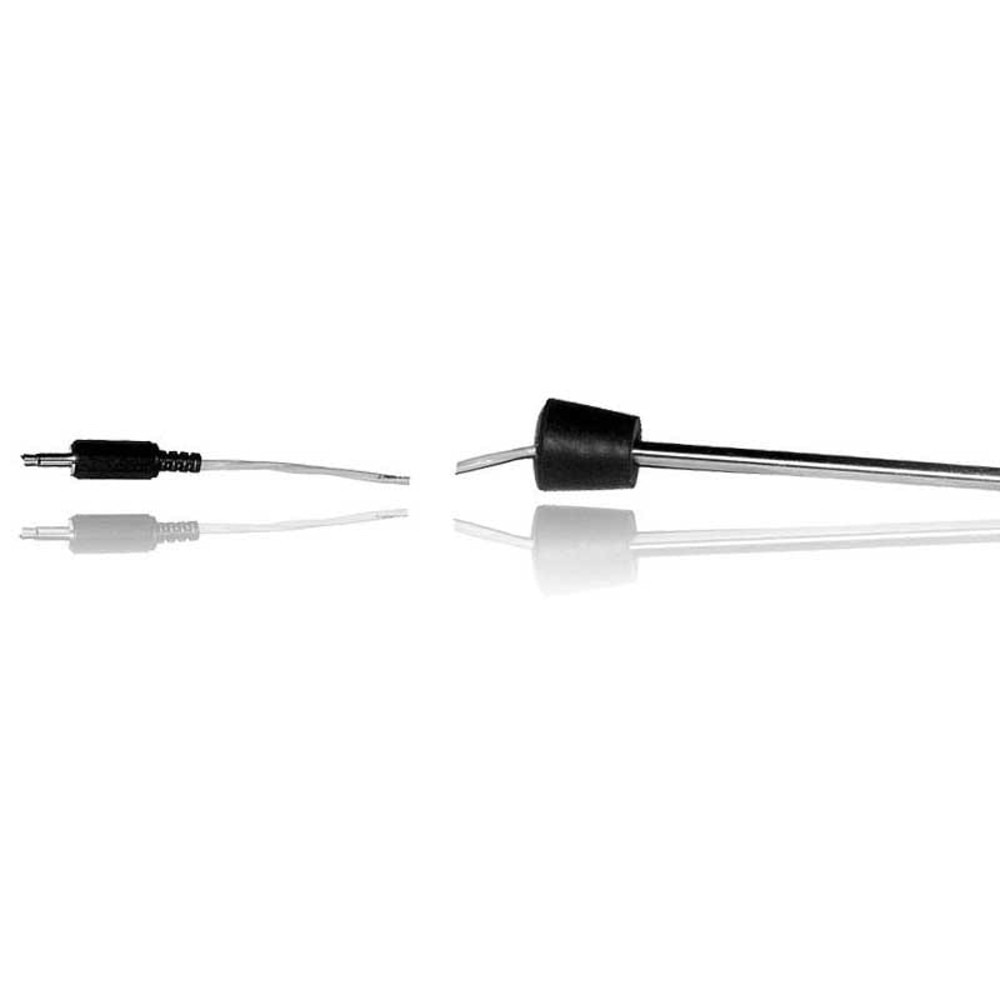

- Bottle probe with 10-foot cord
- Retrofit remote control display kit
Insulated 10-inch ducting is not included.
This retrofit item is intended for cooling units that have already shipped and should be installed by a qualified local technician.
Important notes:
- The high fan speed setting MUST be used anytime the cooling unit is ducted
- The size of the ducting must not be reduced or restricted
- Use of a custom duct hood will void the manufacturer's warranty
Features

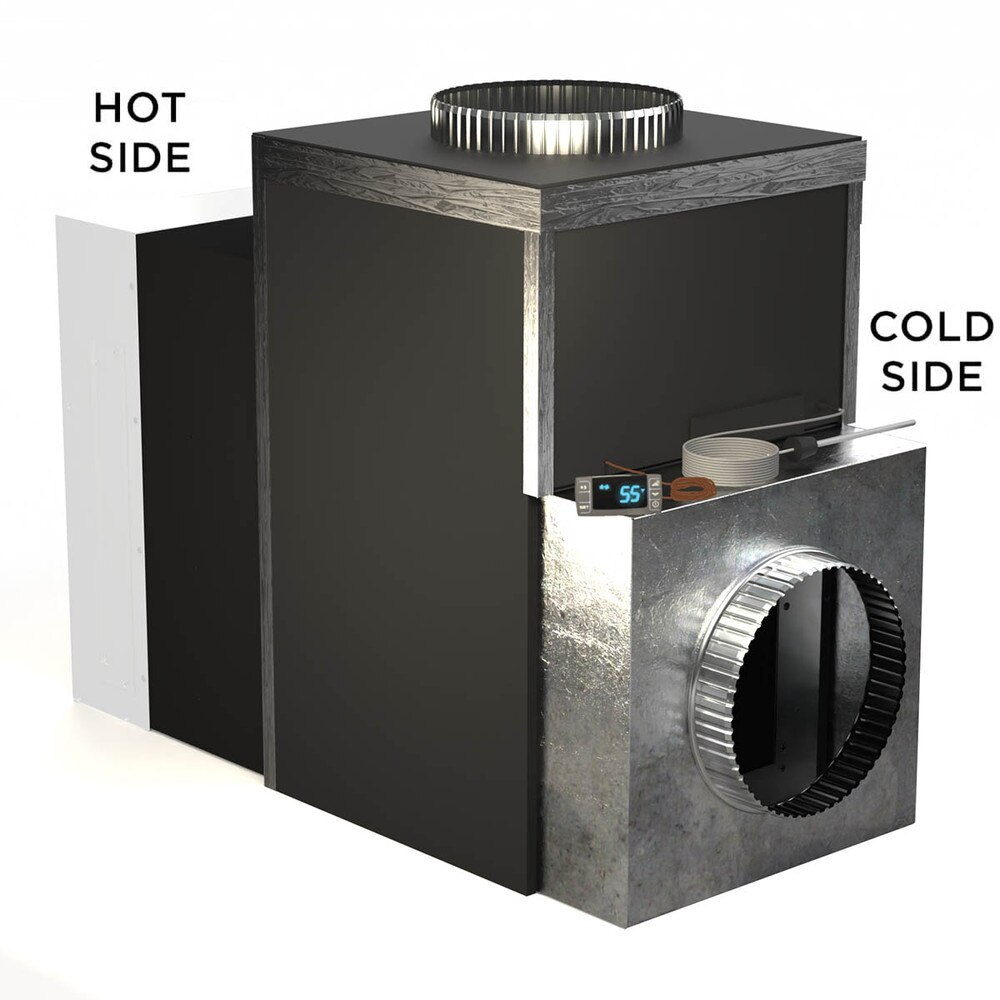

Custom duct kit RETROFIT for CellarPro 6200 / 8200 VS cooling units. With this kit, the cold air intake and exhaust each can be ducted up to 100 equivalent feet (50 feet per opening).
- Attaches easily to the front (intake) and top (exhaust) of 6200/8200 VS refrigeration systems
- Provides access to cooling unit control panel and switches
- Designed for easy hook-up to 10" ducting
- Both openings must be ducted (total of 100 equivalent feet) to/from the cellar
- Bottle probe with 10' cord plugs into face of the cooling unit
- Extra insulation for HIGH Humidity environments
- Designed for use when the cooling unit has shipped
Specs & Resources
Brand: CellarPro
Size: 14 1/4w x 4 3/4d x 27 1/2h (in)
Weight: 35 lbs
Capacity: 100 Equivalent Feet
