Small VS Duct HOOD Cold Insulated RETROFIT #17328

Small VS Duct HOOD Cold Insulated RETROFIT #17328 (P/N 17328. This insulated retrofit duct hood is recommended for installations when the evaporator will be located in an unconditioned environment, and is compatible with the following cooling units:

• CellarPro 3200VSi, 3200VSx
• CellarPro 4200VSi, 4200VSx
• CellarPro 3000S
• CellarPro 4000S

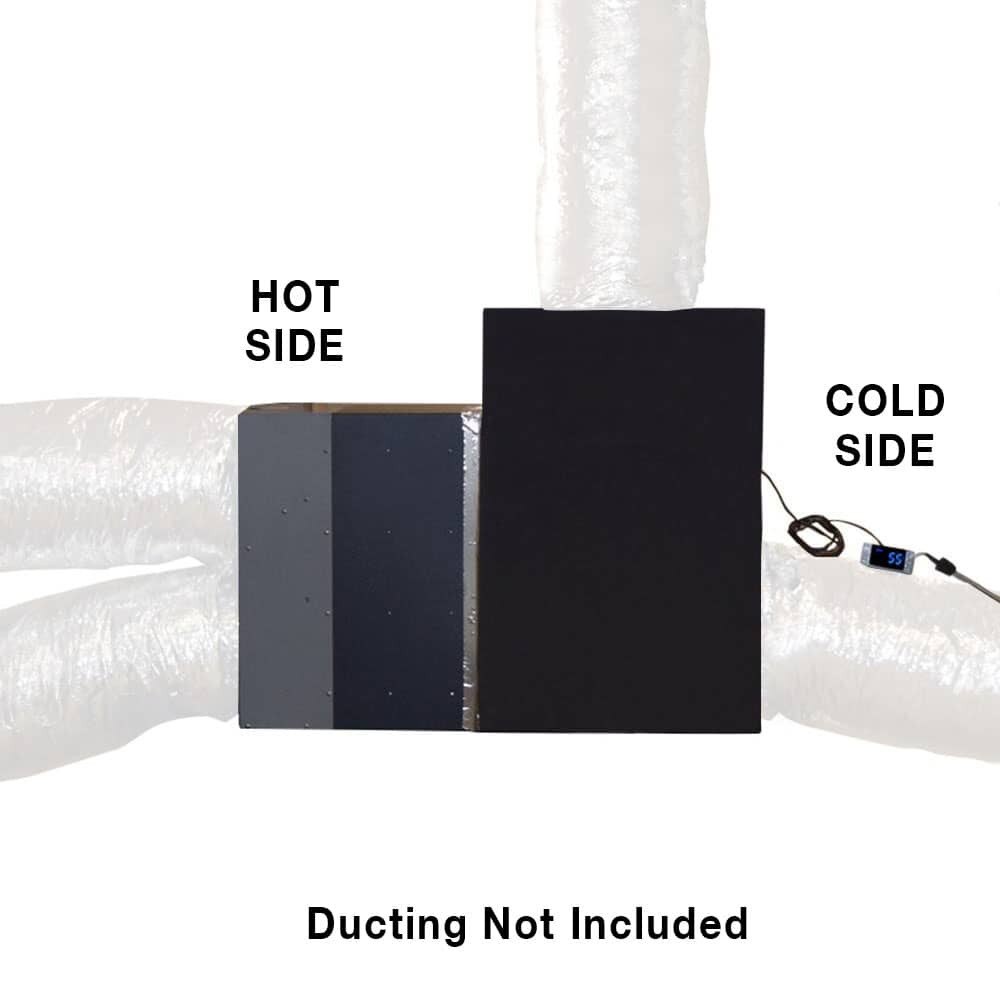

Each duct is designed to attach to insulated 8-inch ducting (not included) for cold air exhaust to, and return air from, the wine cellar, up to 100 equivalent feet (50 feet per opening) while providing access to controls and switches on the face of the cooling unit.

Requires 9 inches of additional height at the cold side of the cooling unit.

Kit includes:

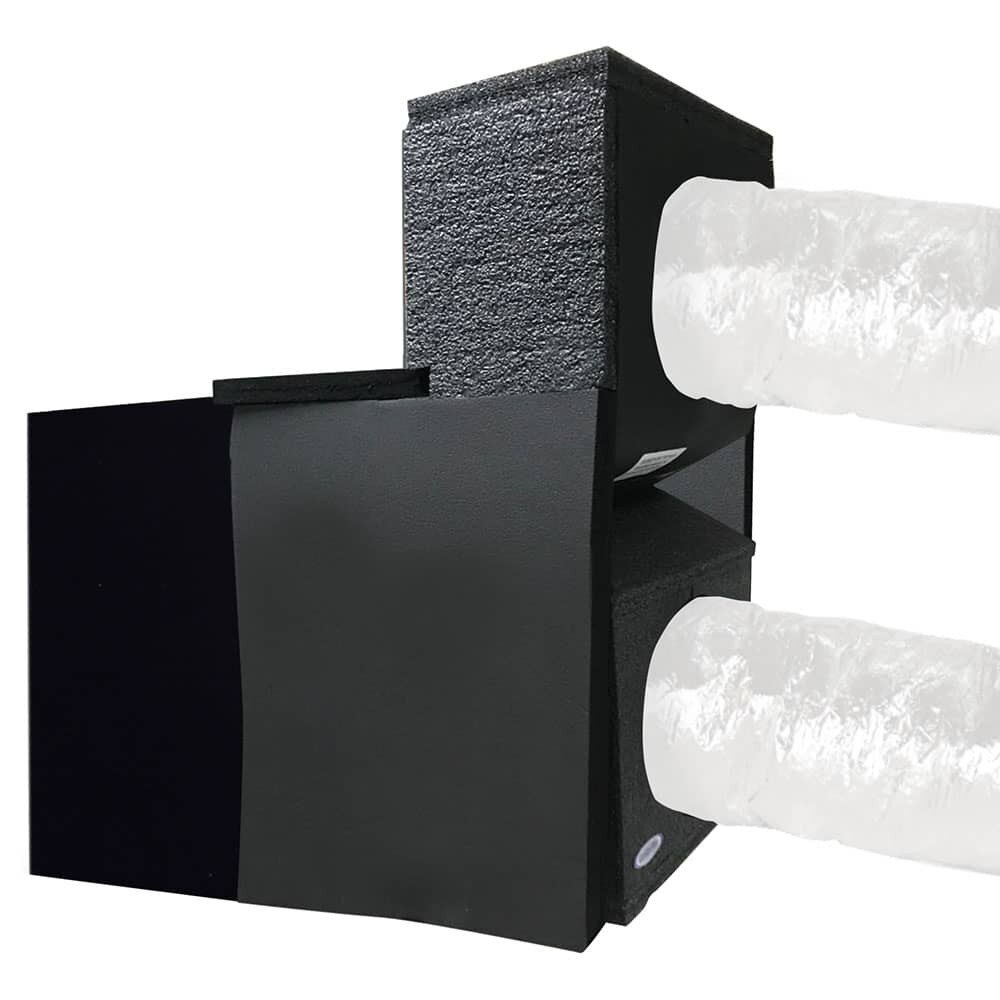

• Insulated cold-side intake and exhaust duct hoods
• Additional insulation for unconditioned environments

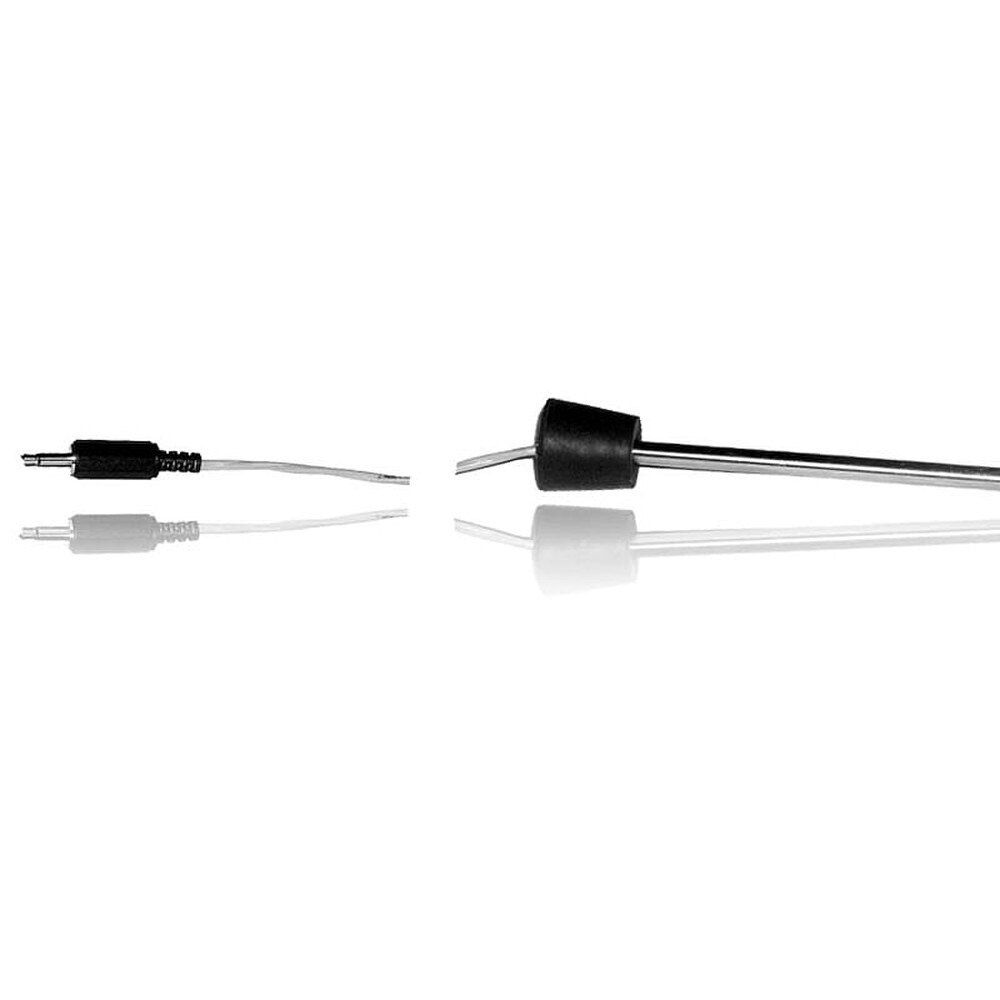

• Bottle probe with 10-foot cord
• Retrofit remote control display kit

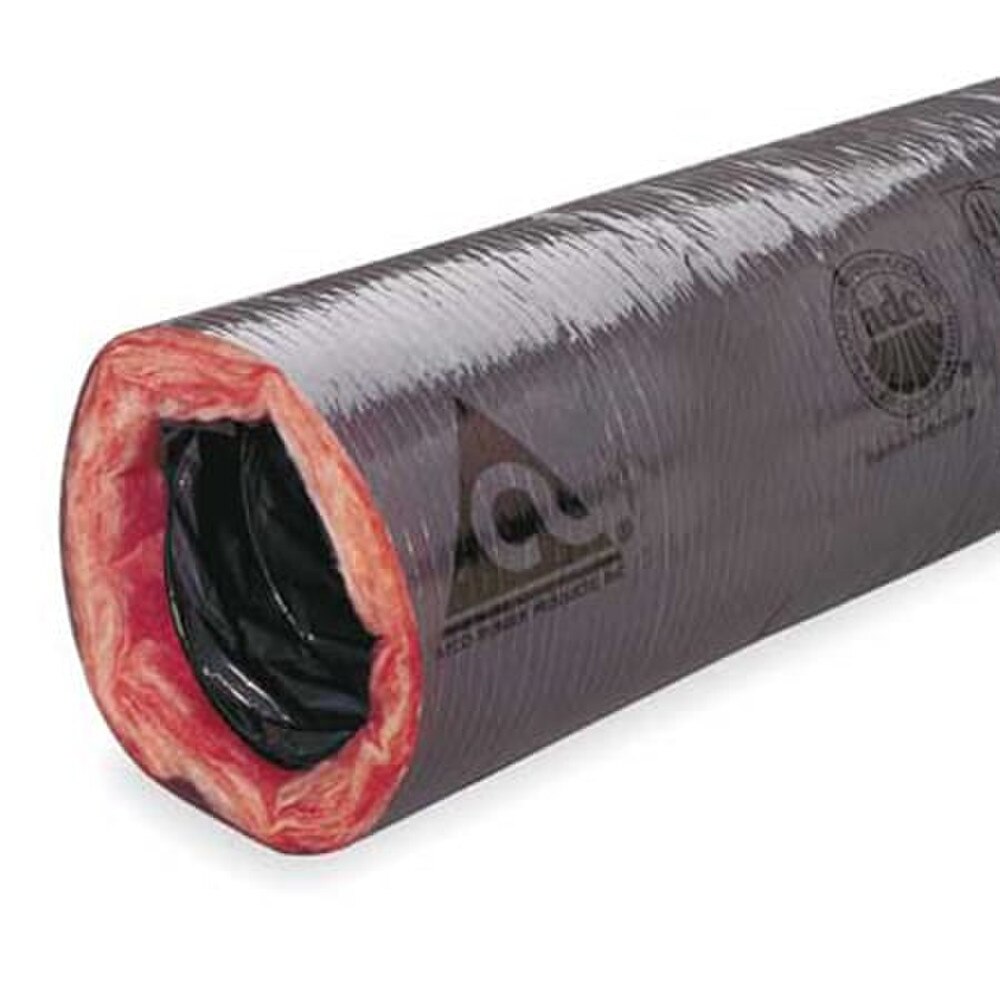

Insulated 8-inch ducting is not included.

This retrofit item is intended for cooling units that have already shipped and should be installed by a qualified local technician.

Important notes:

• The high fan speed setting MUST be used anytime the cooling unit is ducted
• The size of the ducting must not be reduced or restricted
• Use of a custom duct hood will void the manufacturer's warranty

Custom duct HOOD for CellarPro 3200 / 4200 VS and 3000S / 4000S Split Refrigeration Systems. With this kit, the cold air intake/exhaust can be ducted up to 100 equivalent feet (50 feet per opening). Insulated ducting is not included.

• Attaches easily to the front of 3200/4200 VS and 3000S/4000S Split refrigeration systems
• Appropriate for Unconditioned / High-humidity environments
• Provides access to cooling unit control panel and switches
• Designed for easy hook-up to insulated 8" ducting (not included)
• Both openings must be ducted (total of 100 equivalent feet) to/from the cellar
• Maintains accurate temperatures inside the wine cellar
• Includes our remote thermostat bottle probe (measures air or liquid temperatures)
• Includes our remote control display kit
• Designed for use when the cooling unit has shipped, to be installed by a local tech

Please refer to the following resources before purchasing this kit:

• This duct hood is required when the cooling unit will be installed in unconditioned environments, subject to the limitations listed in our Low RH vs High RH Duct Kit Chart. In some cases, the conditions are too extreme for any of our cold-side duct kits.
• Use our ducting heat loss table and our duct correction table to correctly adjust the sizing of your cooling unit, because ducting will add to the thermal load of the cellar.
• Refer to our Bottle Probe Operating Instructions to correctly set the cooling unit depending on how you're using the Bottle Probe

Brand: CellarPro

Size: 14 1/4w x 4 3/4d x 27 1/2h (in)

Weight: 45 lbs

Capacity: 100 Equivalent Feet

Warranty:
1 Year

Click on one of the following links for more information:

• Front Duct Hood Cut Sheet
• Framing Diagram
• Installation Diagrams
• Installation Instructions 3000S / 4000S
• Installation Instructions 3200VS / 4200VS
• Ducting Installation Best Practices
