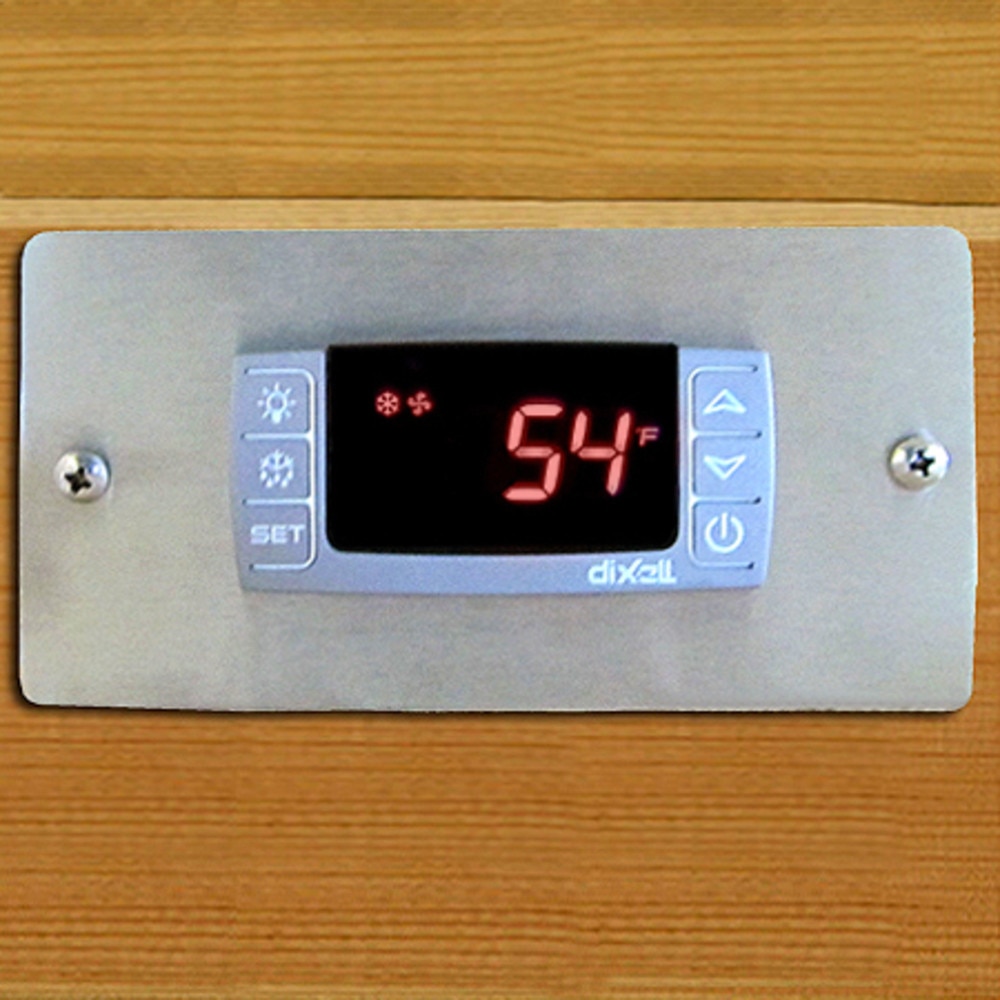

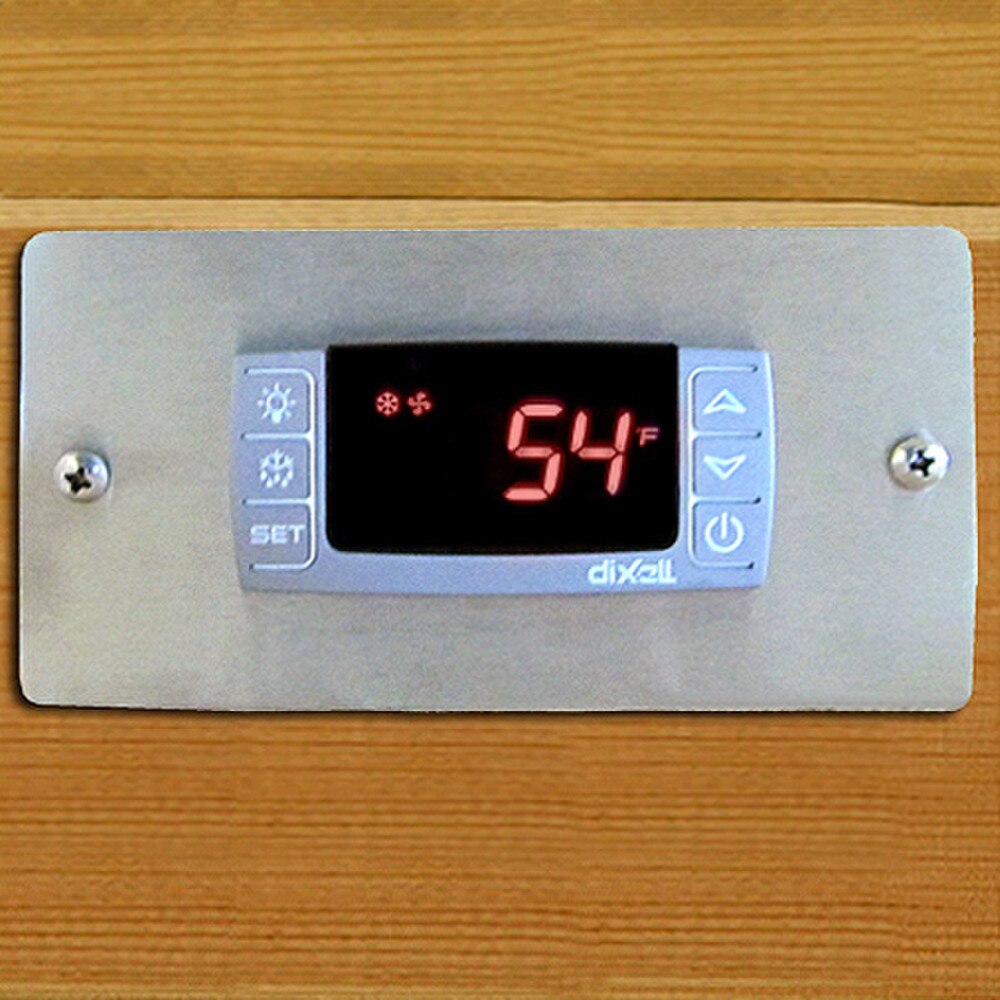

Remote LED Display Kit Factory Installed #1603

Our remote display and control kit allows the LED Display Panel to be placed remotely, inside or outside the cellar, instead of on the face of the cooling unit. The LED Display panel connects via 18-gauge low-voltage wiring to a power module inside the cooling unit.

Remote LED Display Kit Factory Installed (P/N 1603). Our wired remote LED display and connected power module replace the standard controller on the cooling unit, and allows the LED display to separated from the cooling unit and located inside or outside the cellar.

Features include:

• Connected via 10 feet of 18-gauge low voltage wiring*
• Can be installed anywhere that's convenient for you, inside or outside the wine cellar
• Provides all features and functionality of the standard controller
• Perfect for cooling units that will be installed in remote or hard-to-reach locations
• Kit requires both components - the LED display and the power module
• This kit must be ordered with the cooling unit and factory installed
• Includes a stainless steel wall mounting plate and screws

*If you'd like more than 10 feet of wire, let us know when you checkout in the "special instructions" field. We charge $0.50 per foot after the first 10 feet.

Please note:

• Neither variable speed fans nor the condensate evaporator (not available on all units) are controlled by the standard controller and the remote display/control kit
• The LED display panel has a red (not blue) display
• The Remote LED Display Kit replaces the standard controller of the cooling unit
• This item must be purchased at the same time as the cooling unit because it must be installed in the factory**

**If your cooling unit has already shipped, one of the retrofit kits must be purchased instead.

Refer to the Resources tab (below) for drawings and installation guides.

• Connected via 10 feet of 18-gauge low voltage wiring*
• Can be installed anywhere that's convenient for you, inside or outside the wine cellar
• Provides all features and functionality of the standard controller
• Perfect for cooling units that will be installed in remote or hard-to-reach locations

• Includes a stainless steel wall mounting plate

Brand: CellarPro

UPC: 077757016035

Size: 2 3/4w x 1 1/4d x 1 1/4h (mounting) (in)

Weight: 0.75 lbs

Warranty:
1 Year

Cut Sheet for Remote Display Control [PDF]

Cut Sheet for Remote Wall Plate [PDF]

Installation Guidelines for Remote Display Control
