1800H Houdini Duct HOOD Hot + Fan #35645
Overview
Allows the hot side of CellarPro 1800H Houdini cooling units to be ducted up to 100 equivalent feet (50 feet per duct) using 6-inch ducting with no reductions from start to finish.
Details

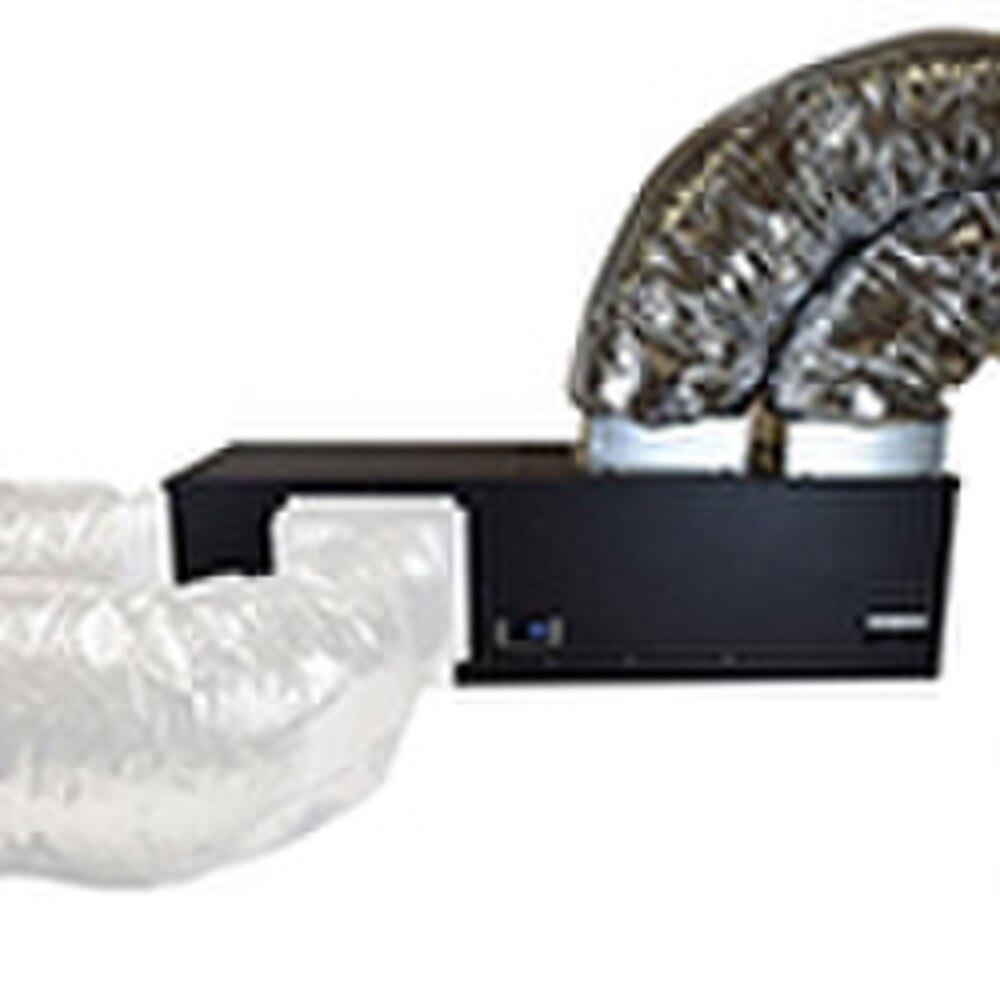

CellarPro 1800H Houdini Duct Hood (Hot Side) with Inline Fan (P/N 35645). These duct hoods are designed exclusively for the hot side of CellarPro's 1800H Houdini cooling unit, as follows:
- Attach to the hot side airflows (intake and exhaust), allowing the cooling unit to push its exhaust and/or pull its fresh air from remote locations (but not from the cellar), mitigating tight installations with insufficient space around the cooling unit, as follows:

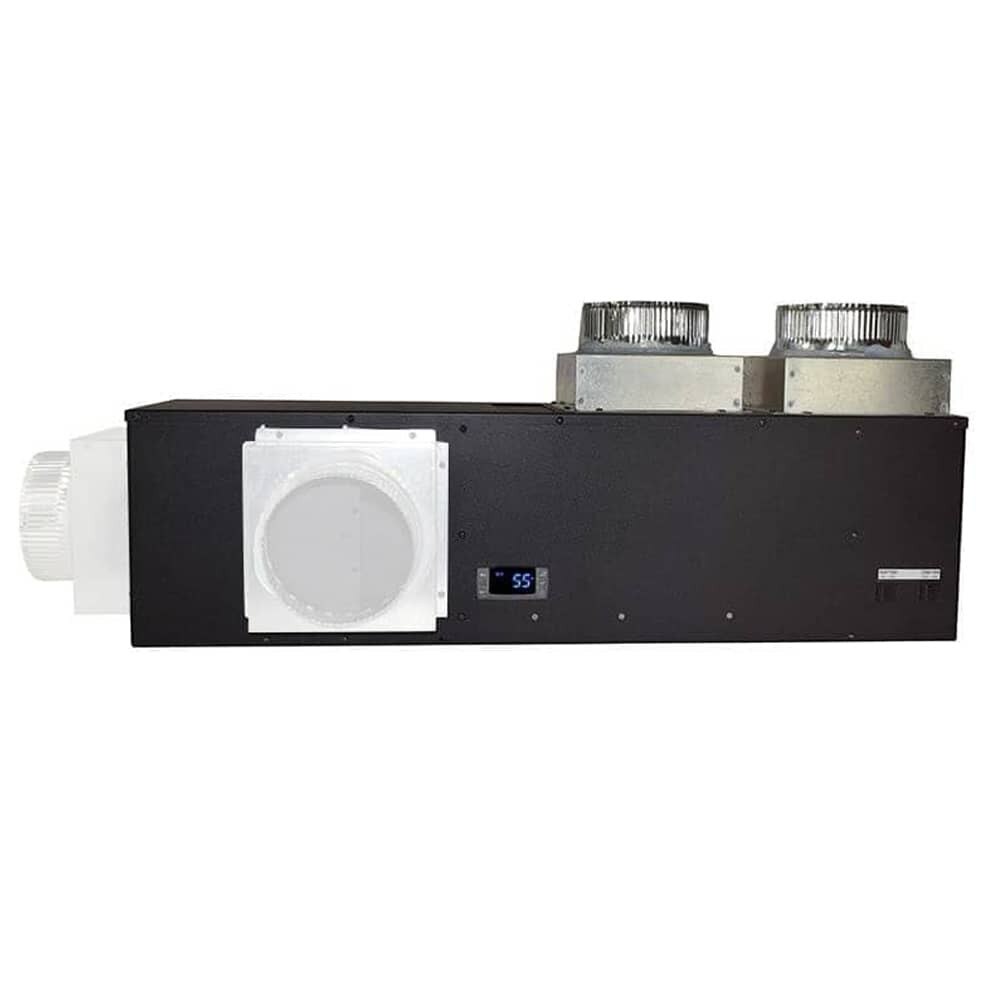

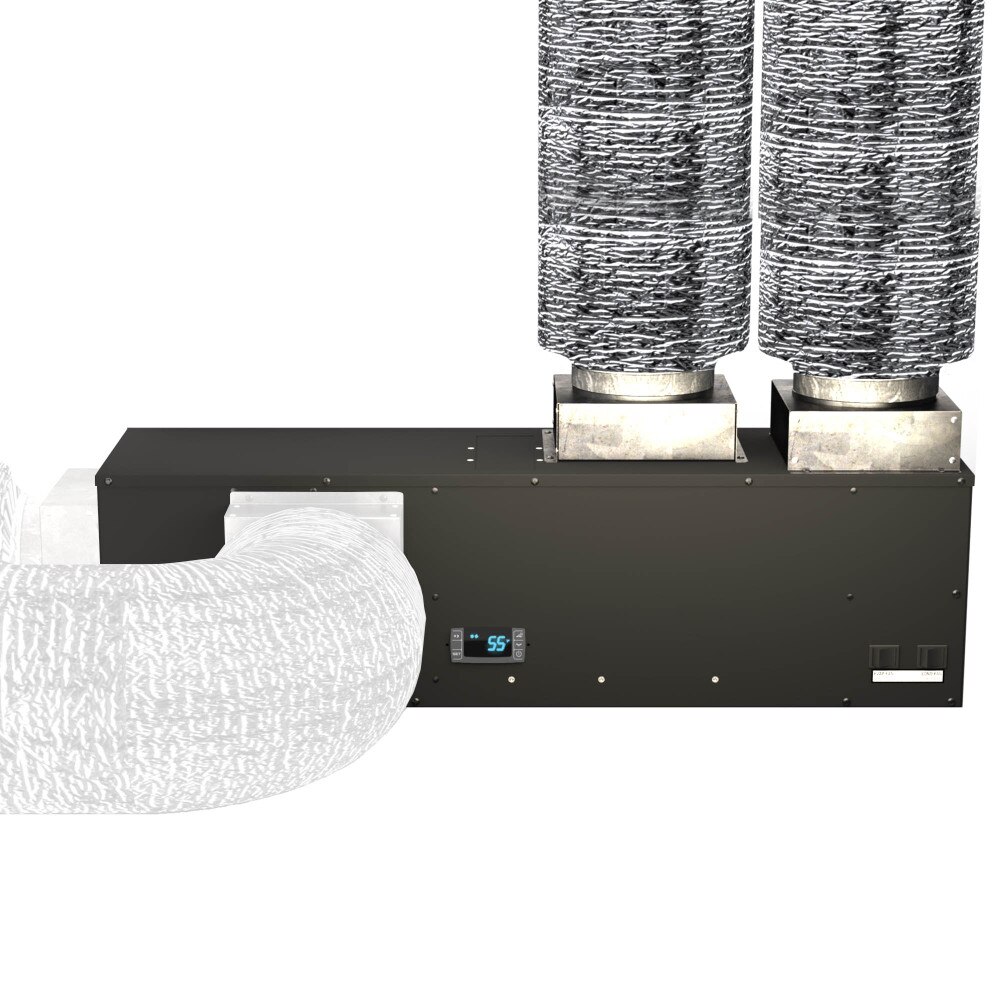

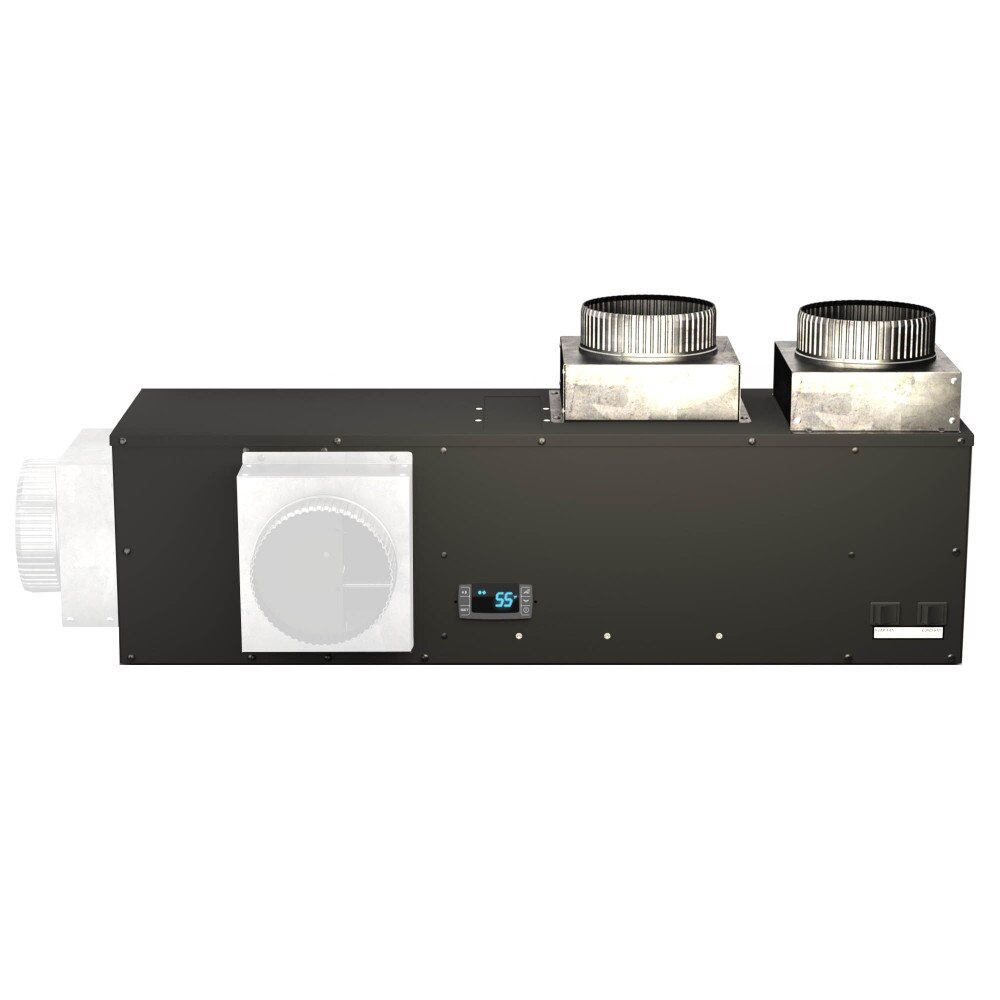

- Fresh air intake: can be ducted from the top (shown) or the right side of the cooling unit
- Hot air exhaust: can be ducted from the top (shown) or the rear of the cooling unit
Each bundle includes:
- 2 hoods (1 for intake and 1 for exhaust, both on the hot side)

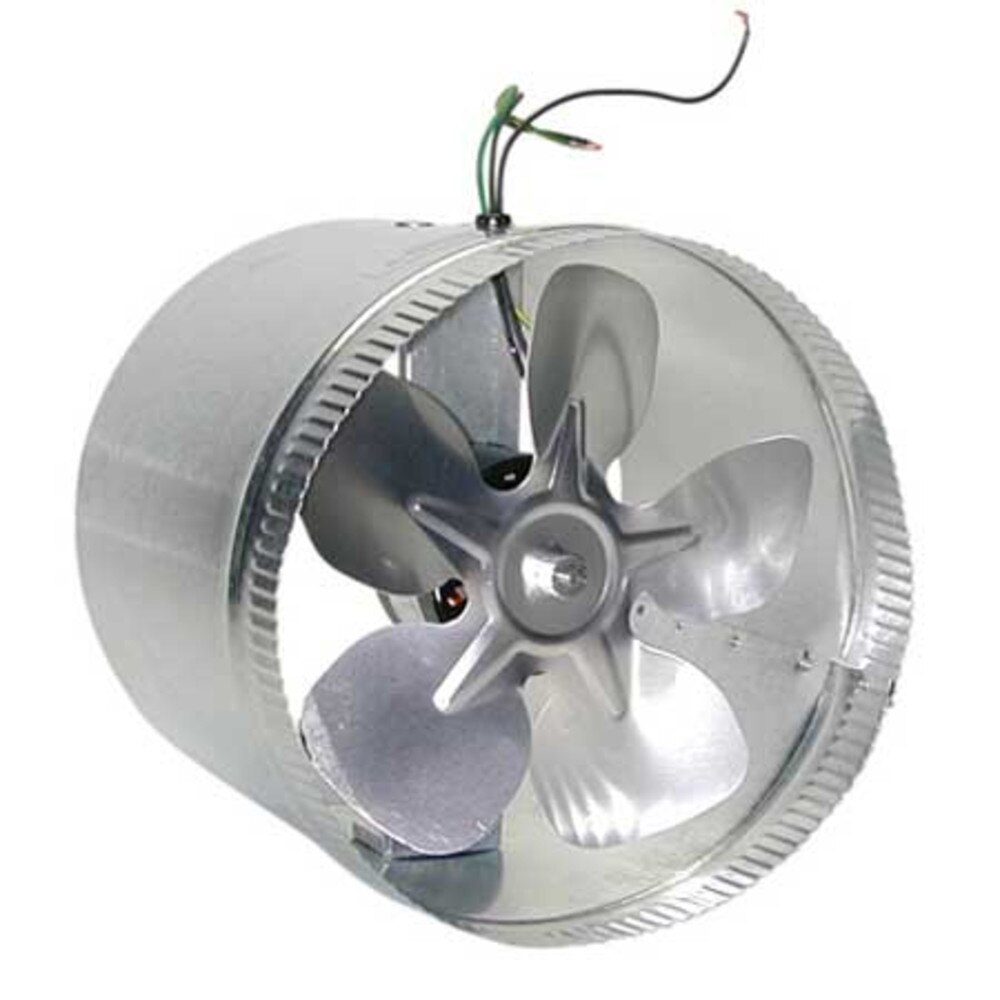

- 1 inline fan with wiring for switched-power
Please note:

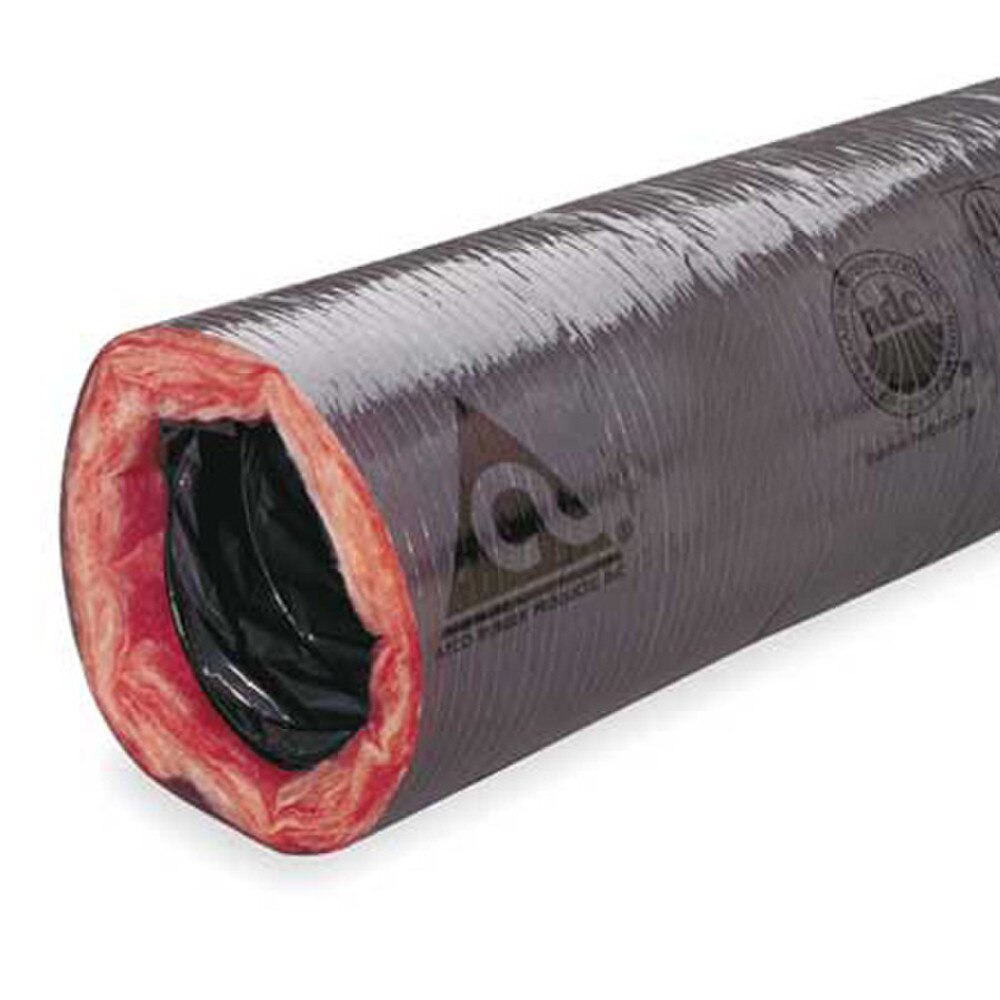

- Insulated flex ducting is not included with this bundle. If you'd like to purchase the bundle WITH ducting, please order item 30352 instead
- Ducting must be 6-inch diameter or equivalent from start to finish
- The duct hoods MUST be used for the hot side; the cold side CANNOT be ducted with a fan
The maximum length of ducting is 100 equivalent feet with the fan.
Features
- Designed to work with hot-side airflow openings on the 1800 Houdini cooling unit
- Includes an inline fan and wiring for switched power from the cooling unit
Specs & Resources
Brand: CellarPro
Size: 5 3/4w x 5 3/4d x 4 3/4h
Weight: 26 lbs
Power/Rating:
115V, 60 Hz, 0.6 amps (Inline Fan)
Capacity: 100 Equivalent Feet
Warranty:
1 Year

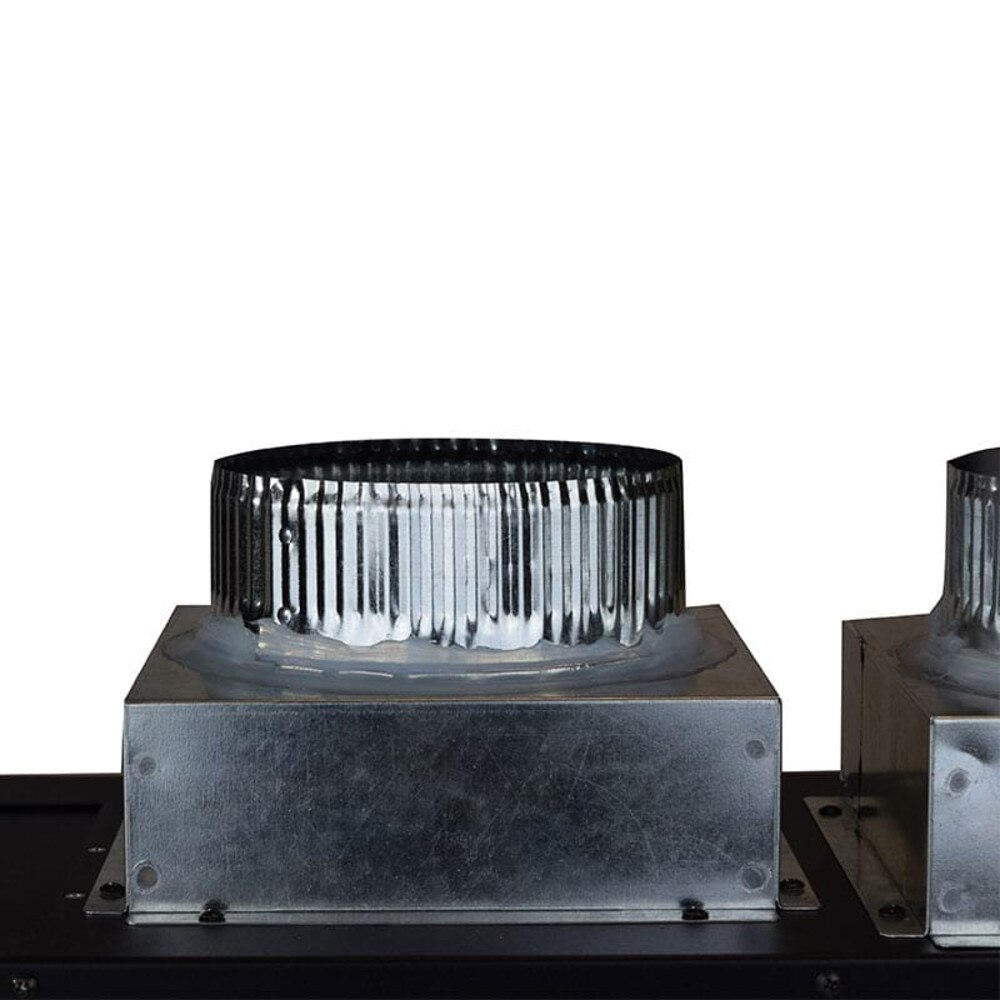

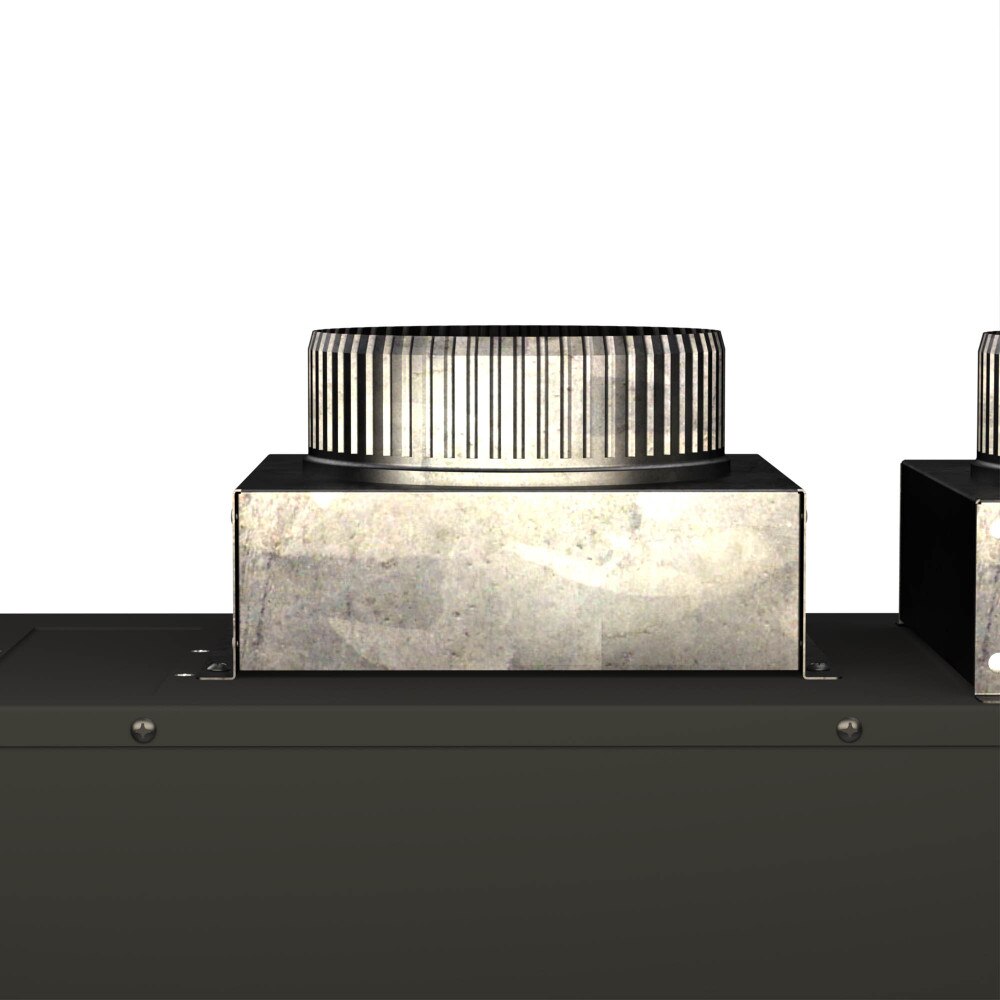

The height of the hood (2 1/2 (in)) plus the height of the 6-inch duct collars (2 1/4 (in)) is 4 3/4. The hood is designed to attach to the cooling unit for use with the hot-side airflows (intake and exhaust). Click on one of the following links for more information:
