CellarPro VS Duct HOOD (Hot Side) #7407

Custom duct hood for CellarPro 3200 and 4200 Series wine cooling units. With this hood and a minimum of 8-inch ducting from start to finish (not included), the hot air intake/exhaust can be ducted up to 100 equivalent feet (50 feet per opening).

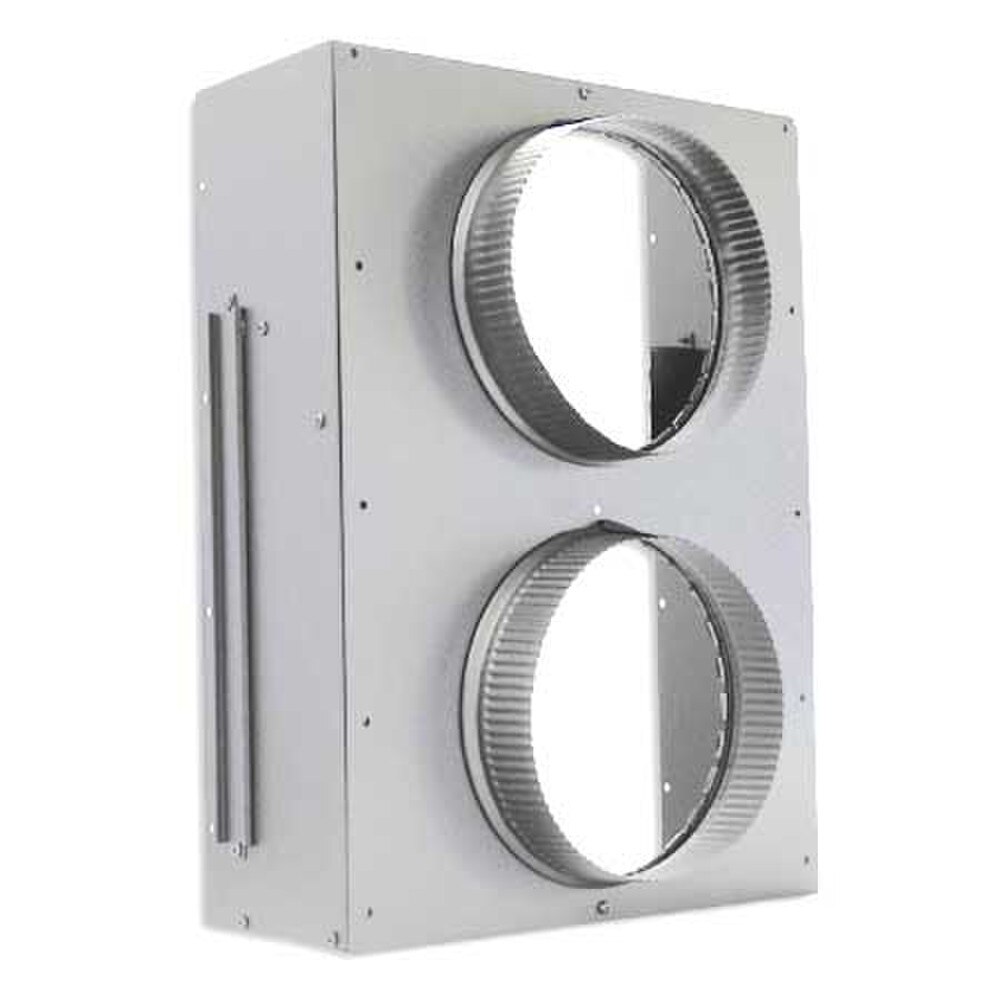

CellarPro 3200/4200 Duct HOOD (Rear) (P/N 7407). Duct openings are designed to attach to two 8" ducts (not included) for condenser intake and exhaust. Removable slot plate provides easy access to removable air filter.

Please note: The high fan speed setting is required whenever the cooling unit is ducted. The diameter of the ducting must be 8- inches or greater from start to finish, and must not be reduced.

• Attaches easily to the rear of 3200 and 4200 wine cooling units
• Provides quick access to removable air filter
• Designed for easy hook-up to 8" ducting (not included)
• One or both openings may be ducted (total of 100 equivalent feet)
• Powdercoated, cold-rolled, thick-gauge steel

Brand: CellarPro

Size: 14 1/2w x 8d x 19 3/4h (in)

Weight: 13 lbs

Capacity: 100 Equivalent Feet

Warranty:
1 Year

Click on one of the following links for more information:

• Rear Duct Hood Cut Sheet
• 3200 / 4200 + Combined Cut Sheets (As Ducted)
• Framing Diagram
• Installation Diagrams
• Ducting Installation Best Practices

The depth of the hood includes 2 1/4 (in) for the 8-inch dia. duct adapters. The hood is designed to slide over the rear of the cooling unit, and will overlap the cooling unit by approximately 1 inch.
