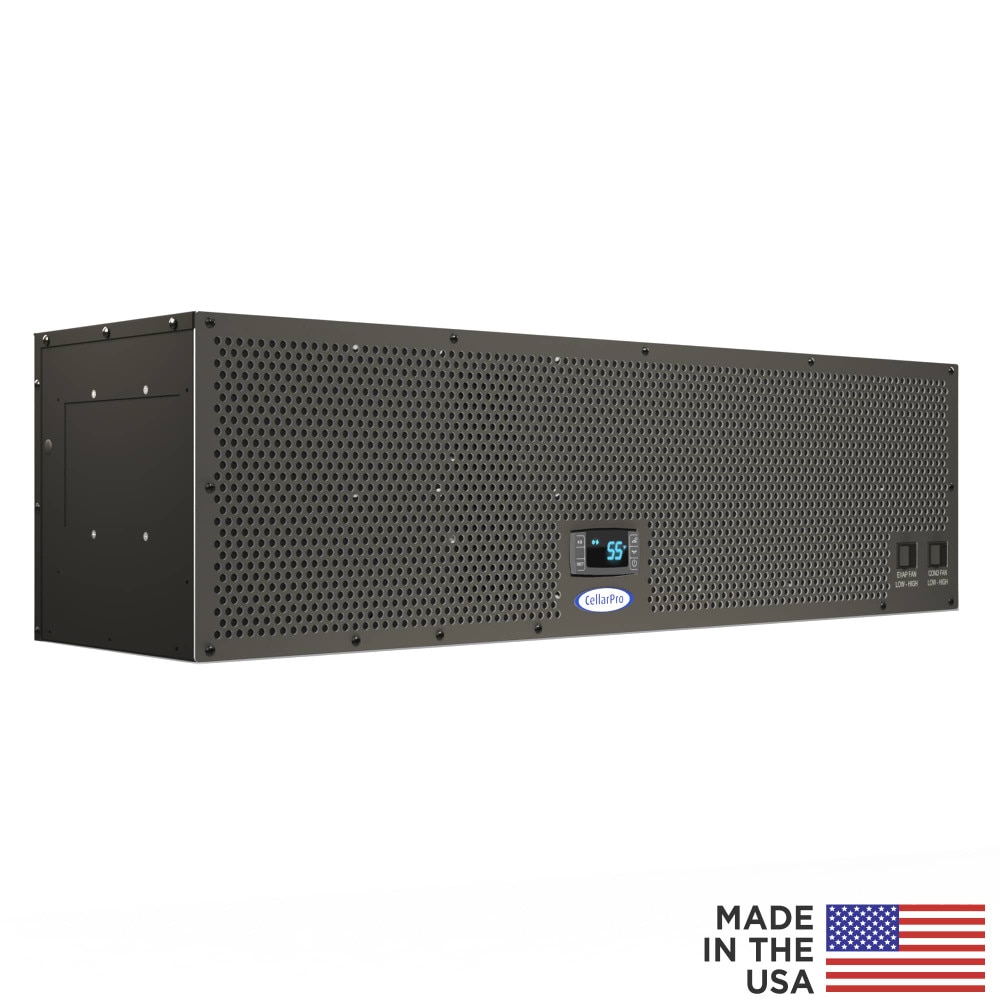

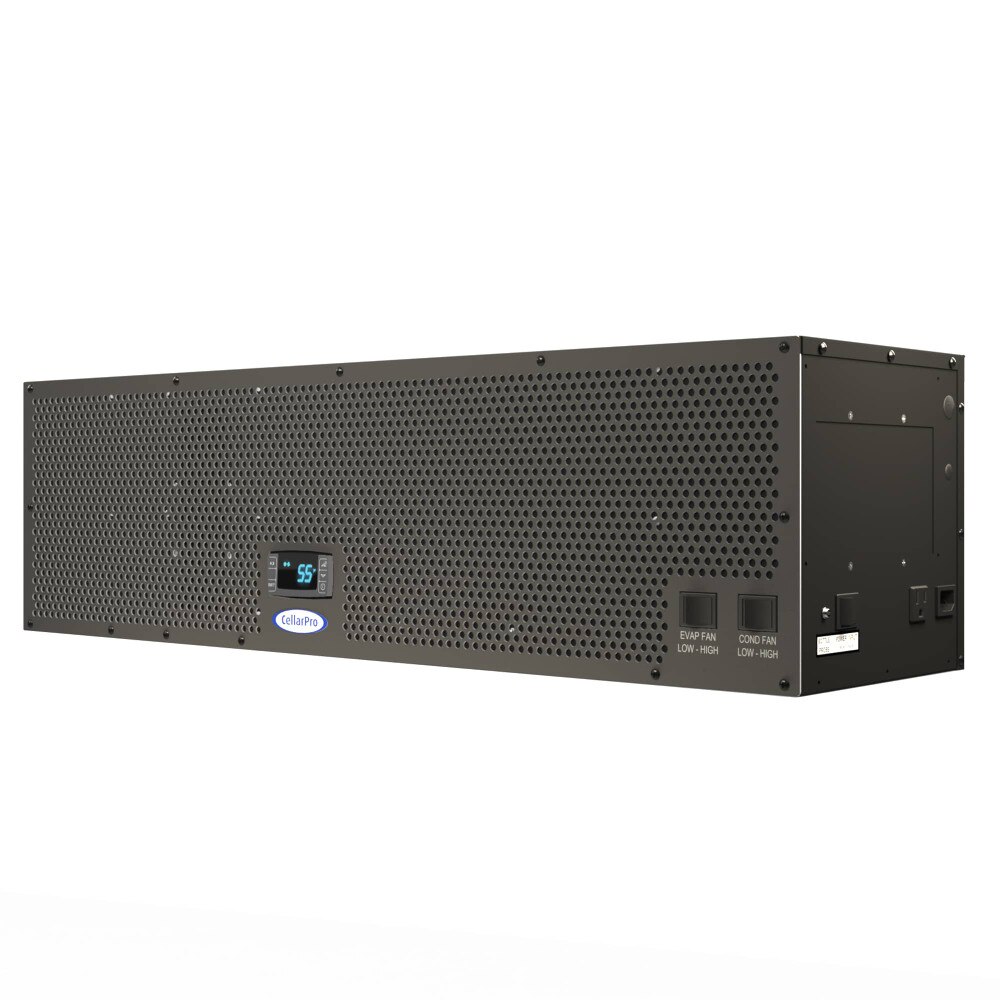

Self Contained 1/4 Ton 1800H-HE Houdini #37402

CellarPro 1800H-HE Houdini Cooling Unit (P/N 37402). CellarPro engineered the 1800H-HE Houdini specifically for shallow-depth glass wine cellars, combining a low-profile design with an upgraded low-GWP R-290 compressor, energy-efficient EC fans and longer-lasting aluminum coils.

Just 10 1/2 inches deep and 10 inches tall, the 1800H-HE Houdini cooling unit is designed to “disappear” inside — or atop — the cellar. Dual independent variable-speed EC fans offer flexibility to balance quiet operation with maximum cooling performance.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake cannot come from the wine cellar space — it must come from space outside the cellar.

CellarPro 1800H-HE Houdini wine cooling units deliver 1900 BTUH total / 1505 BTUH sensible capacity at 55F, providing 1/4-ton cooling for shallow-depth glass-enclosed wine cellars using appropriate sizing assumptions.* Designed specifically for modern glass wine displays, the 1800H-HE Houdini combines a compact, low-profile design with flexible airflow configurations, making it ideal for installations where standard cooling units are too deep or visually intrusive. This upgraded HE model features a powerful low-GWP compressor, upgraded EC fans, longer-lasting aluminum coils and robust components engineered for demanding glass-cellar installations.

Just 10 1/2 inches deep and 10 inches tall, the 1800H-HE Houdini is designed to sit inside the cellar, atop the cellar, partially in the cellar ceiling or remotely from the cellar with approved ducting. Dual independent variable-speed EC fans provide flexibility to balance quiet operation with maximum cooling performance.

For example, using the following assumptions, the 1800H-HE Houdini would be sized appropriately for the following applications*:

• Proper construction with a vapor barrier,
• R13 insulation in the non-glass walls, ceiling and floor,
• 75F ambient temperature surrounding the cellar, and
• No ducting

*Glass-enclosed wine cellars require careful sizing based on glass area, glass type, ambient conditions, insulation, target cellar temperature and airflow configuration. Deviation from these assumptions should be evaluated using our online Wine Cellar Cooling Calculator.

Key Benefits

• High-performance cooling: 1900 total / 1505 sensible BTUH @ 55F for demanding shallow-depth and glass-enclosed wine cellars
• Low-GWP system: R-290 refrigerant with ultra-low GWP and zero-ODP
• EC fan technology: variable-speed EC fans provide efficient airflow with independent fan controls
• Shallow-depth design: just 10 1/2 inches deep and 10 inches tall for low-profile installations
• Glass-cellar application: engineered for shallow-depth glass-enclosed wine cellars when properly sized
• Flexible installation options: can be installed inside the cellar, atop the cellar, partially in the cellar ceiling or remotely with approved ducting
• Longer coil life: aluminum evaporator coils help resist formicary corrosion and support longer service life
• Adjustable humidity control: helps protect cork integrity and wine labels

Performance Overview

• Setpoint range: 51F–62F when the cooling unit is sized correctly
• Designed to maintain ideal cellar conditions: helps maintain temperature and humidity levels that support cork and label protection
• Best fit: shallow-depth glass-enclosed wine cellars requiring 1/4-ton cooling power
• Fan-speed flexibility: dual independent variable-speed EC fans allow customers to balance quiet operation with maximum cooling performance
• Low fan speed performance: 1283 sensible BTUH @ 55F, with 51F as the lowest achievable cellar temperature
• High fan speed performance: 1505 sensible BTUH @ 55F, with 51F as the lowest achievable cellar temperature

Compatibility & Replacement Guide

The 1800H-HE Houdini is an upgraded replacement for:

• CellarPro 1800H-ECX Houdini

The 1800H-HE Houdini cooling unit is a strong upgrade for customers seeking:

• A low-profile wine cooling unit for shallow glass enclosures
• A more energy-efficient 1/4-ton wine cellar cooler
• A modern R-290 wine storage cooling solution
• Flexible airflow and ducting options for challenging installations

Installation Requirements

For optimum performance and warranty coverage, the 1800H-HE Houdini must be installed in a properly insulated, airtight wine cellar with a vapor barrier. Glass-enclosed cellars require special attention to glass type, total glass area, insulation, ambient temperature and target cellar temperature.

Recommended conditions and sizing assumptions:

• Properly insulated, airtight construction with vapor barrier
• Correctly sized glass area based on cellar dimensions, glass type and target cellar temperature
• Ambient temperature evaluated based on the installation location
• Fresh air intake must come from outside the wine cellar
• Deviation from these assumptions should be evaluated using our online Wine Cellar Cooling Calculator

Airflow and ducting guidelines:

• When not ducted, the cold side can be configured to intake from the bottom or left side
• When not ducted, the cold side can be configured to exhaust from the bottom or front side
• When not ducted, the hot side can be configured to intake from the top or right side
• When not ducted, the hot side can be configured to exhaust from the rear or top side
• Optional air deflectors are available for non-ducted installations
• When ducted, the cold side supports up to 50 equivalent feet, 25 feet per duct, using required 8-inch insulated ducting
• When ducted, the hot side supports up to 50 equivalent feet, 25 feet per duct, using required 6-inch ducting without an auxiliary fan
• With an auxiliary inline fan, the hot side supports up to 100 equivalent feet, 50 feet per duct
• High fan speed is required for ducted installations
• Auxiliary fans should never be used on the cold side
• CellarPro OEM duct hoods must be used for ducted installations, otherwise warranty coverage will be voided

Configuration Options

• Shallow height and depth: 10 1/2 inches deep x 10 inches high x 36 1/2 inches wide
• Variable-speed EC fans: independent controls allow customers to choose between quieter operation and maximum performance
• Oversized stainless-steel drain pan with 100W heating element
• Condensate drain line: strongly recommended for wine cellar installations that are not airtight

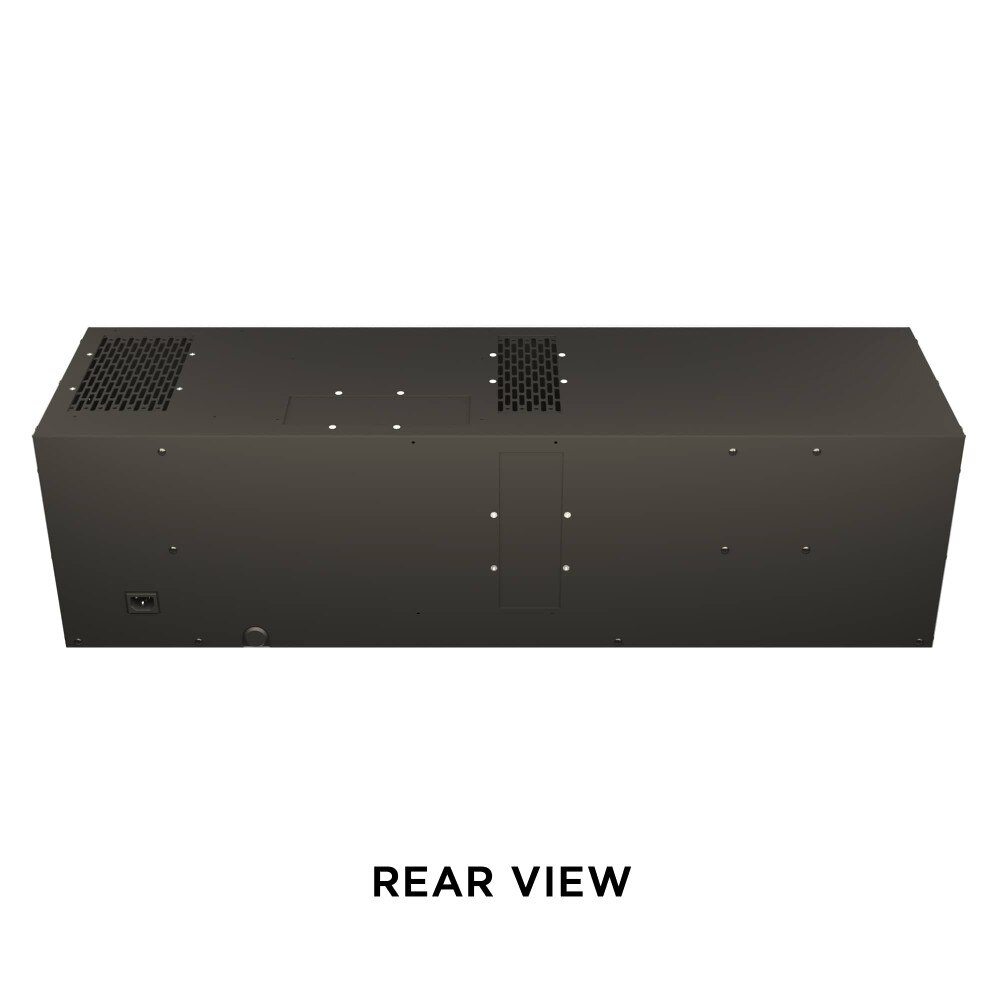

• 110V power source: choice of side or rear with removable 10-ft cord
• Bottle probe required: bottle probe for use in liquid must be used with Houdini cooling units
• HY setting: the HY setting on the cooling unit must be changed to 1
• Probe placement: the bottle with the probe should be located inside the cellar, near the top of the cellar, in a central location with good airflow

Technical Summary

• Cooling capacity: 1900 total BTUH, 1505 sensible BTUH
• Nominal size: 1/4 ton wine cooling system
• Part number: 37402
• Refrigerant: R-290 (ultra-low GWP)
• Fan type: variable-speed EC fans with independent controls
• Application: shallow-depth glass-enclosed wine cellars when properly sized
• Dimensions: 10 1/2 inches deep x 10 inches high x 36 1/2 inches wide
• Power: 110V with removable 10-ft cord
• Compliance: ETL-certified

Resources

• Visit our Learning Center for detailed specs, performance charts, recommended cellar design and comparisons against Breezaire, Wine-Mate, WhisperKOOL and other cellar cooling brands.

CellarPro cooling units are designed to be used in properly constructed wine cellars that are adequately insulated, airtight and sealed with a vapor barrier. In improperly constructed cellars, the cooling unit will create excess condensation, leading to damage and premature failure (not covered by warranty).

• R-290 Compressor: delivers powerful cooling performance with lower energy use and environmentally friendly refrigerant.
• Features energy-efficient EC fans on both the cold and hot sides.
• Dual high-output fans include independent variable-speed settings, allowing customers to choose between maximum cooling power at high fan speed or super-quiet operation at low fan speed.
• High fan speed is required for ducted installations.
• The unit requires fresh air intake from outside the wine cellar. If the unit's location does not provide sufficient room for hot air exhaust to dissipate and/or fresh air to be provided, an approved hot-side duct package may be required.
• Designed for indoor use only, the unit must be installed in an area above 32F, and the cold side of the cooling unit should never be exposed to temperatures below 32F.
• Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
• Custom coils generate maximum cooling power inside the cellar.
• Now with coated aluminum evaporator coils, which help resist formicary corrosion, the leading cause of cooling unit failure.
• Excess condensate is managed with a high-capacity stainless-steel condensate pan and 100W electric heating element.

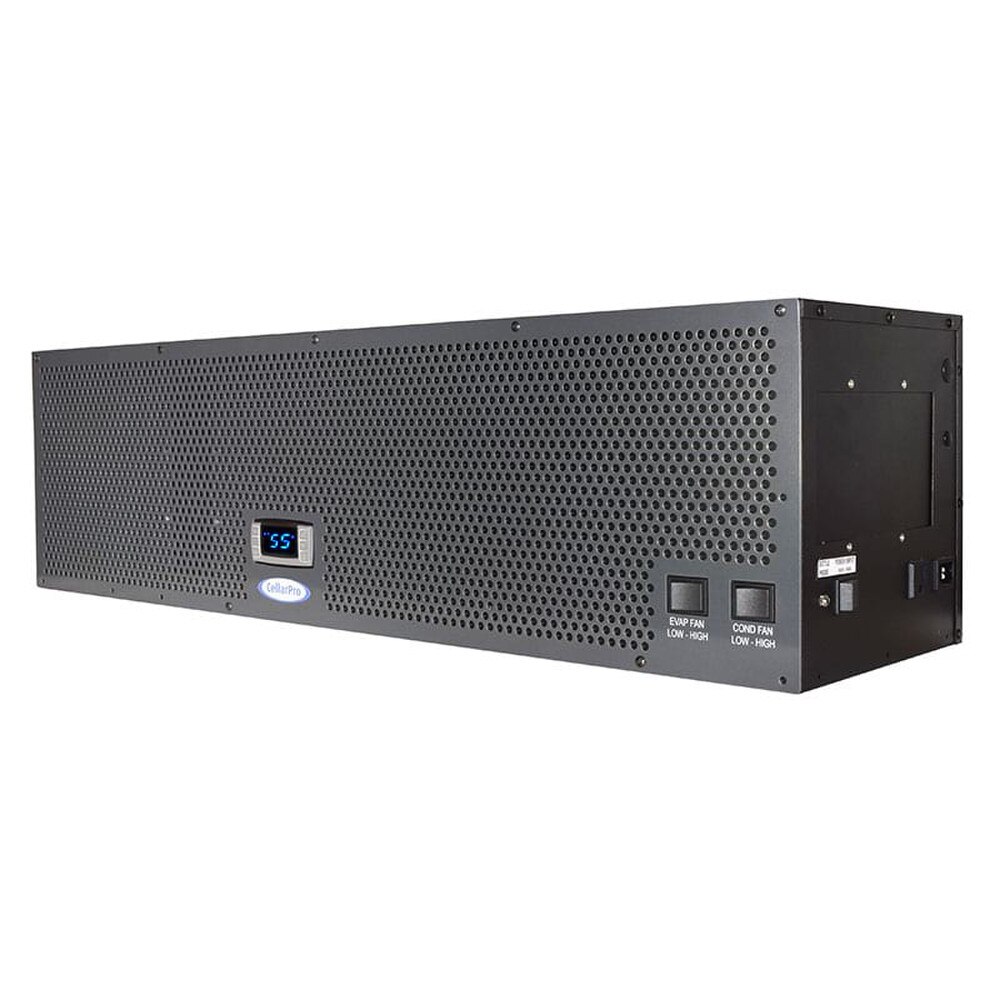

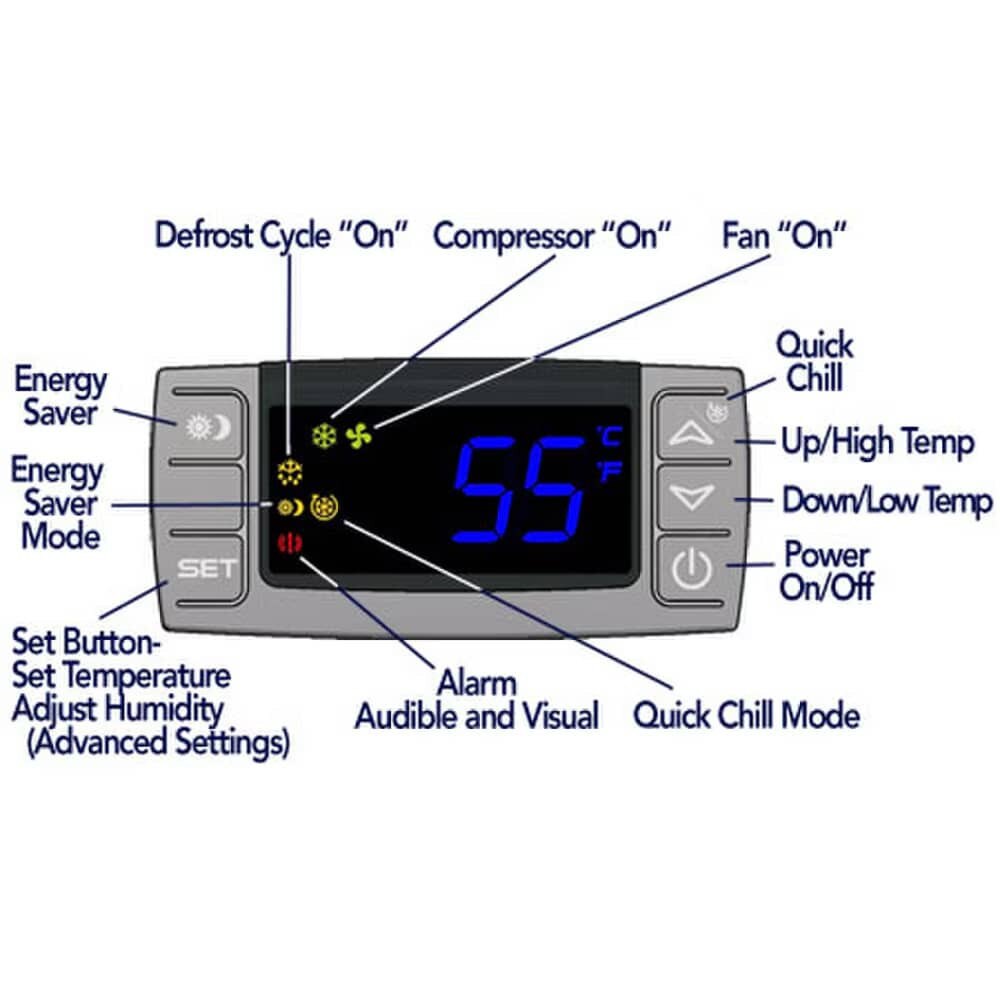

• The intuitive LED display panel with digital programmable thermostat is simple and easy to use. A remote thermostat is available as an upgrade.
• Bottle probe is included as standard equipment and must be used in a bottle with liquid with 1800H-HE Houdini cooling units.

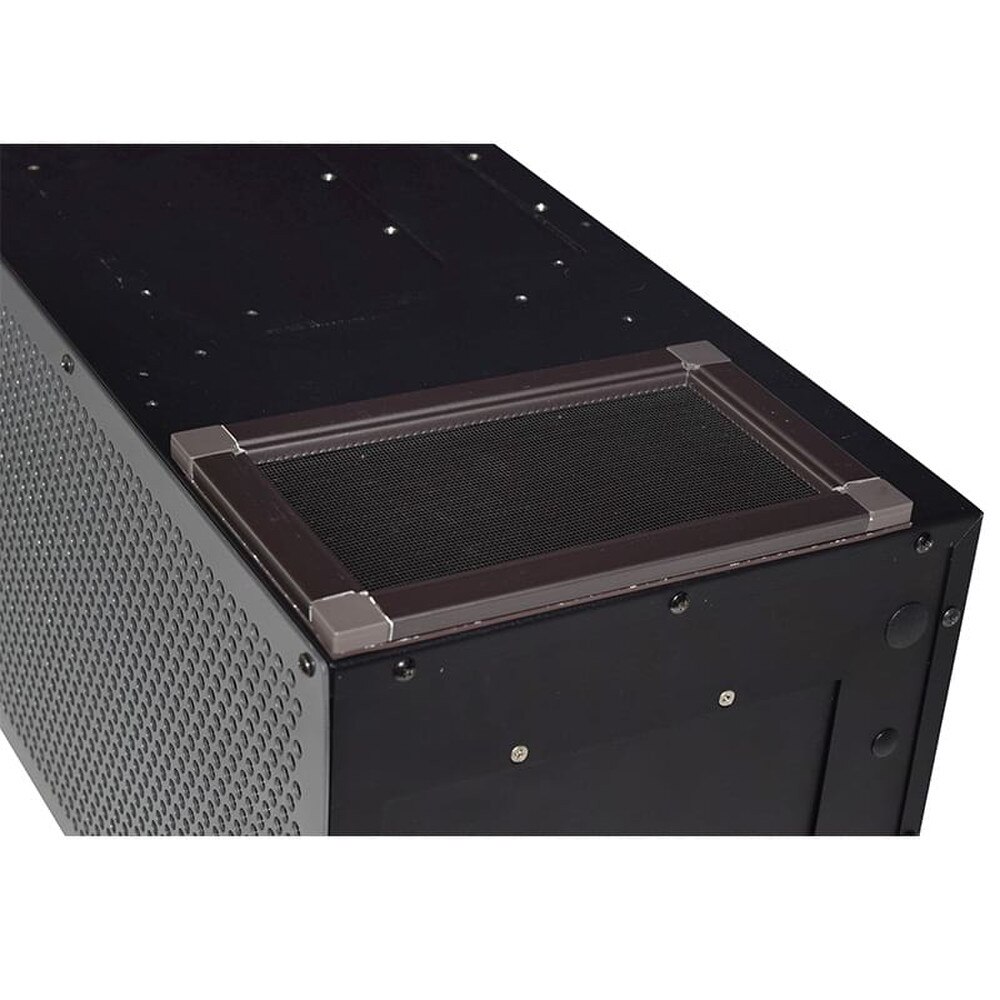

• Reusable filter is included with non-ducted units.
• Energy-saver mode, quick-chill mode and auto-defrost cycle provide convenient solutions to common cellar needs.
• Temperature set point range is 51F to 62F when the cooling unit is properly sized.
• Unit operates with minimal vibrations and less noise than comparable units from competitors.
• Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
• With dual power sources and a 10-foot power cord, the unit can be plugged into a receptacle from either the rear or right side of the cooling unit, providing flexibility for most installations.
• A common dedicated 15-amp circuit is required to power the unit.

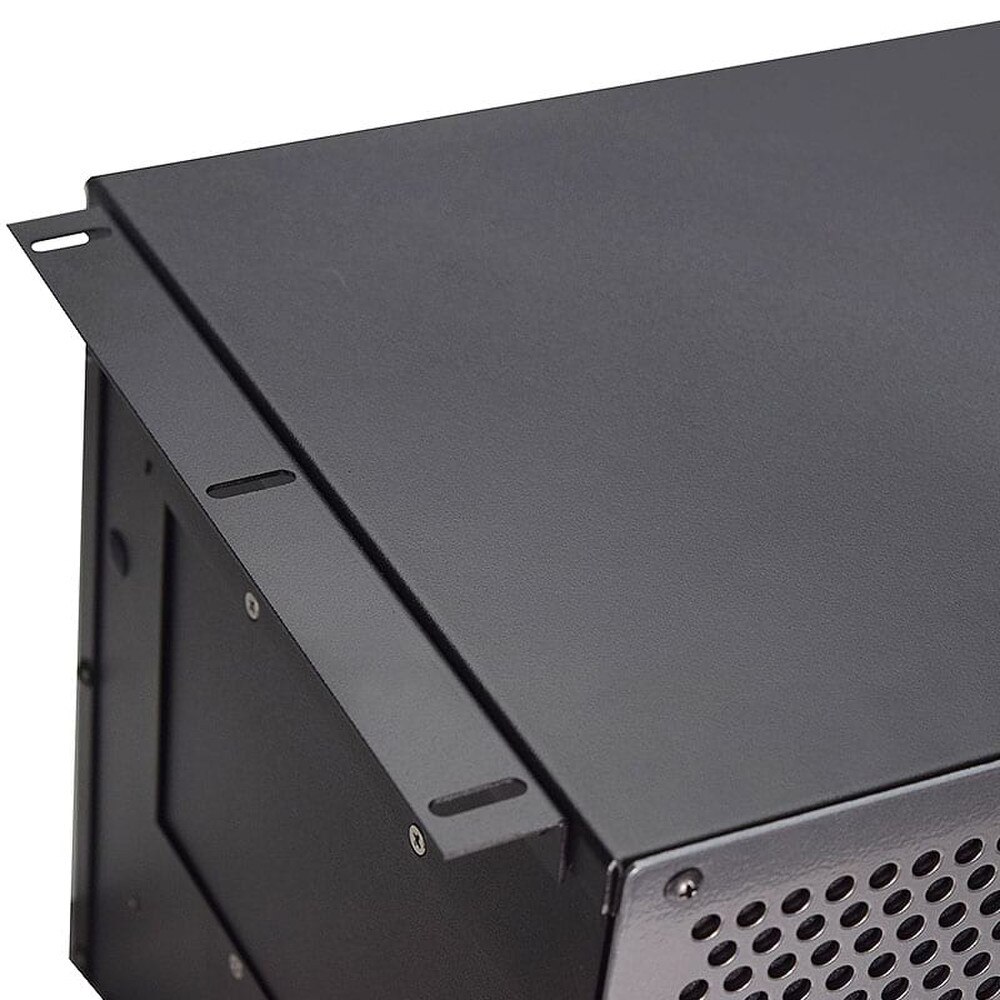

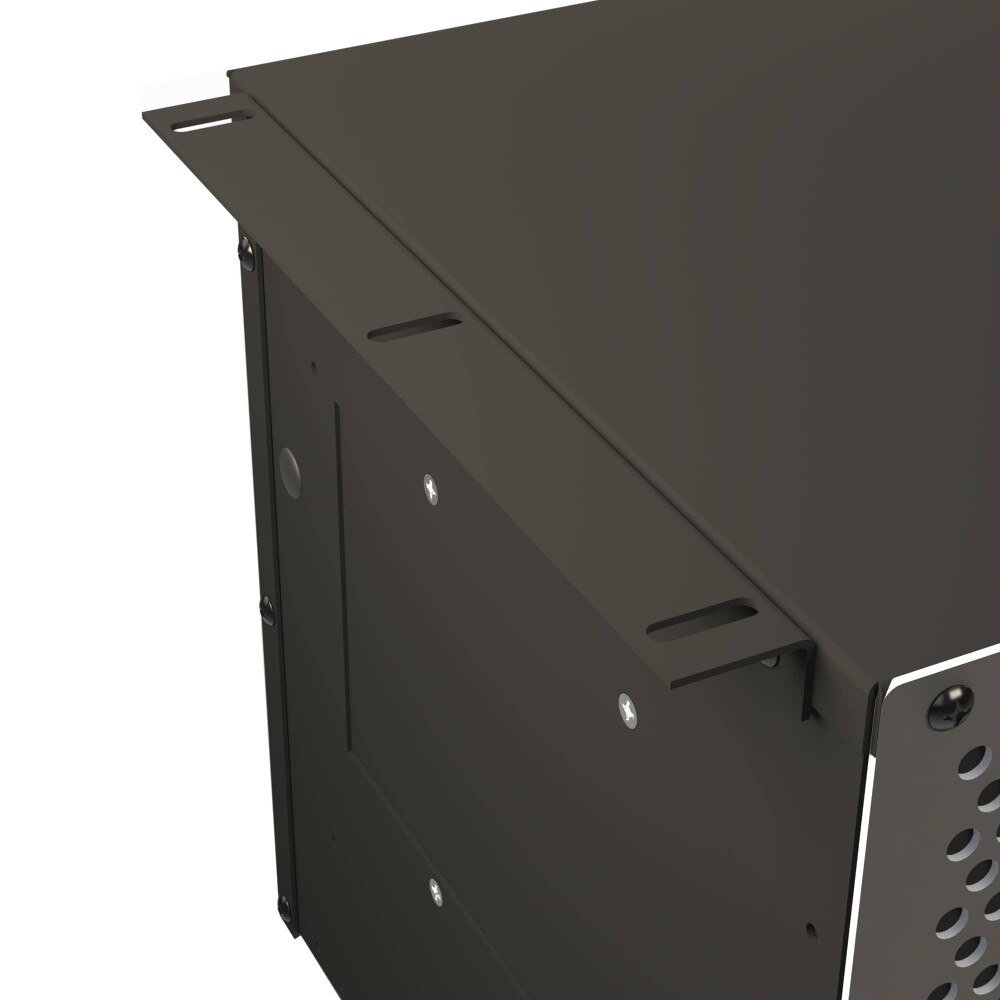

• Mounting brackets, included as standard equipment, ensure easy installation.
• Removable steel case provides access to the internal components for servicing and repair.
• CellarPro's 5-Year Standard Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
• An optional Extended Warranty (P/N 1836) is available for additional protection.
• ETL Tested and Certified to rigorous UL Standards for safety.

• CellarPro 1800H-HE Houdini cooling units are self-contained, fully charged units designed to be attached to the ceiling inside the cellar, installed above the cellar or located remotely from the cellar with approved ducting.

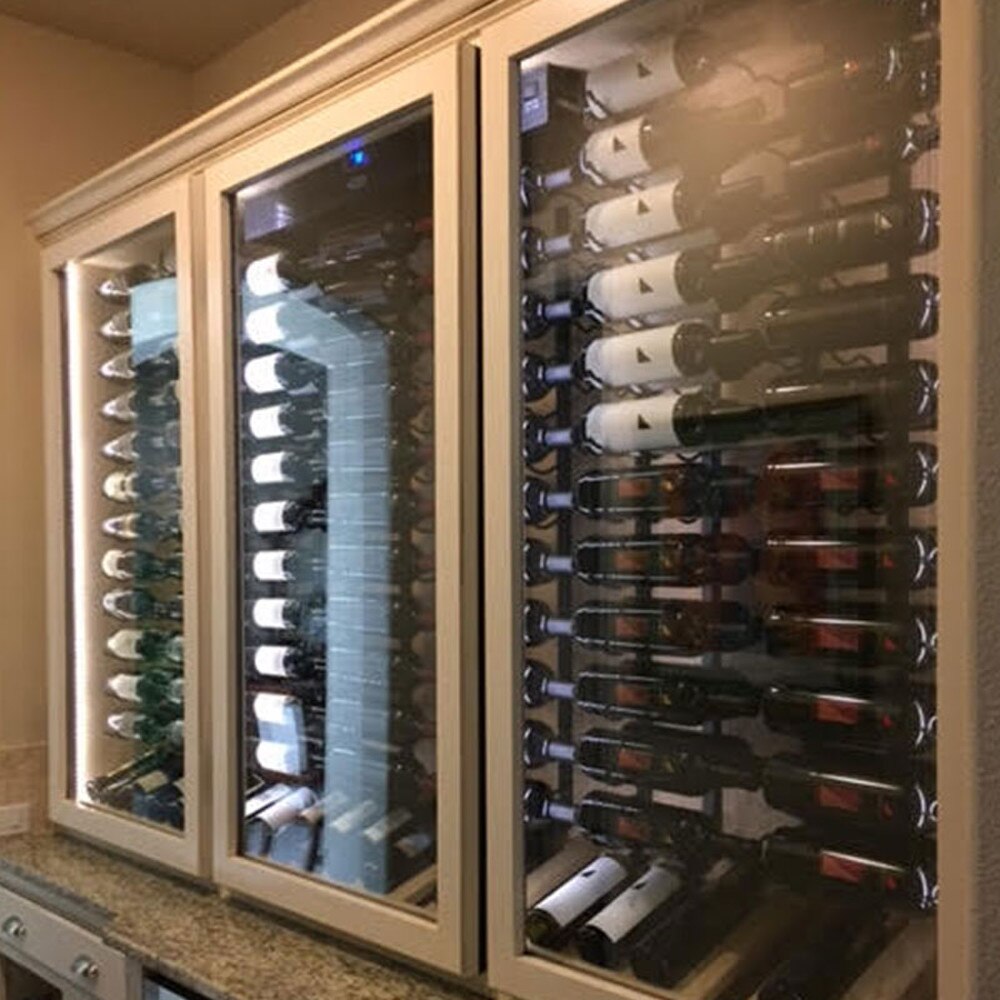

• 1800H-HE Houdini units are designed specifically for shallow-depth glass wine cellars, with a compact, low-profile design that allows the cooling unit to “disappear” inside or atop the cellar.
• Bottle probe required: bottle probe for use in liquid must be used with Houdini cooling units
• 1800H-HE Houdini units can be located remotely from the cellar with the addition of one of our cold-side duct packages. Offered with or without insulated flex ducting, our cold-side duct packages allow these cooling units to be ducted up to 50 equivalent feet(25' per duct). Cold-side ducting must be insulated and 8-inch or greater from start to finish.
• When calculating equivalent feet, each 90-degree turn counts for 8 feet.
• For remote or inaccessible installations, we offer a remote display kit that can be wired to the cooling unit and allows the digital display to be mounted inside or outside the cellar.
• 1800H-HE Houdini units require fresh air intake without interference from the unit's hot air exhaust. The fresh air intake must come from outside the wine cellar and should be within a range of 40F to 95F.
• If sufficient space does not exist to provide fresh air, or if the hot air exhaust cannot dissipate properly, you may need one of our approved hot-side duct packages.
• When ducted on the hot side without an auxiliary inline fan, the 1800H-HE Houdini supports up to 50 equivalent feet(25' per duct) with required 6-inch ducting.
• When ducted on the hot side with an auxiliary inline fan, the 1800H-HE Houdini supports up to 100 equivalent feet(50' per duct) with required 6-inch ducting.
• High fan speed is required for ducted installations, and auxiliary fans should never be used on the cold side.
• CellarPro OEM duct hoods must be used for ducted installations, otherwise warranty coverage will be voided.
• The cold side of the cooling unit should never be exposed to temperatures below 32F.
• A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.

Brand: CellarPro

UPC: 077757374029

Size: 36 1/2w x 10 1/2d x 10h (in)

Weight: 70 lbs

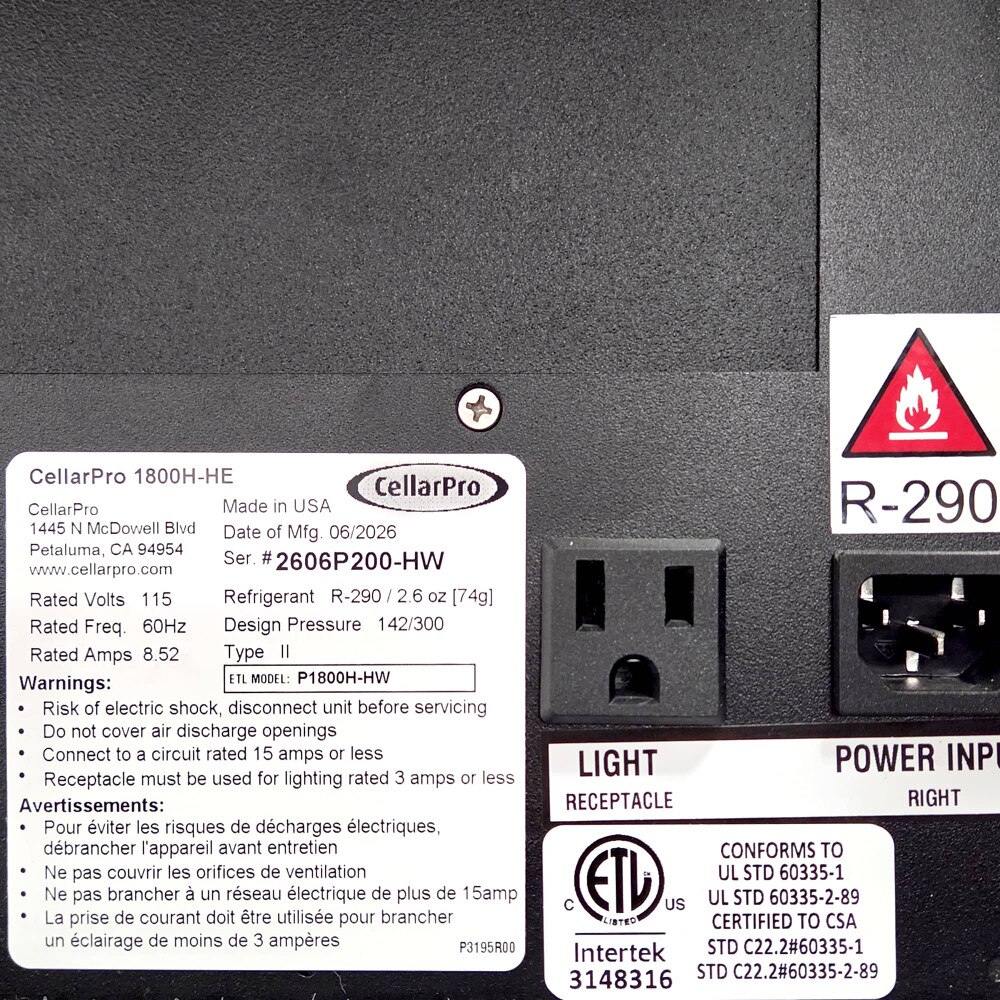

Power/Rating:
115V AC / 60 Hz
Compressor Amps:
- Startup (LRA): 29.8 Amps
- Unit Amp Rating: 5.5 Amps
- Total Watts with Fans on High: 327
- Total Watts with Fans on Low: 358
- Compatible with Dedicated 15-Amp Circuit

Decibels:
- Low fan speed: 49 dBA
- High fan speed: 55 dBA

TOTAL BTUH @ 55F:
- Low Fan Speed: 1486 BTUH
- High Fan Speed: 1900 BTUH
- 1/4 Ton Nominal

Sizing Table: Click here to view sizing table

Warranty Resources
- Warranty Overview
- Limited Warranty - 2 Years (Entire System) / 5 Years (Compressor)
- Optional Extended Warranty (sold separately).

Click on one of the following links for more information:

• Spec Sheet
• Owner's Manual
• Service Manual
• Cut Sheet: Airflow Cutouts
• Cut Sheet: Control Locations
• Cut Sheet: Dimensions Cut Sheet
• Duct Hood Drawings: As Ducted
• Ducting Installation Best Practices
• Configuration Options
• 3D CAD (.step)
• Monthly Operating Cost

Cold Temperature
CellarPro 1800H Houdini units must be located in environments ranging from 40F to 95F

• Compressor Heater #1727: NOT REQUIRED for 1800H cooling units.
• Fan Cycling Switch #37131: REQUIRED when the fresh air intake will be ducted from environments ranging from 20F to -20F.

Duct and Sound Hoods

• Hot Side Duct Hood#25563and Kit #25562: allows you to install the unit in a small space with limited airflow, and duct the airflow up to 50 equivalent feet (25 feet per duct)
• Cold Side Duct Hood #35618and Kit#35619: permits the cooling unit to be located remotely and duct the airflow up to 50 equivalent feet (25 feet per duct).
• Duct Kits are the same as Duct Hoods, and also include 2 x 25-feet of R-6 insulated flex ducting.
• Sound Hood #30827: reduces the noise level of our Houdini cooling unit by 5 decibels; no assembly is required.

Louvered Grills

• Use our filter & grill guide to find the a duct filter and/or louvered grill that is appropriate for your cooling unit.

Maintenance

• Reusable Fresh Air Intake Filter #27158: Keep the filter clean, or replace if necessary. INCLUDED with non-ducted units.

Remote Control & Probe

• Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
• Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar. INCLUDED.
• Bottle Probe Extension Cords available in 25-foot (#1780) and 50-foot (#1781) lengths.

Other Options & Upgrades

• Condensate Drain Line: strongly recommended for wine cellar installations that are not airtight, a drain line allows excess moisture to drain from the the cooling unit (#1606).

DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we'll send a replacement cooling unit to you per the terms of our Replacement Unit Program

CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we'll send a replacement cooling unit to you, as follows:

1. Your cooling unit must be registered at CellarPro
2. Your cooling unit must have been properly sized, installed and maintained
3. Your cooling unit may not have been permanently modified, damaged or disfigured

Please note:

• Replacement units are factory-refurbished cooling units with a similar build date as your original unit
• You are responsible for the shipping cost to send the replacement unit to you and return the original unit to us, and the cost (if any) to remove the original unit and install the replacement unit
• In order to send a replacement unit, we require a deposit, which will be refunded minus shipping costs upon the return and pending the inspection of the original unit
• If the original unit failed due to improper intallation or use, the failure is not covered by warranty and we will deduct the cost of the repairs from the refund of your deposit

What is "Sensible BTUH"?

A: You should always use Sensible BTUH* when comparing different brands of cooling units, and when sizing a cooling unit for your wine cellar. Every cooling unit produces a certain amount of Total BTUH, which is the sum of Sensible BTUH (lowers the temperature) and Latent BTUH (lowers the relative humidity). Because our goal is to cool wine cellars while preserving humidity, wine cellar cooling units should have high Sensible BTUH and low Latent BTUH. The relationship between Sensible and Latent BTUHs is know as SHR (Sensible Heat Ratio), which is calculated as Sensible BTUH/Total BTUH. The SHR for CellarPro cooling units is greater than 90%, which means that CellarPro units provide maximum cooling power without stripping out humidity from the cellar environment.

*CellarPro Sensible BTUHs are calculated assuming 55F cellar temperature, 60% relative humidity and 95F ambient for all units except 1800 units (85F ambient).

How do I pick between this unit and the 1800XTS?

A: This cooling unit and the 1800XTS provide the same BTUH output, and therefore can be used to cool wine cellars with similar thermal loads. The biggest difference is that the 1800XTS was designed - and works best - when installed through-the wall, with the front 8 inches of the cooling unit inside the wine cellar. Also, the cold side of the 1800XTS cannot be ducted unless the cooling unit is located directly above the cellar. In contrast, the 1800H-ECX cooling unit was designed for shallow-depth installations, inside or atop the cellar. In addition, the 1800H-ECX can be placed up to 50 equivalent feet away from the wine cellar and ducted. Other differences include an advanced condensate management system in the 1800H-ECX, which has a large stainless steel drain pan and 100W condensate evaporator, as well as variable-speed fan control and removable power cord in the 1800H-ECX cooling unit.

How cold can the temperature be where the cooling unit pulls air?

A: For installations in environments below 40F down to 20F, we recommend adding our compressor heater (P/N 1727), which is included as standard equipment on all outdoor units. Below 20F, in addition to the compressor heater, we recommend adding our fan cycling switch (P/N 6972)

Does the unit really need a dedicated circuit?

A: First, the background. Unlike our competitors, we build our cooling units with precision expansion valves, not cap tubes, which means that our cooling units aren't limited to a 30F differential between the desired cellar temperature and the ambient temperature. Cooling systems with expansion valves are much more precise than cap tubes, and much more sensitive to low voltage conditions, which is why our units require dedicated circuits. When we say "dedicated circuit", we mean that the circuit shouldn't have any items that require heavy draws of electricity - eg other appliances, vacuum cleaners, big-screen TVs, blow-dryers - on the same circuit as the cooling unit. Lighting, computers or other low-draw items shouldn't be a problem on the same circuit.

Can the cooling unit be located in a remote location and ducted to/from the wine cellar?

A: These cooling units can be ducted up to 50 equivalent feet away from the wine cellar when used with our cold-side (front) duct hoods and kits. Remember that cold-side ducting must be insulated and additional load should be added to properly size the required cooling unit.

Can I install the entire unit inside the cellar?

A: These cooling units can be installed completely inside the wine cellar, attached to the ceiling, with the hot air exhaust and fresh air intake pushed to and pulled from the space above the cellar.

If I don't have sufficient space to pull fresh air, is that Ok?

A: The hot side of the cooling unit generates hot air that must have sufficient space to dissipate, otherwise the unit will recycle its own hot air. The hot air exhaust and/or intake can be ducted to another location with our hot-side duct hoods and kits, which allow supply and return airflows to be redirected to and from a temperature controlled environment OUTSIDE the cellar.

Can I use the low fan speed setting on the cooling unit when the unit is ducted?

A: Duct hoods and kits create additional static pressure and therefore require the use of the high fan speed to overcome the additional static pressure.

Do I need the condensate drain line?

A: If you are using the cooling unit in an airtight cabinet or cellar, you probably don't need the drain line. To the extent that condensate is created, the 100W heating element inside the cooling unit reduces drainage as it helps to burns off condensate before it reaches the drain line. However, if your cabinet/cellar was built without a vapor barrier, or there are gaps where the door(s) closes against the cellar, you will need the drain line to allow excess condensate a path to be released to a designated location.
