Self Contained 1/4 Ton 1800XTSr Front Vent #35882

With the power of our 1800XTS cooling unit, the 1800XTSr has reversed the location of its airflows, making it perfectly designed for built-in or above-the door installations.

1886 SENSIBLE BTUH @ 55F.

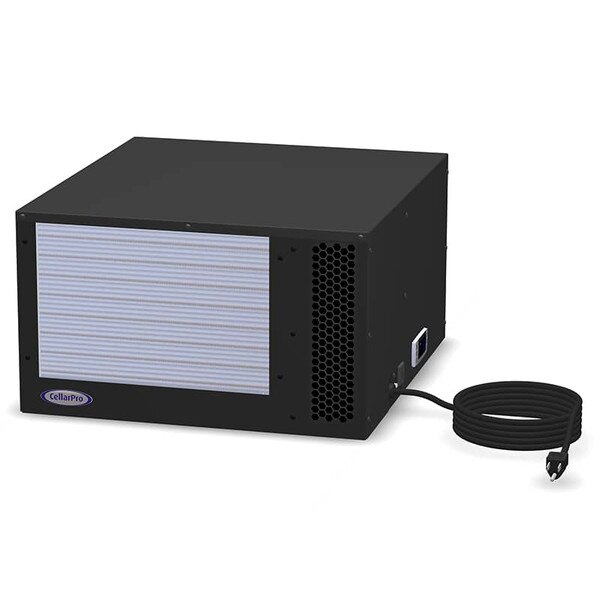

CellarPro's 1800XTSr-ECX cooling unit (1/4 Ton Nominal) draws inspiration from our 1800XTS cooling unit, then repositions the hot side airflows to the front of the unit, and the cold side airflows to the bottom of the unit, making it ideal for built-in and above-the-door installations that require venting at the front of the unit.

Features include:

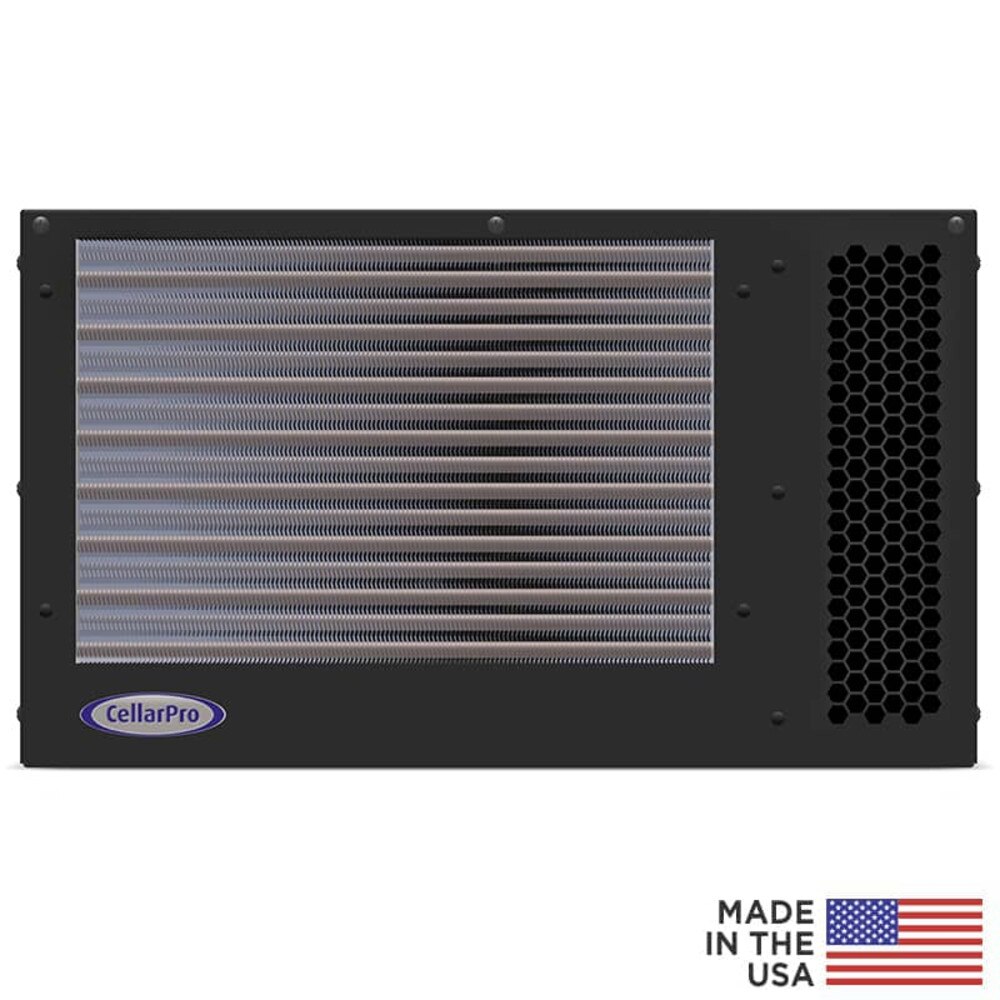

• Hot air exhaust and fresh air return are located at the front of the unit
  • Ideal for above-the-door and built-in installations

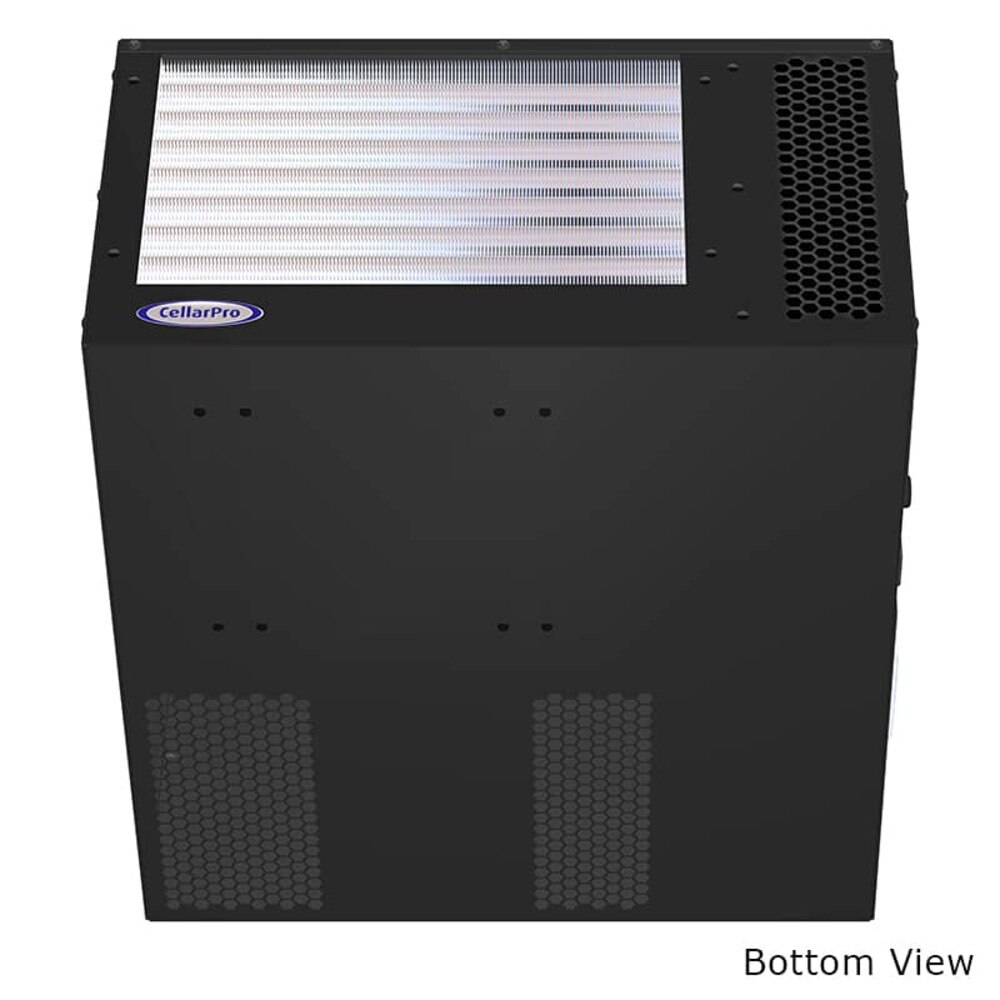

• Cold air exhaust and cellar air return are located at the bottom of the unit
  • Ideal for placement at the top or above the wine cellar
• Energy-efficient EC fans
• Oversized stainless-steel drain pan
  • Optional 100W heating element to burn off excess condensate
• Choice of drain line configuration
  • Grommet hole cap is recommended for properly constructed, airtight cellars
  • Optional 1/2-inch fitting and 8' flexible drain line for installations in high-humidity locales
• Choice of power source
  • Side or rear
  • Fixed 8-ft cord
• Optional bottle probe
• Optional remote display
• Optional networkable thermostat upgrade

Important notes:

1. This unit is not designed to handle static pressure and its airflows should never be ducted nor installed in an environment where the airflows will be restricted.
2. This unit is designed for installation in temperature-controlled environments, with an 85F maximum intake temperature

CellarPro cooling units are designed to be used in properly-constructed wine cellars that are adequately insulated, airtight and sealed with a vapor barrier. In improperly-constructed cellars, the cooling unit will create excess condensation, leading to damage and premature failure of your cooling unit (not covered by warranty).

• Extra Cooling Power
• Electronic Thermostat
• Digital LED Display
• Adjustable Humidity Control
• Energy-Saver Mode
• Quick-Chill Mode
• Audible and Visual Alarms
• High-Output Compressor
• Epoxy Coated Coils
• Min/Max Temperature
• Maintenance-Needed Indicator
• Auto-Defrost Cycle
• Power On/Off
• Removable Steel Case
• Vibration-free Operation

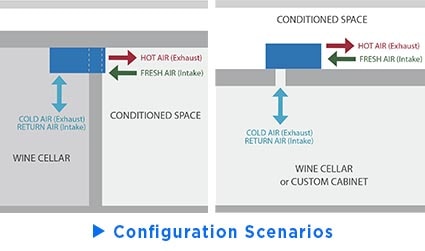

• CellarPro 1800XTSr units are self-enclosed, fully-charged units designed to be installed through-the-wall or above the ceiling relative to the wine cellar.
• These cooling units are not designed to be ducted.
• 1800XTSr cooling units require fresh air intake at the front of the cooling unit. In addition, the hot exhaust from the cooling unit blows out of the front of the cooling unit. Therefore, sufficient space must exist in front of the unit so that the hot air can dissipate before mixing with the fresh air intake.

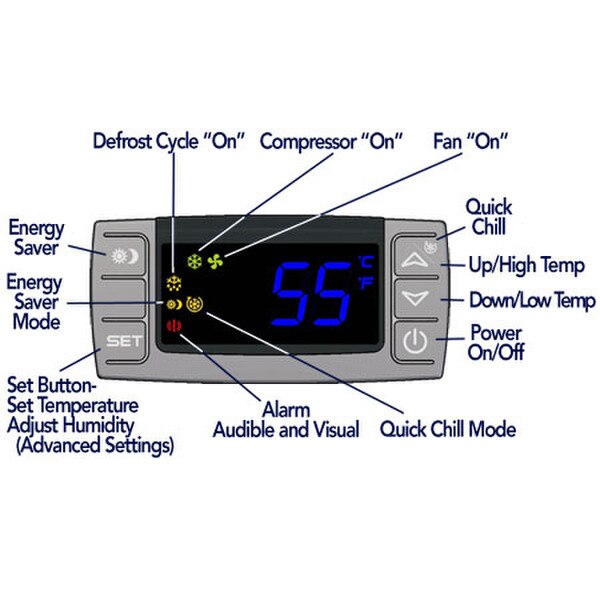

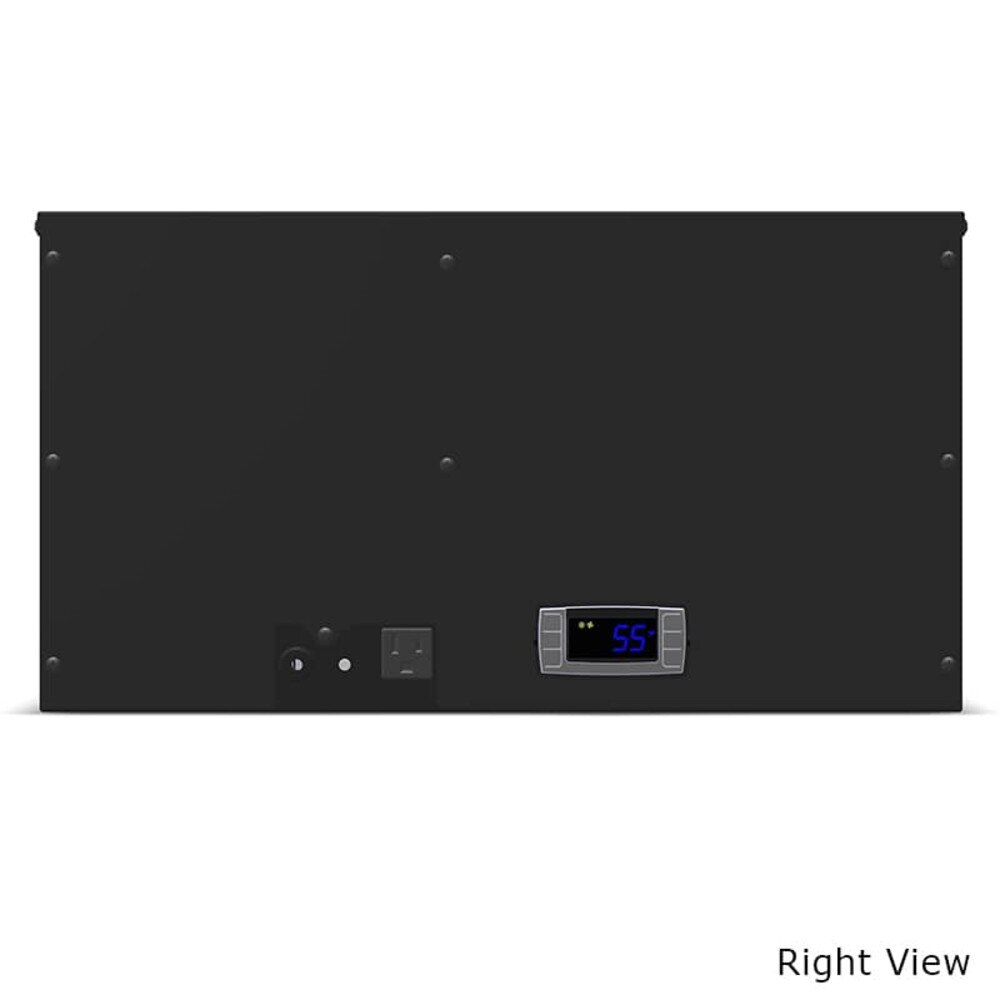

• The control panel and digital display are located on the right side of the cooling unit. If this location will be inaccessible, we offer a remote control display kit which is wired to the cooling unit and allows the digital display to be mounted inside or outside the cellar.

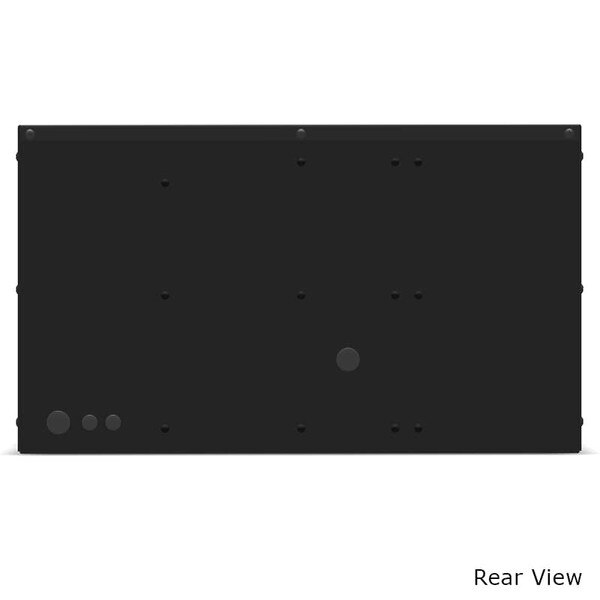

• The power cord can exit from the rear or from the right side of the cooling unit, and must be configured prior to purchase.
• The cooling unit can be configured with or without an optional drain line at no charge
• The front of the cooling unit should never be exposed to temperatures below 40F, and the bottom of the cooling unit should never be exposed to temperatures below 32F.
• A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.

Brand: CellarPro

UPC: 077757358821

Size: 18w x 19 1/2d x 10 1/2h (in)

Power/Rating:
115V AC / 60 Hz
Compressor Amps:
- Running: 3.7 Amps
- Startup: 22.2 Amps
- Total Watts: 440
- Required: Dedicated 15-Amp Circuit
- Recommended: Surge Protector
Decibels: 50 dBA

BTUH @ 55F: 1,886

Sizing Table: Click here to view sizing table

Warranty Resources
- Warranty Overview
- Limited Warranty - 2 Years (Entire System) / 5 Years (Compressor)
- Optional Extended Warranty (sold separately)

Click on one of the following links for more information:

• Owner's Manual
• Spec Sheet
• Installation Diagrams
  • Installation Diagram - Clips
  • Installation Diagram - Shelf
  • Installation Diagram - Above Cellar/Cabinet
• Adjustable Humidity Chart
• Monthly Operating Cost
• Sound Level
• Cut Sheet Dimensions
• Product Brochure

Remote Control & Probe

• Networkable Thermostat Upgrade #27346 and #27310: If you'd like to connect your cooling unit to a networkable, Wi-Fi enabled thermostat (eg Ecobee SmartThermostat Pro #31453 - sold separately), our networkable thermostat upgrade must be ordered at the same time as the equipment. Other limitations apply - read the networkable thermostat description for more information.
• Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
• Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
• Bottle Probe Extension Cords available in 25-foot (#1780) and 50-foot (#1781) lengths.

Other Options & Upgrades

• 100W Heating Element #27318: Add a 100W heating element to burn off excess moisture
• Mounting Clips #1095: attached to the front of CellarPro 1800 Series cooling units, these clips are designed to be bolted to the ceiling inside the wine cabinet / cellar.

DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we'll send a replacement cooling unit to you per the terms of our Replacement Unit Program.

CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we'll send a replacement cooling unit to you, as follows:

1. Your cooling unit must be registered at CellarPro
2. Your cooling unit must have been properly sized, installed and maintained
3. Your cooling unit may not have been permanently modified, damaged or disfigured

Please note:

• Replacement units are factory-refurbished cooling units with a similar build date as your original unit
• You are responsible for the shipping cost to send the replacement unit to you and return the original unit to us, and the cost (if any) to remove the original unit and install the replacement unit
• In order to send a replacement unit, we require a deposit, which will be refunded minus shipping costs upon the return and pending the inspection of the original unit
• If the original unit failed due to improper installation or use, the failure is not covered by warranty and we will deduct the cost of the repairs from the refund of your deposit

What is "Sensible BTUH"?

A: You should always use Sensible BTUH* when comparing different brands of cooling units, and when sizing a cooling unit for your wine cellar. Every cooling unit produces a certain amount of Total BTUH, which is the sum of Sensible BTUH (lowers the temperature) and Latent BTUH (lowers the relative humidity). Because our goal is to cool wine cellars while preserving humidity, wine cellar cooling units should have high Sensible BTUH and low Latent BTUH. The relationship between Sensible and Latent BTUHs is know as SHR (Sensible Heat Ratio), which is calculated as Sensible BTUH/Total BTUH. The SHR for CellarPro cooling units is greater than 90%, which means that CellarPro units provide maximum cooling power without stripping out humidity from the cellar environment.

*CellarPro Sensible BTUHs are calculated assuming 55F cellar temperature, 60% relative humidity and 95F ambient for all units except 1800 units (85F ambient).

How cold can the temperature be where the cooling unit is installed?

A: For installations in environments below 40F down to 20F, we recommend adding our compressor heater (P/N 1727), which is included as standard equipment on all outdoor units. Below 20F, in addition to the compressor heater, we recommend adding our fan cycling switch (P/N 6972)

Can the cooling unit be located in a remote location and ducted to/from the wine cellar?

A: These cooling units are not designed to be ducted.

Does the unit really need a dedicated circuit?

A: First, the background. Unlike our competitors, we build our cooling units with precision expansion valves, not cap tubes, which means that our cooling units aren't limited to a 30F differential between the desired cellar temperature and the ambient temperature. Cooling systems with expansion valves are much more precise than cap tubes, and much more sensitive to low voltage conditions, which is why our units require dedicated circuits. When we say "dedicated circuit", we mean that the circuit shouldn't have any items that require heavy draws of electricity - eg other appliances, vacuum cleaners, big-screen TVs, blow-dryers - on the same circuit as the cooling unit. Lighting, computers or other low-draw items shouldn't be a problem on the same circuit.

What if I don't have sufficient space in front of the cooling unit for the hot air exhaust to dissipate?

A: The front of the cooling units requires sufficient space so that its exhaust can dissipate without polluting the fresh air that the cooling unit requires to operate. If there isn't sufficient space and ducting is required, it would be best to purchase a different unit.
