Self Contained 1/4 Ton 1800XTSx-HE Outdoor #37166

1925 TOTAL / 1602 SENSIBLE BTUH @ 55F.

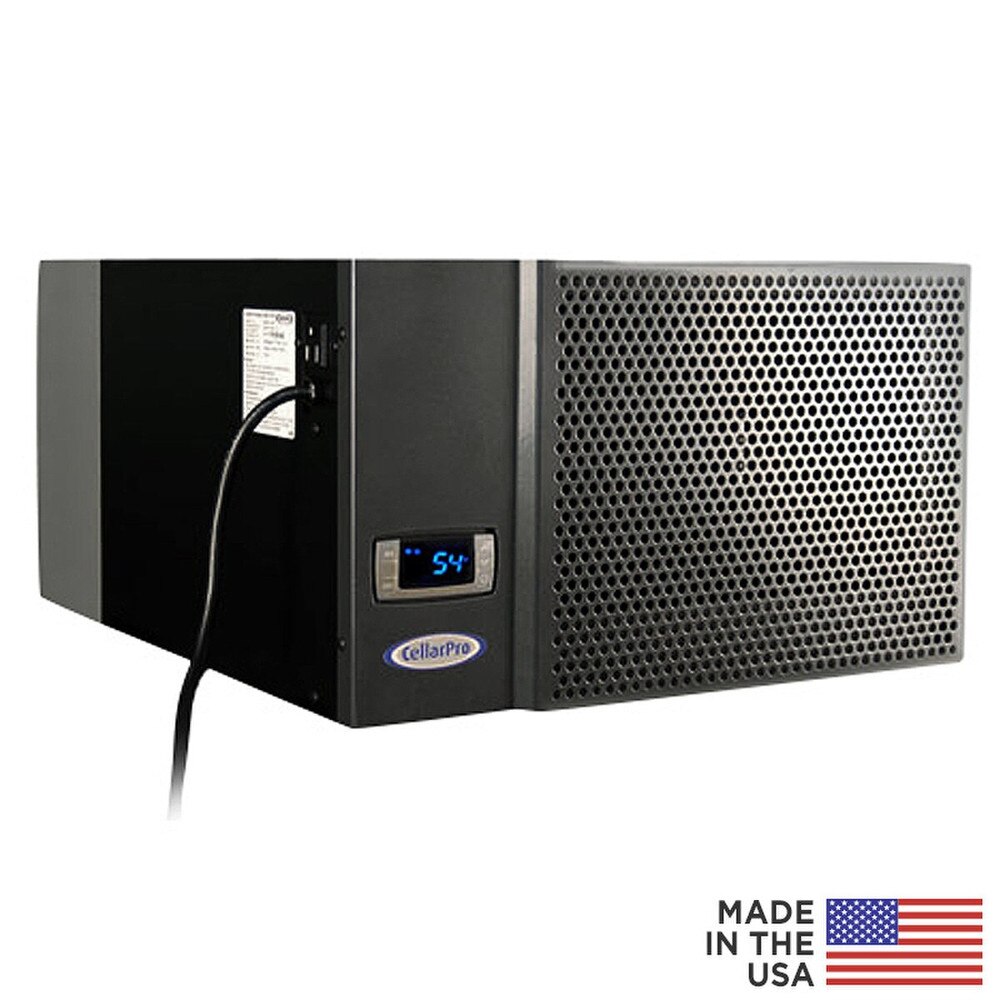

CellarPro 1800XTSx-HE Outdoor Cooling Unit (P/N 37166). The 1800XTSx-HE is engineered for outdoor installations, delivering 1/4-ton cooling capacity for small wine cellars up to 400 cubic feet under standard sizing assumptions (no glass, 85F ambient and R-19 insulation throughout). Beginning with CellarPro’s high-output 1800XTS-HE cooling unit, the 1800XTSx-HE adds outdoor-rated upgrades including an exterior hood, coated condenser coils, a rear condensate drain line, dual hot-side fans and a compressor heater for low-temperature protection.

CellarPro engineered the 1800XTS-HE for customers who want the most cooling capacity in a compact, cellar-friendly footprint. With a wide 47F–62F setpoint range and adjustable humidity control, it helps protect cork integrity and wine labels in properly designed wine cellars.

All air-cooled refrigeration equipment requires a source of fresh air to dissipate heat. The fresh air intake must come from outside the wine cellar and cannot be drawn from the cellar space.

Designed for outdoor exposure as configured, 1800XTSx-HE units can operate with condenser air from 20F to 95F and feature a 47F–62F setpoint range with adjustable humidity control to help protect corks and labels. For clearance requirements and recommended options, see the Options & Upgrades tab.

Engineered for outdoor exposure*, CellarPro 1800XTSx-HE wine cooling units deliver 1925 BTUH total / 1602 BTUH sensible capacity at 55F, providing 1/4-ton cooling for small wine cellars up to 400 cubic feet using standard sizing assumptions (no glass, 85F ambient and R-19 insulation throughout).** Built to deliver maximum cooling power in its class, the 1800XTSx-HE features a powerful R-290 refrigerant system, upgraded EC fans, longer-lasting aluminum evaporator coils and robust components engineered for demanding installs where condenser air can range from 20F to 95F. This upgraded unit delivers strong cooling performance with lower energy usage and reduced environmental impact, plus adjustable humidity control to protect corks and labels.

*These units were not designed for marine exposure (within 5 miles of the ocean), and our warranty does not cover related damage. In coastal environments, an applied coating (such as Insitu) is required to help prevent corrosion.

**Deviation from these assumptions should be evaluated using our online Wine Cellar Cooling Calculator.

Starting with CellarPro's 1800XTS-HE cooling unit, we've added the following options and upgrades for outdoor exposure:

• Dual hot-side fans for maximum airflow

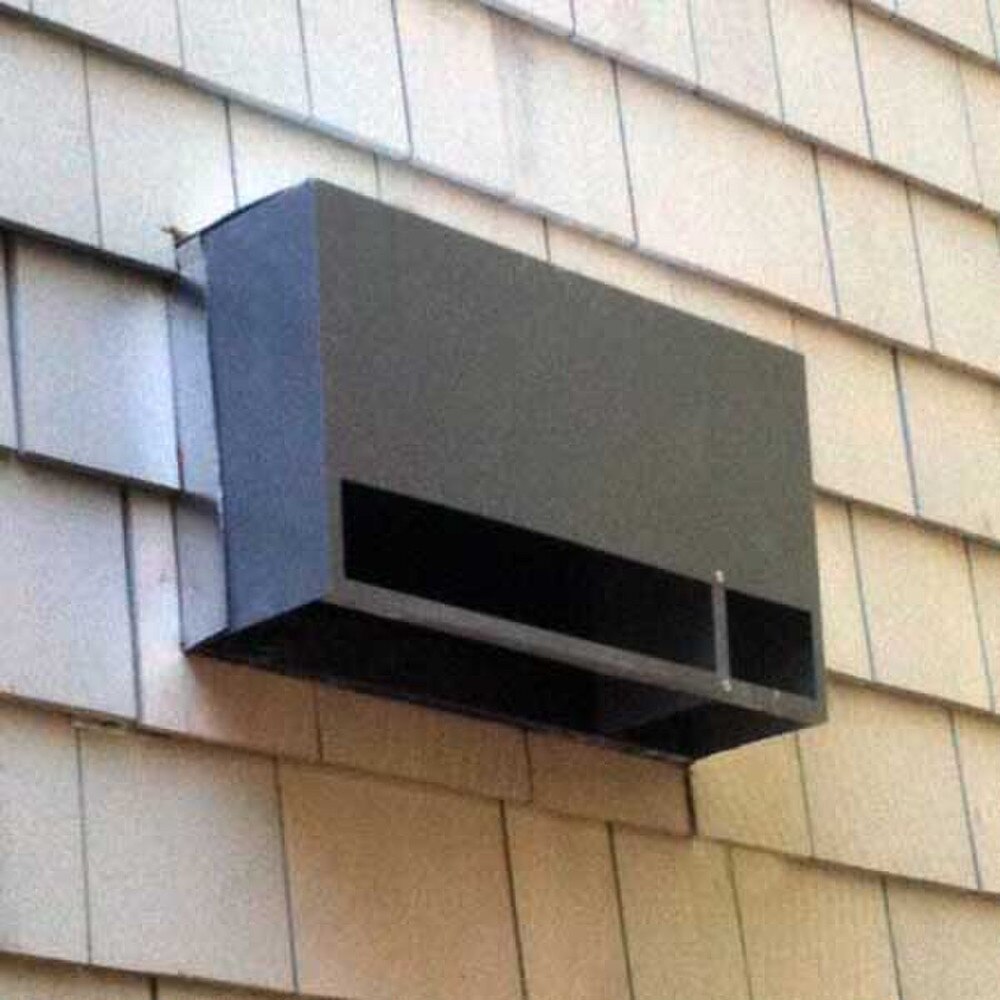

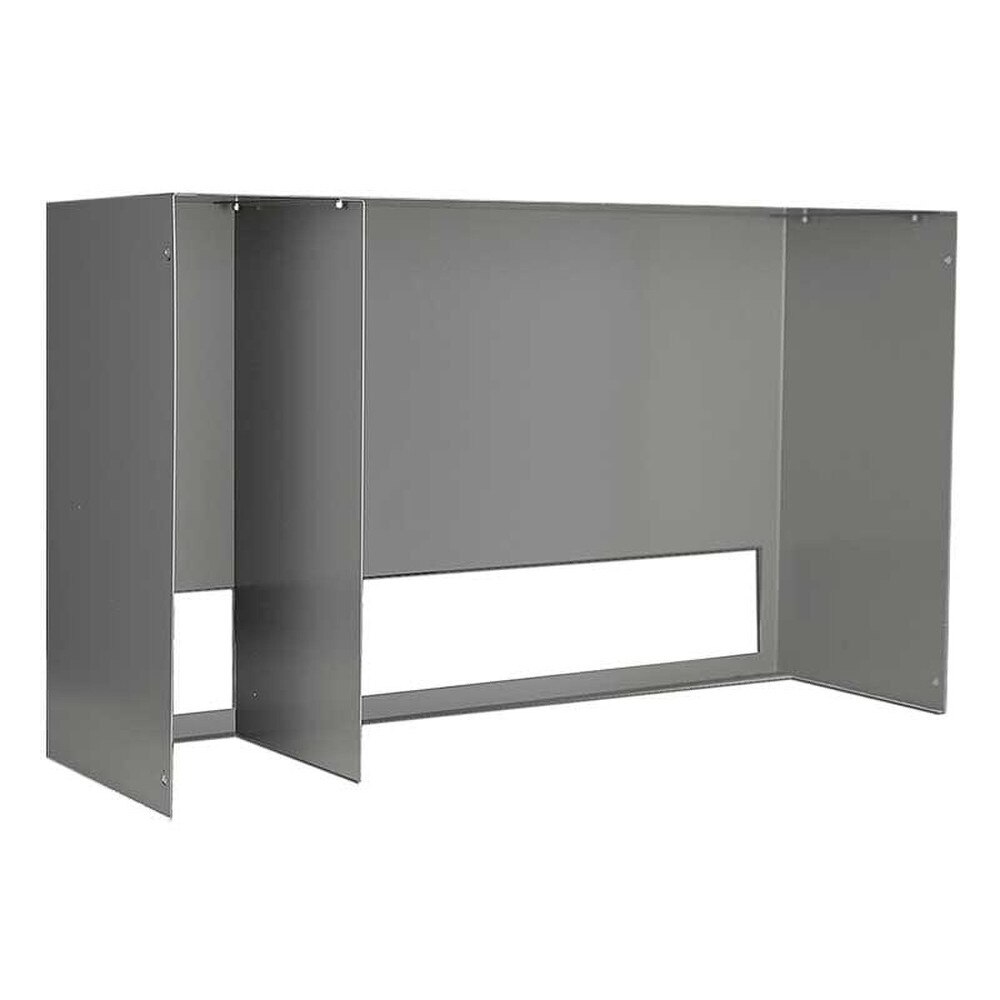

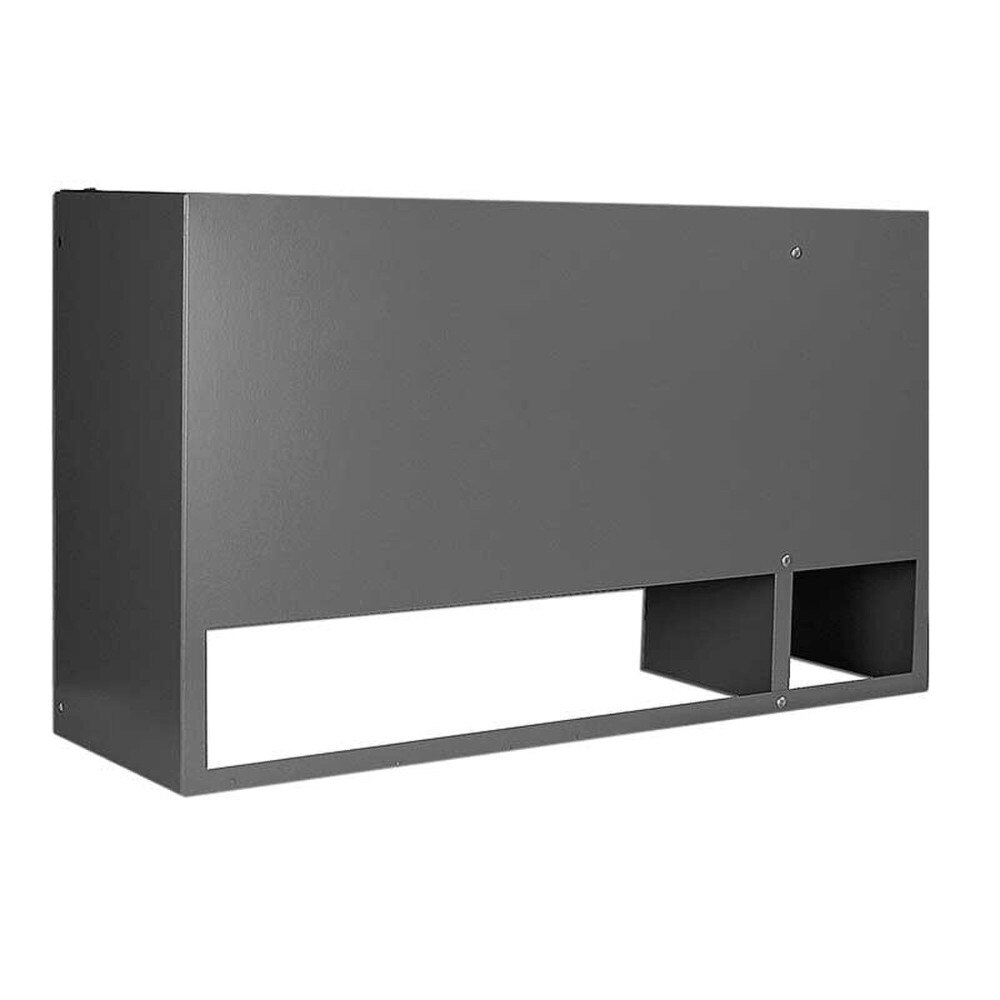

• An outdoor hood to protect the rear of the cooling unit from rain
• Rear condensate drain line to channel excess condensate away from the cooling unit
• Compressor heater to protect internal components in temperatures down to 20F
• Power cord modification to allow the unit to be powered from inside the cellar
• Coated condenser coils to protect against outdoor pollutants and extend service life

Please note:

1. Clearance requirements: allow at least 5 inches of clearance behind the exterior hood and 18 inches of clearance below the cooling unit outside the cellar. Inside the cellar, allow at least 8 inches of clearance in front of the cooling unit (same as other 1800 cooling units).

2. This unit can be used in North America as well as in overseas markets

Key Benefits

• High-performance cooling: 1925 total / 1602 sensible BTUH @ 55F for reliable temperature and humidity management
• Low-GWP system: R-290 refrigerant with ultra-low GWP and zero-ODP
• EC fan technology: lower energy usage and more powerful airflow
• Longer coil life: aluminum evaporator coils to help resist formicary corrosion and support longer service life
• Adjustable humidity control: Helps protect cork integrity and wine labels
• Compact design: provides the same footprint and produces the most BTUH in its class

Performance Overview

• Setpoint range: 47F–62F (cellar temperature)
• Designed to maintain ideal cellar conditions: Helps maintain humidity levels that support cork and label protection
• Best fit: Small wine cellars requiring outdoor exposure* and 1/4-ton cooling power using standard sizing assumptions**

Compatibility & Replacement Guide

The 1800XTSx-HE is an upgraded replacement for:

• CellarPro 1800XTSx-ECX

It also provides more powerful cooling capacity and is sized to replace competitor units such as:

• Breezaire 2200
• Wine-Mate 2500

The 1800XTSx-HE cooling unit is a strong upgrade for customers seeking:

• The most powerful cooling unit in its class
• A more energy-efficient 1/4-ton wine cellar cooler
• A modern R-290 wine storage cooling solution

Installation Requirements

For optimum performance and warranty coverage, the 1800XTSx-HE must be installed in a properly insulated, airtight wine cellar with a vapor barrier.

Recommended conditions and sizing assumptions:

• R-19 insulation or better
• No glass walls
• Vapor barrier installed on the warm side
• Ambient temperature: 85F (sizing assumption)
• Condenser air range: 20F to 95F
• Deviation from these assumptions should be evaluated using our Wine Cellar Cooling Calculator

Ducting guidelines:

• Neither the cold side nor the hot side airflows can be ducted on this model
• If the hot side will be pulling air from the exterior but the unit will not be exposed to the exterior, the 1800XTS-HE may be the better alternative, perhaps with the augmentation of our compressor heater if condenser air will be below 40F

Technical Summary

• Cooling capacity: 1925 total BTUH, 1602 sensible BTUH
• Nominal size: 1/4 ton wine cooling system
• Refrigerant: R-290, ultra-low GWP
• Fan type: EC (electronically commutated)
• Application: Outdoor exposure* for small wine cellars up to 400 cubic feet using standard sizing assumptions** (no glass, 85F ambient and R-19 insulation throughout)

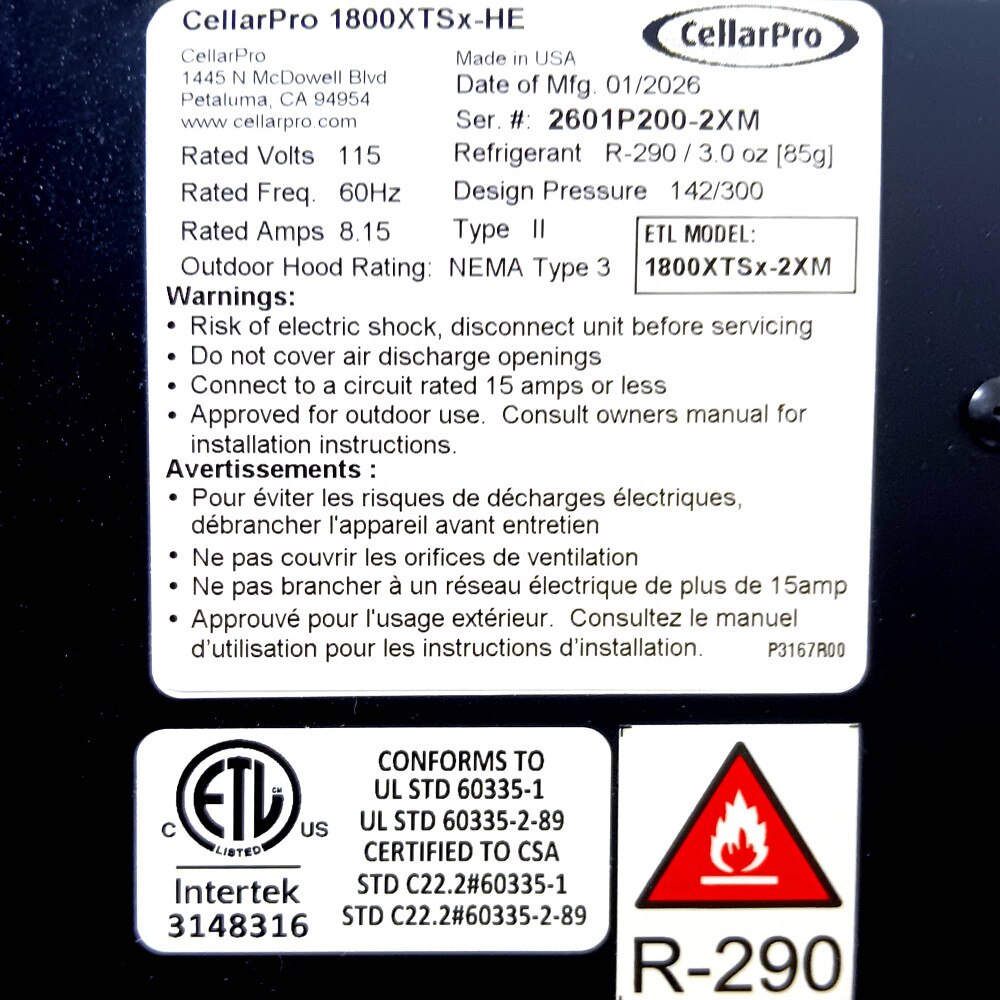

• Compliance: ETL-certified

Resources

• Visit our Learning Center for detailed specs, performance charts, recommended cellar design, and comparisons against Breezaire, Wine-Mate, WhisperKOOL and other cellar cooling brands.

• R-290 Compressor: delivers higher BTUH with lower energy use and environmentally friendly refrigerant
• Now with coated aluminum evaporator coils, which are not subject to formicary corrosion, the leading cause of cooling unit failure
• Energy-efficient components (compressor and EC Fan on the cold side), save $31.73 in annual energy costs (assumes 75% runtime and $0.15/kWh)
• Designed for outdoor exposure in temperatures ranging from 20F to 95F (condenser air)
• Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended moisture level inside your cellar
• Extra-large coils generate maximum cooling power
• The intuitive LED display panel mounted on the evaporator with a digital programmable thermostat is simple and easy to use. A remote thermostat is available as an upgrade
• Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs
• Temperature set point range is 47F to 62F when the cooling unit is sized correctly
• Unit operates with minimal vibrations and less noise than comparable units from competitors
• Audible and visual alarms and maintenance-needed indicators protect the cooling unit and the wine cellar
• 8-foot power cord exits from the front (left side) and plugs into standard 110V receptacles.
• A standard dedicated 15-amp circuit is required to power the unit.
• A 3-amp electric receptacle is provided to run a small lamp.
• Removable steel case provides access to the internal components for servicing and repair.
• CellarPro's 2-Year Standard Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
• ETL Tested and Certified to rigorous UL Standards for safety.

• On the hot side, this unit intakes and exhausts from the rear
• On the cold side, this unit intakes from the front and exhausts from the bottom (thus the front 8 inches of the cooling unit must be inside the cellar)
• This unit was not designed to be ducted
• This unit includes a compressor heater for installation in environments down to 20F.
• Installation in environments below 20F requires the addition of our fan cycling switch.
• A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down

Brand: CellarPro

UPC: 077757371660

Size: 18w x 22d x 10 3/4h (in)

Weight: 60 lbs

Power/Rating:
115V AC / 60 Hz
Compressor Amps:
- Running: 5.15 Amps
- Startup: 29.8 Amps
- Total Watts: 384
- Requires: Dedicated 15-Amp Circuit
- Recommended: Surge Protector
Decibels: 54 dBA (Rear)

Sizing Table: Click here to view sizing table

Warranty Resources
- Warranty Overview
- Limited Warranty - 2 Years (Entire System)

Click on one of the following links for more information:

• Sizing Table
• Owner's Manual
• Configuration Options

• Installation Diagrams

  • Installation with Mounting Clips
  • Installation with a Shelf
  • Wine Cabinet Replacement Instructions

• Adjustable Humidity Chart
• Sound Level
• Monthly Operating Cost
• Front, Rear & Side Views

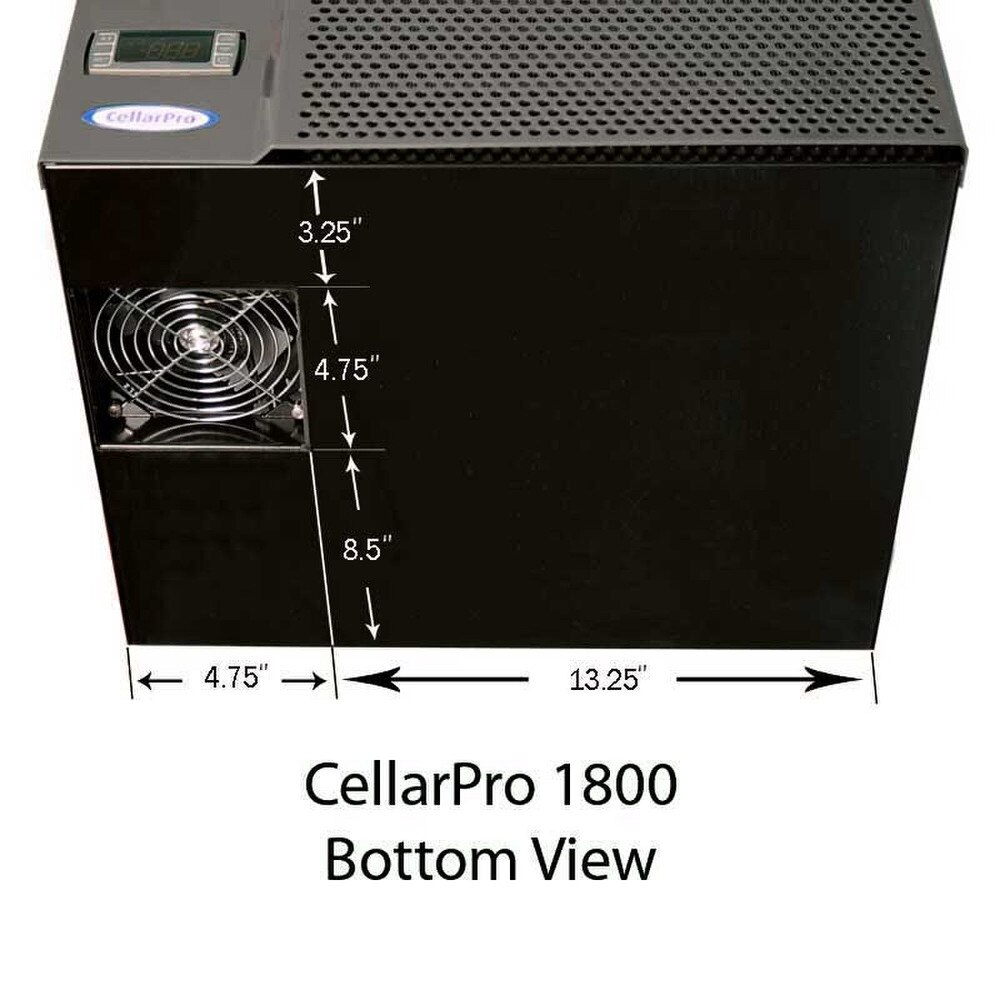

• Top & Bottom View
• Rear Drawings - As Ducted

Cold Temperature

• Compressor Heater #1727: protects the unit when installed in environments that drop below 40F down to 20F. INCLUDED
• Fan Cycling Switch #37131: supports the unit in temperatures below 20F down to -20F (self-contained and split systems with electronic control) when combined with our compressor heater.

Filters & Grills

• Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.

Maintenance

• Refer to filter replacements in the previous section.
• Evap Fresh #17984: Should be sprayed on the evaporator (cold-side) coils once a quarter, especially when the evaporator coils frequently have condensation, to extend the life of the evaporator coils and to reduce the growth of mold in the drain pan.
• Condenser Brush #1475: With a long handle and stiff bristles, the brush is ideal for cleaning off the dust and dirt that collect on the hot-side condenser coils, especially when a filter isn't used on the coils.

Remote Control & Probe

• Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
• Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
• Bottle Probe Extension Cords available in 25-foot (#1780) and 50-foot (#1781) lengths.

Other Options & Upgrades

• Condensate Drain Line: strongly recommended for wine cellar installations (but not required for wine cabinets), a drain line allows excess moisture to drain from the bottom (#7431) or rear (#1606) of the cooling unit. INCLUDED
• Condensate Drain Line plus Heating Element: combined with a drain line, we add a 100W heating element to burn of excess moisture. Available with bottom (#7432) or rear (#1709) drain lines.
• Power Cord Modification #1098: normally the cord exits from the rear of the cooling unit, which generally is outside the cellar; this modification moves the cord to the front of the cooling unit, so that it can be plugged into an outlet inside the cellar. INCLUDED
• Mounting Clips #1095: attached to the front of CellarPro 1800 Series cooling units, these clips are designed to be bolted to the ceiling inside the wine cabinet / cellar.

DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we'll send a replacement cooling unit to you per the terms of our Replacement Unit Program

CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we'll send a replacement cooling unit to you, as follows:

1. Your cooling unit must be registered at CellarPro
2. Your cooling unit must have been properly sized, installed and maintained
3. Your cooling unit may not have been permanently modified, damaged or disfigured

Please note:

• Replacement units are factory-refurbished cooling units with a similar build date as your original unit
• You are responsible for the shipping cost to send the replacement unit to you and return the original unit to us, and the cost (if any) to remove the original unit and install the replacement unit
• In order to send a replacement unit, we require a deposit, which will be refunded minus shipping costs upon the return and pending the inspection of the original unit
• If the original unit failed due to improper installation or use, the failure is not covered by warranty and we will deduct the cost of the repairs from the refund of your deposit

What is "Sensible BTUH"?

A: You should always use Sensible BTUH* when comparing different brands of cooling units, and when sizing a cooling unit for your wine cellar. Every cooling unit produces a certain amount of Total BTUH, which is the sum of Sensible BTUH (lowers the temperature) and Latent BTUH (lowers the relative humidity). Because our goal is to cool wine cellars while preserving humidity, wine cellar cooling units should have high Sensible BTUH and low Latent BTUH. The relationship between Sensible and Latent BTUHs is know as SHR (Sensible Heat Ratio), which is calculated as Sensible BTUH/Total BTUH. The SHR for CellarPro cooling units is greater than 90%, which means that CellarPro units provide maximum cooling power without stripping out humidity from the cellar environment.

*CellarPro Sensible BTUHs are calculated assuming 55F cellar temperature, 60% relative humidity and 95F ambient for all units except 1800 units (85F ambient).

How cold can the temperature be where the cooling unit is installed?

A: For installations in environments below 40F down to 20F, our compressor heater (P/N 1727), which is included as standard equipment on all outdoor units, will protect your system. Below 20F, in addition to the compressor heater, we recommend adding our fan cycling switch (P/N 6972)

How do I choose between top exhaust versus rear exhaust? What about the fresh air intake?

The fresh air intake will always come from the rear of the cooling unit, and must pull air from OUTSIDE the wine cellar space - it must never be installed to pull air from inside the cellar. This outdoor unit is designed to pull fresh air and vent its hot exhaust to the outdoors from the rear surface of the cooling unit where the outdoor hood is installed.

Does the unit really need a dedicated circuit?

A: First, the background. Unlike our competitors, we build our cooling units with precision expansion valves, not cap tubes, which means that our cooling units aren't limited to a 30F differential between the desired cellar temperature and the ambient temperature. Cooling systems with expansion valves are much more precise than cap tubes, and much more sensitive to low voltage conditions, which is why our units require dedicated circuits. When we say "dedicated circuit", we mean that the circuit shouldn't have any items that require heavy draws of electricity - eg other appliances, vacuum cleaners, big-screen TVs, blow-dryers - on the same circuit as the cooling unit. Lighting, computers or other low-draw items shouldn't be a problem on the same circuit.

Can the cooling unit be located in a remote location and ducted to/from the wine cellar?

A: These cooling units can be installed above the wine cellar when used with our front intake hood and “ducted” the short distance through the floor joists. Otherwise, the air to and from the cellar cannot be ducted.

Does the unit need to be installed through the wall, or can I install the entire unit inside the cellar?

A: Outdoor units are not designed to be installed completely inside the cellar.

Do I need the condensate drain line?

A: This unit includes the rear drain line as standard equipment, which will allows condensate to drain outdoors.
