Ducted Air Handler Split 1 Ton AH8500Sx Outdoor #7110

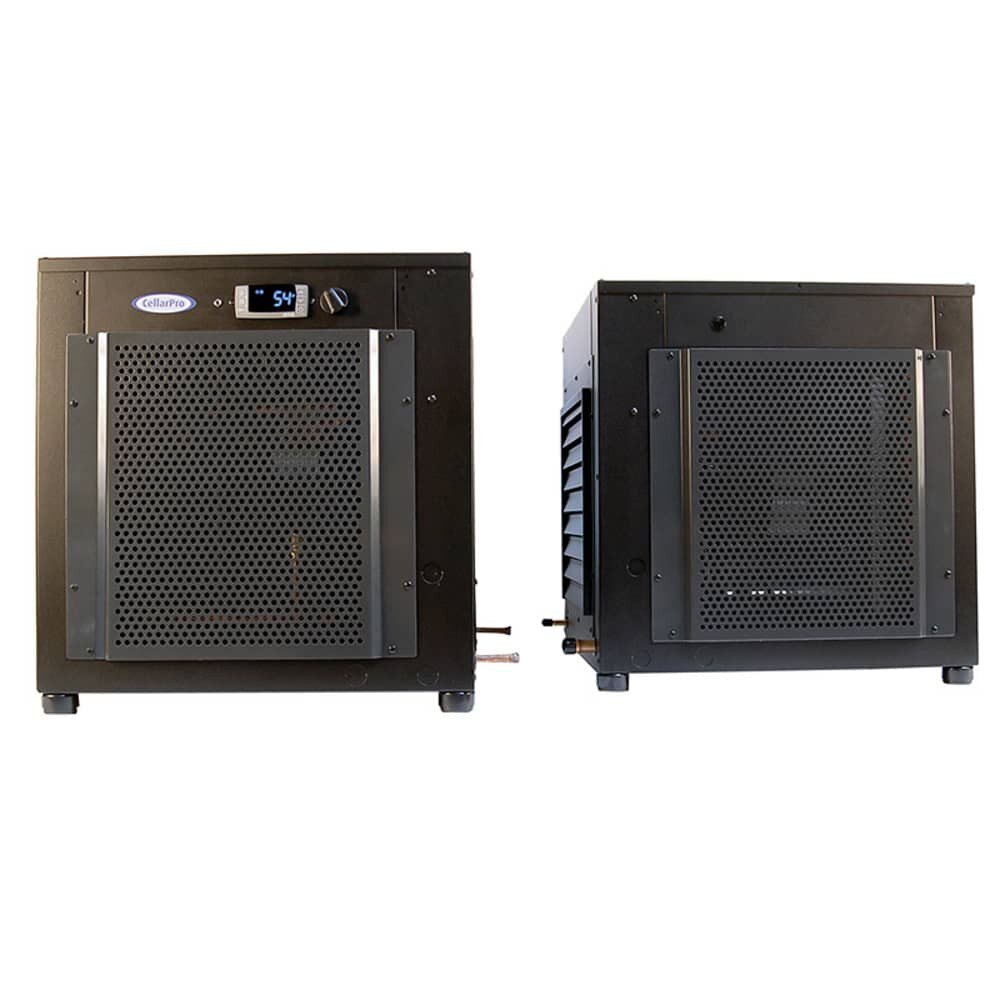

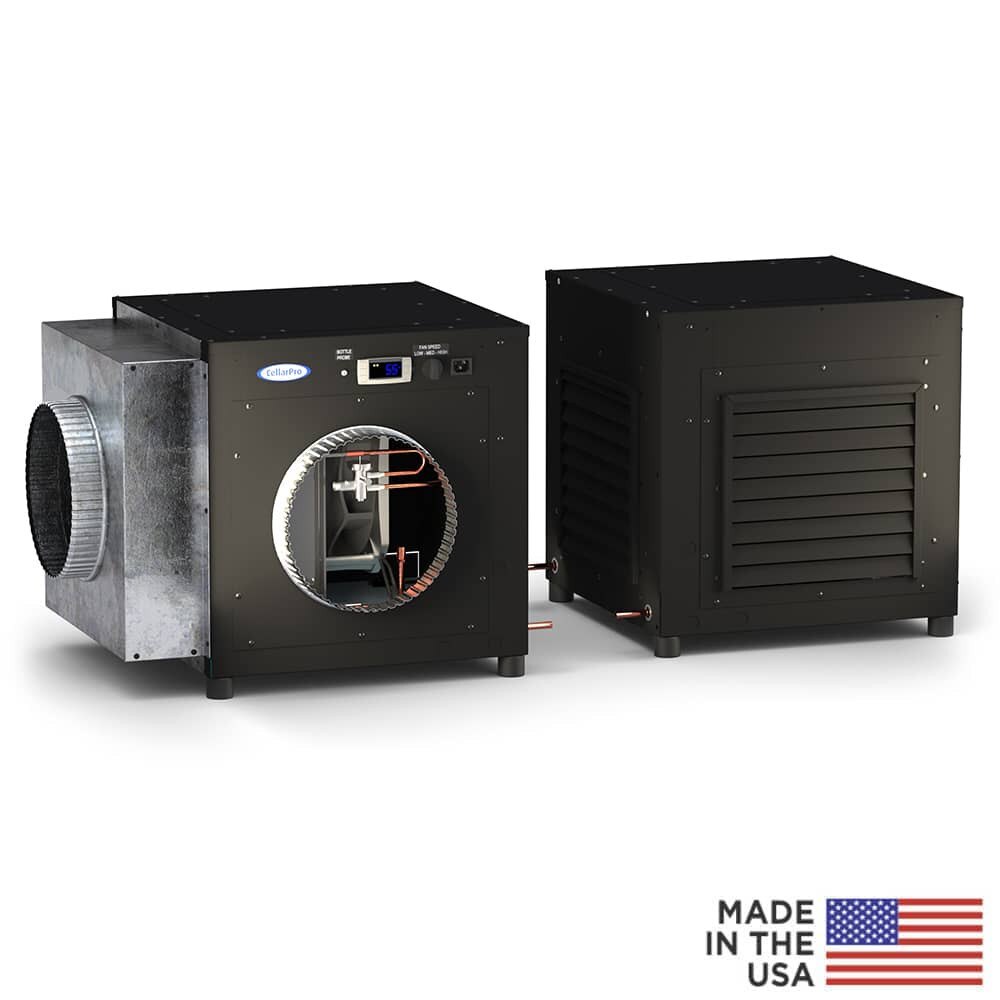

CellarPro AH8500Sx-ECX Cooling Unit (P/N 7110). CellarPro engineered the AH8500Sx-ECX ducted cooling system to provide maximum cooling power and adjustable humidity control for cellars up to 2,500 cubic feet with the condensing unit located in an exterior environment. The evaporator and the condensing unit each can be ducted up to 100 equivalent feet (50 equivalent feet per duct.) As a split system, the evaporator can be separated from the condensing unit up to 100 feet, allowing the noise and heat from the condensing unit to be located away from interior living areas. The AH8500Sx-ECX includes independent energy-efficient variable-speed EC fans with a low setting for quieter operation and a high setting for maximum power.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar.

7156 SENSIBLE BTUH @ 55F.
CellarPro's AH8500Sx-ECX ducted cooling units (1 Ton Nominal) are engineered for wine cellars up to 2,500* cubic feet in both commercial and residential wine cellars. When ducted, this unit uses 10-inch insulated ducting on the cold side, and exterior grills on the hot side.

This unit maintains optimal cellar temperature and humidity conditions in extreme conditions up to 110F. AH8500Sx units use energy-efficient EC fans and are significantly quieter than comparable units from other brands. Visit our Learning Center for data tables, performance charts and product comparisons among different brands.

Our Compressor Heater (P/N 1727) is included to protect the compressor from in temperatures down to 20F. For installation of the condensing unit in environments below 20F down to -20F, our Fan Cycling Switch (P/N 6972) is a required addition, and Electronic Configuration is required.

Visit our Learning Center for data tables, performance charts and product comparisons among different brands.

*Assuming R19 insulation throughout the cellar, 55F inside the cellar and 85F outside the cellar. Cold-side ducting, glass and/or uninsulated walls, extreme humidity, altitude and other factors may affect the sizing calculation.

Please note: Our units were not designed for, and our warranty does not cover damage from, marine exposure (within 5 miles of the ocean). In these environments, you will need an applied coating, such as Insitu®, to protect outdoor components against corrosion that is common in coastal regions.

Our cooling units are designed to be used in properly-constructed wine cellars that are adequately insulated, airtight and sealed with a vapor barrier. In improperly-constructed cellars, the cooling unit will create excess condensation, leading to damage and premature failure of your cooling unit (not covered by warranty).

• Now with energy-efficient EC Fans on both the cold and hot sides, save $300.77 in annual energy costs vs AC fans (assumes 75% runtime and $0.15/kWh)
• CellarPro Air Handlers are engineered to be ducted with 10-inch insulated ducting on the cold side (evaporator) allowing the equipment can be located away from the wine cellar so that space inside the cellar can be maximized for wine storage and racking.
• Split systems are designed to separate the evaporator from the condensing unit up to 100 feet.
• AH8500Sx-ECX condensing units can be placed outdoors, thereby separating the heat and noise from interior living spaces.
• Our exterior Air Handler condensing unit includes an exterior housing for protection against the elements, and a compressor heater that provides protection in temperatures down to 20F.
• High-output EC fans provide more airflow and variable speed settings for your choice of cooling power.
• Optional integrated humidifier provides the ultimate control of moisture levels inside your cellar.
• Optional integrated heater provides heat for wine cellars that are exposed to temperatures below 55F.
• Extra-large coils generate maximum cooling power inside the cellar.
• Excess condensate is managed through a 1/2" drain line that exits from a choice of knockouts in the evaporator.
• Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.
• Intuitive LED display panel mounted on the evaporator with digital programmable thermostat is simple and easy to use. Remote thermostat is available as an upgrade.
• Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
• Temperature set point range is 47F to 62F when the cooling unit is properly sized.
• Unit operates with minimal vibrations and less noise than comparable units from competitors.
• Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
• Remote probe for the cellar (bottle probe), air filter and duct adapters are included as standard equipment, and multiple knockouts and access points ensure easy installation.
• Factory-installed Expansion Valve and Liquid Line Solenoid Valve (optional) ensure maximum operating precision and range.
• Removable steel case and refrigerant access valve provides access to the external components for servicing and repair.
• Sight Glass and Liquid Line Filter/Drier are included for easy installation and maintenance.
• Oversized Receiver allows for long line sets up to 100 equivalent feet and up to 30 vertical feet.
• Auto-reset high-pressure switch protects the system by interrupting power to the compressor when system pressure is too high.
• Evaporator and Condensing Unit are factory-pressurized and shipped with dry nitrogen to ensure leak-free installation.
• CellarPro's 2-Year/5-Year Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
• An optional Extended Warranty (P/N 31489) is available for additional protection.
• ETL Tested and Certified to rigorous UL Standards for safety.

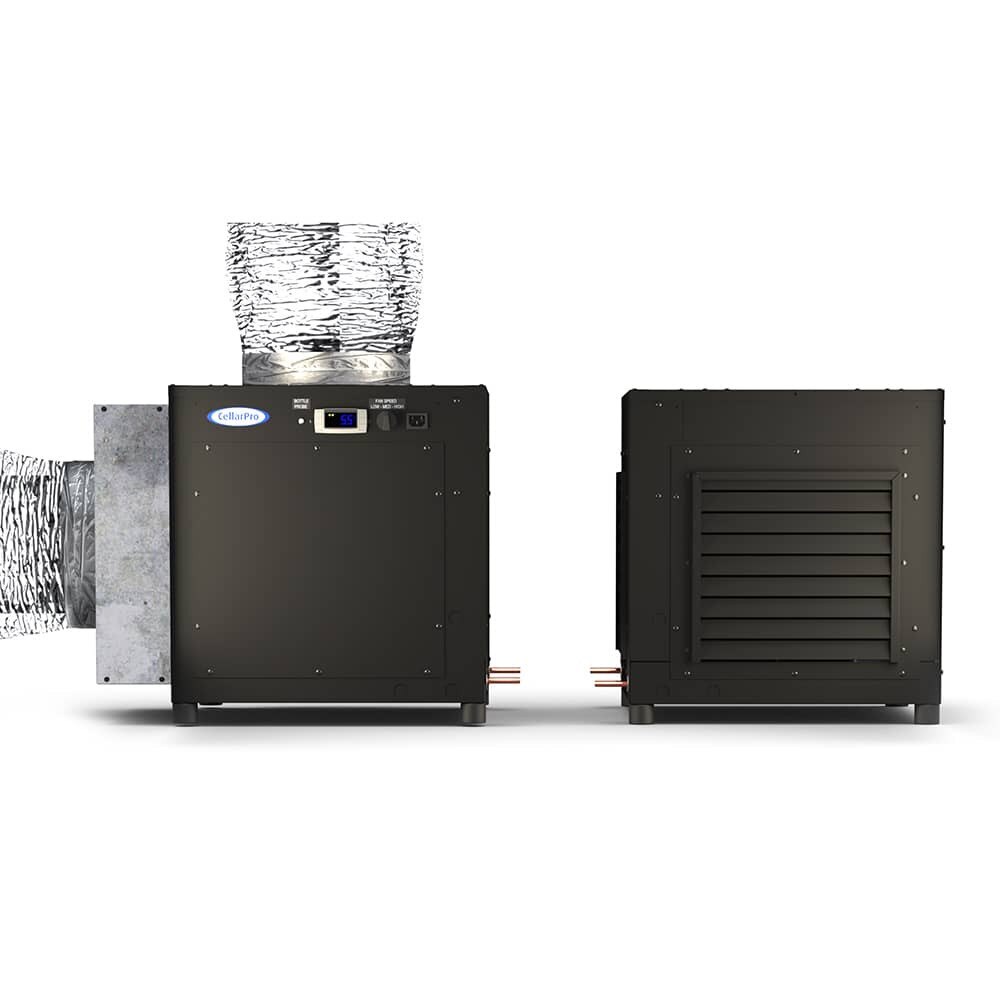

• CellarPro AH8500Sx-ECX units are designed to be ducted, with the evaporator near (or inside) the cellar, and the condensing unit in a remote exterior location up to 100 feet away.
• The evaporator can be ducted up to 100 Equivalent Feet (50 Feet per Duct) with 10-inch ducting.
• CellarPro's split configuration allows multiple ducting alternatives, as follows.

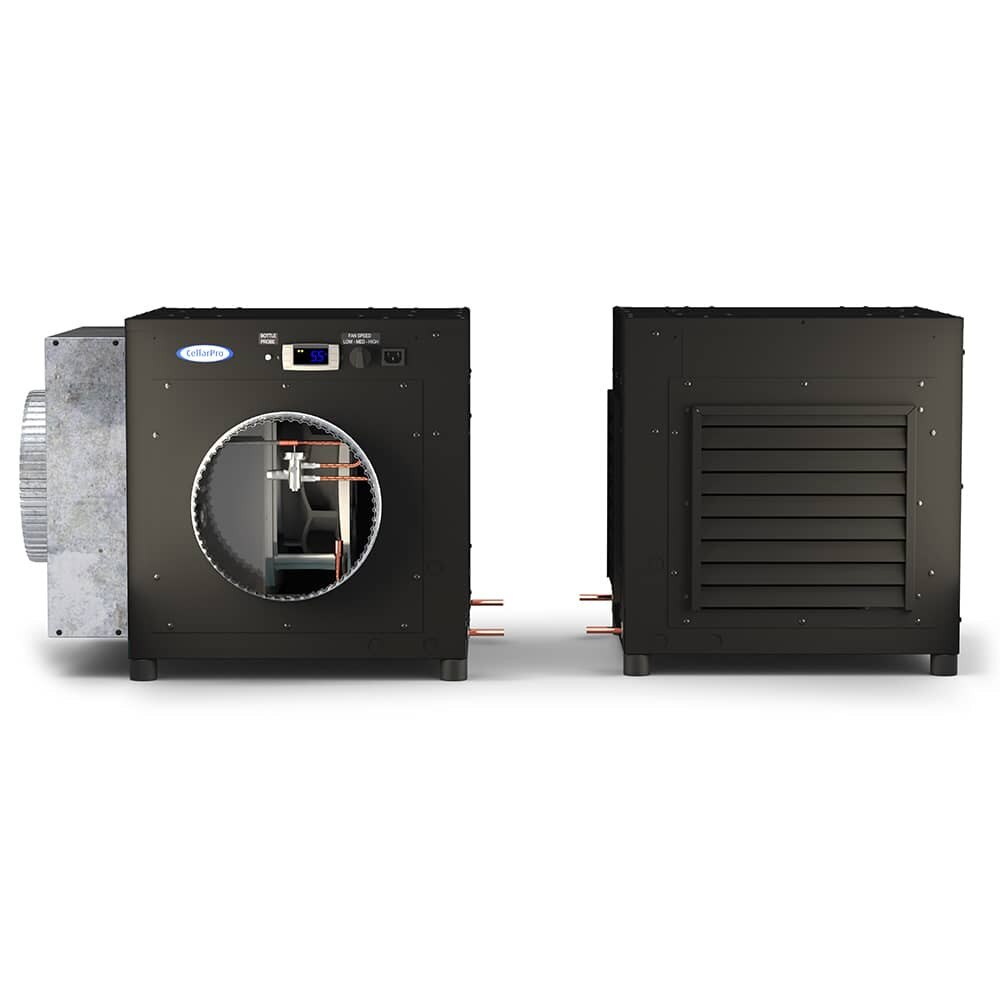

  1. Collars or grills for EXHAUST (ie Supply) are located at the front (shown at left), top or rear of the evaporator, and are interchangeable to meet your specific requirement.
  2. Collars or grills for INTAKE (ie Return) are located on the left side of the evaporator.
  3. The condensing unit includes professional-grade air filters to protect the unit.
• A bottle probe temperature sensor (10' cord) plus your choice of duct collars, indoor grills and blank plates are included in the price of the cooling system.
• CellarPro Air Handler Split systems offer a choice of 110V / 60Hz wiring and power configurations:
1. Two permanent power connections for the evaporator (2.0 amps / 15 amp circuit breaker) and the condensing unit (15.7 amps / 25 amp circuit breaker). This wiring configuration is recommended for Valve Control.
2. One permanent power connection for the entire system (25 amp circuit breaker). In this configuration, the condensing unit must be wired to the evaporator, and must be used with Electronic Control.
3. The amp data above is not valid when the integrated heater and/or humidifier are configured with the cooling unit - please consult those Owner's Manuals for the additional amps required when using those upgrades.
• When the control panel is difficult to access, we offer a remote control display kit which is wired to the cooling unit and allows the digital display to be mounted inside or outside the cellar.
• The condensing unit requires 12 inches of unobstructed space in front of the coils, and requires approx. 600-700 CFM of ventilation when installed in a confined space.
• AH8500Sx-ECX units include our Compressor Heater (P/N 1727) to protect the condensing unit in environments that drop below 40F.
• For installation in environments below 20F down to -20F , Electronic Control is the required configuration, and our Fan-Cycling Switch (P/N 6972) is required (sold separately).
• The evaporator should never be exposed to temperatures below 32F.
• Access to the left and right side of the evaporator unit is required for installation.
• All split systems must be installed and charged on site by a qualified HVAC professional. Line-set equivalent feet must be calculated in accordance with ASHRAE guidelines; refer to our Line Sizing Chart for more information.
• A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.
• We ship these units strapped to a pallet via common carrier with curbside delivery. Inside delivery is available for an additional charge.
• To activate your warranty, you must complete and return our Installation Checklist.

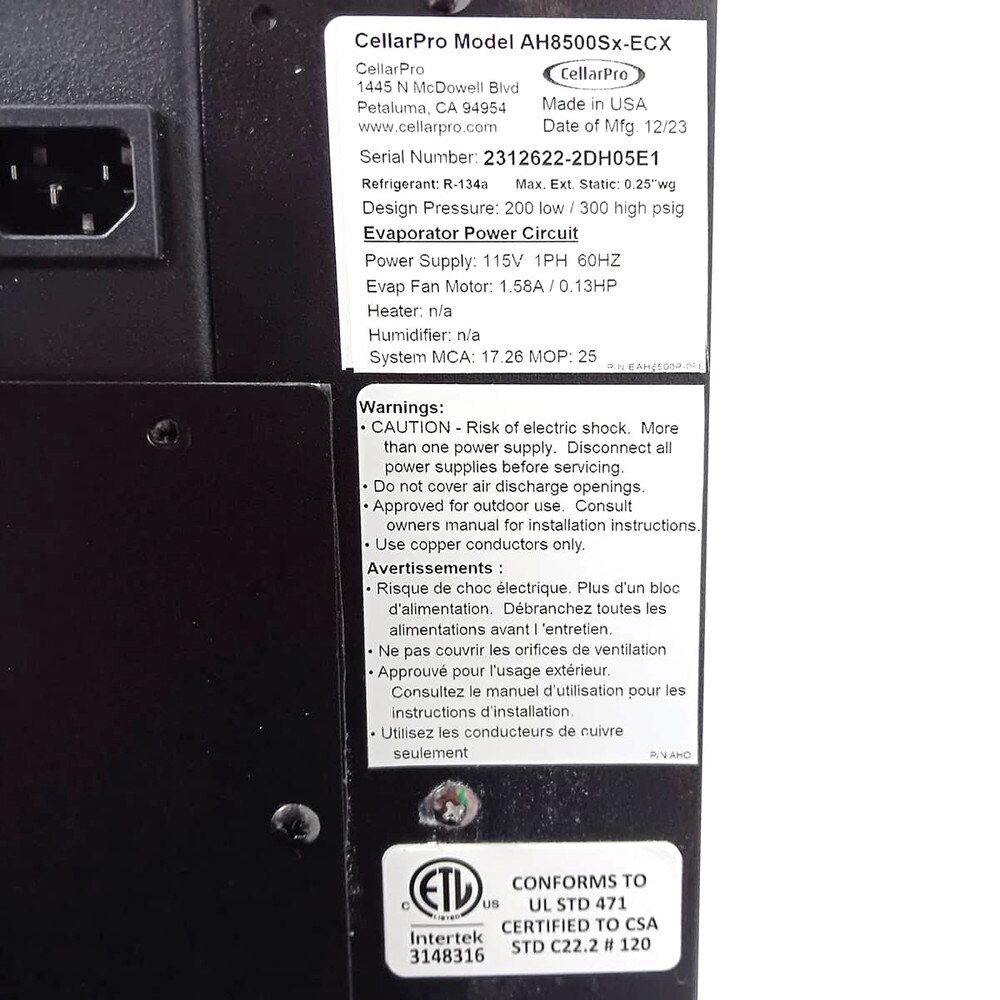

Brand: CellarPro

UPC: 077757071102

Size:
Condensing Unit Dimensions:
- 120 lbs (no humidifier)
- 18.6w x 18.6d x 19.3h

Evaporator Unit Dimensions:
- 60 lbs
- 18.6w x 18.6d x 19.3h

Power/Rating: - CellarPro Air Handler Split systems offer a choice of 110V / 60Hz wiring and power configurations:

1. Two permanent power connections for the evaporator (2.0 amps / 15 amp circuit breaker) and the condensing unit (15.7 amps / 25 amp circuit breaker). This wiring is recommended for Valve Control configurations.
2. One permanent power connection for the entire system (25 amp circuit breaker). In this configuration, the condensing unit must be wired to the evaporator, and must be used with Electronic Control.

- Startup Amps: 54.5 Amps
- Running Amps Cord-Connected: 14.6 Amps
- Total Watts: 1078 (medium fan speed)
- 1 Ton Nominal

BTUH @ 55F
- Low Fan Speed: 6245
- Med Fan Speed: 6649
- High Fan Speed: 7156

Evaporator Decibels
- Low Fan Speed, Ducted: 38 dbA
- Med Fan Speed, Ducted: 44 dbA
- High Fan Speed, Ducted: 52 dbA

Condensing Unit Decibels
- Low Fan Speed Non-Ducted: 58 dbA
- Med Fan Speed, Non-Ducted: 65 dbA
- High Fan Speed, Non-Ducted: 70 dbA

Sizing Table: Click here to view sizing table

Warranty:
- 2 Years (Entire System)
- To activate your warranty, you must complete and return our Split Installation Checklist.
- Optional Extended Warranty (sold separately.)

Click on one of the following links for more information:

• Spec Sheet
• Sizing Table
• Monthly Operating Cost
• Evaporator/Condensing Unit Cut Sheet
• Ducting Configurations
• Line Sizing Chart
• Configuration Options
• Refrigerant Piping Handbook
• Owner's Manual
• Product Brochure
• Installation Checklist

Cold Temperature

• Compressor Heater #1727: protects the unit when installed in environments that drop below 40F down to 20F. Included.
• Fan Cycling Switch #6972: supports the unit in temperatures below 20F and as low as -20F when configured with Electronic Control and combined with our compressor heater.

Filters & Grills

• Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.

Maintenance

• Refer to filter replacements in the previous section.
• Evap Fresh #17984: Should be sprayed on the evaporator (cold-side) coils once a quarter, especially when the evaporator coils frequently have condensation, to extend the life of the evaporator coils and to reduce the growth of mold in the drain pan.
• Condenser Brush #1475: With a long handle and stiff bristles, the brush is ideal for cleaning off the dust and dirt that collect on the hot-side condenser coils, especially when a filter isn't used on the coils.

Remote Thermostats, Displays & Probes

• Networkable Thermostats #27346 and #27310: connect your cooling unit to a networkable, wi-fi enabled thermostat (sold separately). Must be ordered at the same time that the equipment is ordered. Other limitations apply - read the networkable thermostat description for more information. Includes 10 feet of wiring.
• Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring. Additional wiring is available at a cost of $0.50 per additional foot.
• Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar - included.
• Bottle probe extension cords are available in 25-foot (#1780) and 50-foot (#1781) lengths.

Heating & Humidification

• Integrated Heater 900W #7237: adds 900 watts of heat through the cooling system when the cellar is in an unheated environment and will be exposed to temperatures below desired wine storage temperatures.
• Integrated Humidifier #36521: provides humidification with digital control inside the cellar when attached to an external water line.

DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we'll send a replacement cooling unit to you per the terms of our Replacement Unit Program

CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we'll send a replacement cooling unit to you, as follows:

1. Your cooling unit must be registered at CellarPro
2. Your cooling unit must have been properly sized, installed and maintained
3. Your cooling unit may not have been permanently modified, damaged or disfigured

Please note:

• Replacement units are factory-refurbished cooling units with a similar build date as your original unit
• You are responsible for the shipping cost to send the replacement unit to you and return the original unit to us, and the cost (if any) to remove the original unit and install the replacement unit
• In order to send a replacement unit, we require a deposit, which will be refunded minus shipping costs upon the return and pending the inspection of the original unit
• If the original unit failed due to improper intallation or use, the failure is not covered by warranty and we will deduct the cost of the repairs from the refund of your deposit

What is ""Sensible BTUH""?

A: You should always use Sensible BTUH* when comparing different cooling unit brands and when sizing a cooling unit for your wine cellar. Every cooling unit produces a certain amount of Total BTUH, the sum of Sensible BTUH (lowers the temperature) and Latent BTUH (lowers the relative humidity). Because our goal is to cool wine cellars while preserving humidity, wine cellar cooling units should have high Sensible BTUH and low Latent BTUH. The relationship between Sensible and Latent BTUHs is known as SHR (Sensible Heat Ratio), calculated as Sensible BTUH/Total BTUH. The SHR for CellarPro cooling units is greater than 90%, which means that CellarPro units provide maximum cooling power without stripping out humidity from the cellar environment.

*CellarPro Sensible BTUHs are calculated assuming 55F cellar temperature, 60% relative humidity and 95F ambient for all units except 1800 units (85F ambient).

What's the difference between a split system and ""through the wall"" or ""self-contained"" systems?

A: Split systems are ""split"" into two parts: the cold side (evaporator), which is usually installed inside the cellar, and the hot side (condensing unit), which is installed away from the cellar. The benefit of having this split is that the heat and noise from the condensing unit can be located far away from living spaces where they won't interfere with day-to-day life.

Are split systems more difficult to install than self-contained systems?

A: Yes, because split systems require installation by a licensed HVAC technician (unless you are purchasing our quick-connect split system.) In contrast, self-contained units can be mounted through the wall and shipped fully charged and operational out of the box.

What's the difference between valve control and electronic control? Which is better?

A: The most significant difference between the valve and electronic control is that, with electronic control, the condensing unit receives power directly from the evaporator, whereas with valve control, the condensing unit is independently powered and turns on/off based on the solenoid valve. Valve control is more common in the industry and benefits from not having to run a power line from the evaporator to the condensing unit but cannot operate in temperatures below 0F. Electronic control offers more precision and allows the condensing unit to be placed in temperatures down to -20F (with the addition of a compressor heater and fan cycling switch.)

Can the evaporator be located remotely and ducted to/from the wine cellar?

A: Ceiling-mount evaporators are designed to be installed in the cellar's ceiling. They are not designed to be ducted.
