Self Contained 1/5 Ton Outdoor 2000VSx-ECX #27057

3 Reviews
SKU: 27057 2000VSx-ECX
$3,695.00
In Stock

Usually Ships w/i 3-5 Days

Shipping Information:

LTL Truck / Curbside

Free Shipping! Receive free curbside delivery in the lower 48 states for a limited time. Simply add to your cart and checkout.

Overview

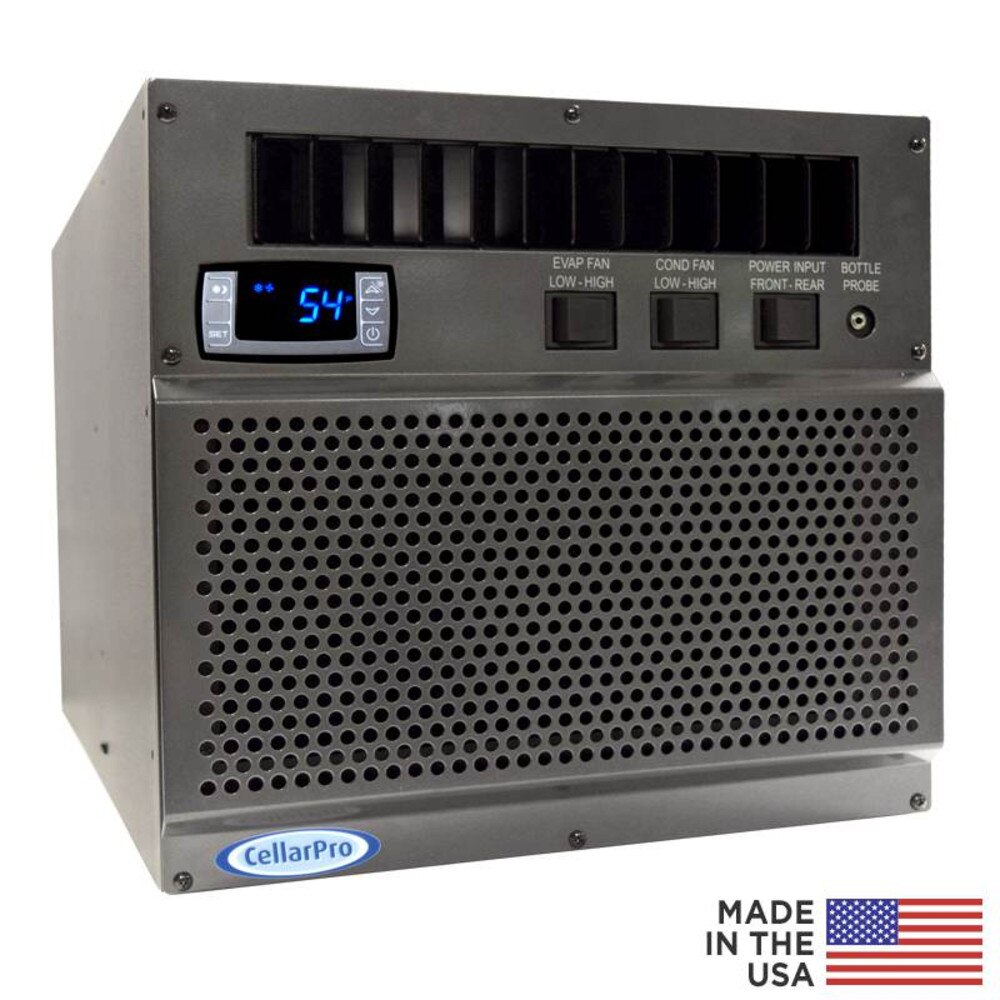

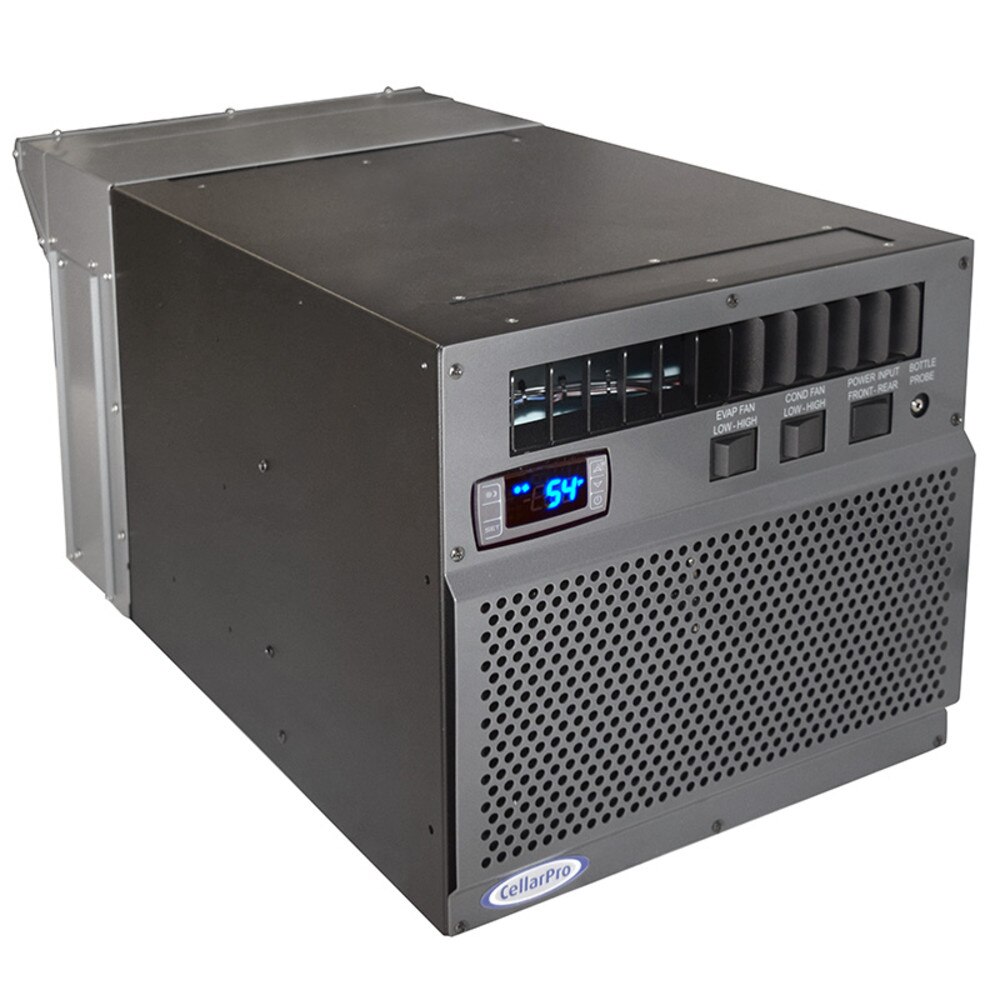

CellarPro 2000VSx-ECX Cooling Unit (P/N 27057). NOW WITH ENERGY-EFFICIENT EC FANS! CellarPro engineered the low profile 2000VSi cooling unit specifically for installations in wine cellars with limited space and exterior exposure for the hot side.

Just 14 1/8-inches wide and 13 1/4-inches tall, the 2000VSi cooling unit will fit in between studs and/or above door frames. Dual independent variable-speed fans offer flexibility to trade-off between super-quiet operation vs maximum performance.

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The fresh air intake CANNOT come from the wine cellar space - it must come from space outside the cellar.

Before purchasing this unit, let us calculate the thermal load of your wine cellar. The unit can be remotely located and ducted to/from the cellar using our cold-side duct hood, or located through a cellar wall (with or without a decorative grill - not included.)

Details

1886 SENSIBLE BTUH @ 55F.
CellarPro 2000VSx-ECX cooling units (1/5 Ton Nominal) use energy-efficient EC fans and are suitable for external installations from 20F to 110F and are designed for low profile installations in commercial and residential wine cellars up to 400 cubic feet* (see assumptions below).

Features include:

  • Cold intake and exhaust exit from the front

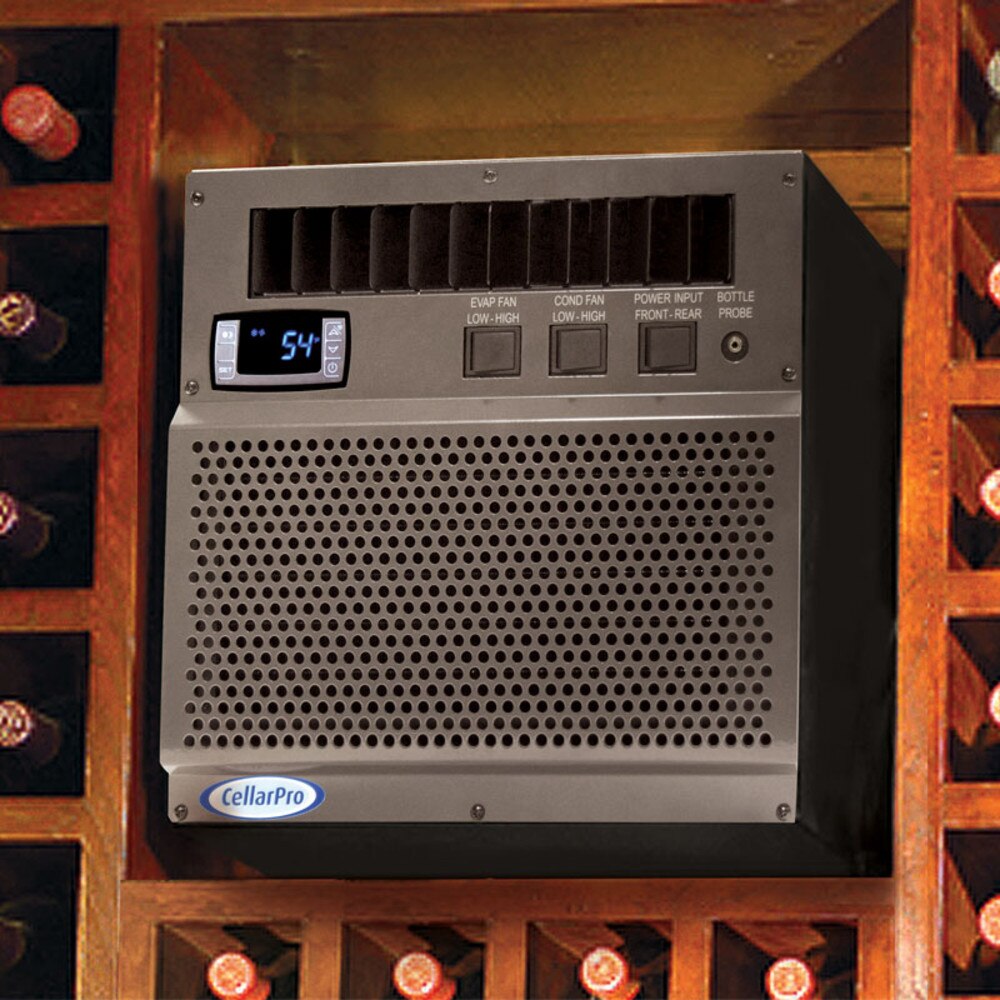

    • Maximize racking below the cooling unit
    • Better air circulation inside the cellar
  • Low profile for maximum flexibility

    • Shallow height fits above doors: 13 1/5" H
    • Shallow width fits in between studs: 14 1/8" W
  • Upgrades for exterior exposure

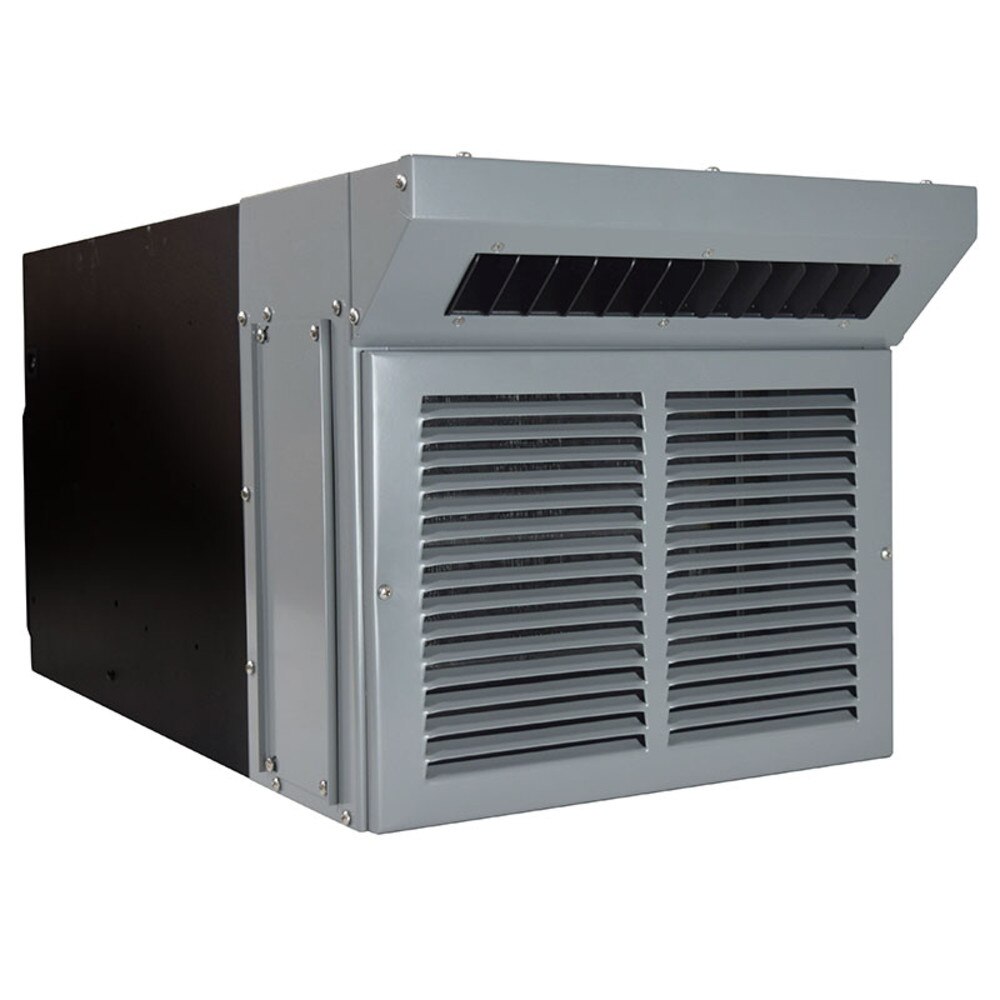

    • Exterior weather hood to cover the rear of the cooling unit
    • Coated condenser coils
    • Cold-temperature compressor heater, allows exposure down to 20F
    • Reusable aluminum filter
    • Exterior-grade power cord
  • Variable-speed fan inside the cellar

    • 1886 SENSIBLE BTUH on high fan speed
    • 1713 SENSIBLE BTUH on low fan speed
  • Variable-speed fan outside the cellar

    • 110F maximum intake temperature / 61.5 dBA on the high fan speed
    • 100F maximum intake temperature / 55.5 dBA on the low fan speed
  • Cooling unit can be ducted on the cold side

    • To duct, our OEM duct hoods are required
    • Cold side ducting should be insulated to R6 or better, and all corners must use rigid ducting
  • Condensate management system

    • Oversized stainless-steel drain pan
    • 1/2" ID drain line for excess condensate
    • 100W heating element
  • Choice of power source

    • Front or rear
    • Removable 10-ft cord
  • Optional remote display
  • Optional bottle probe
  • Optional fan-cycling switch allows exposure to temperatures down to -20F


*400 cubic feet assumes

  • the cellar is constructed with insulation of R19 or better in all walls and ceiling (ie no glass or uninsulated concrete),
  • the cooling unit is not ducted, a setpoint of 55F inside the cellar and
  • ambient temperatures up to 85F outside the cellar

Please note: Our units were not designed for, and our warranty does not cover damage from, marine exposure (within 5 miles of the ocean). In these environments, you will need an applied coating, such as InsituÃ"�Â�, to protect outdoor components against corrosion that is common in coastal regions.

Our cooling units are designed to be used in properly-constructed wine cellars that are adequately insulated, airtight and sealed with a vapor barrier. In improperly-constructed cellars, the cooling unit will create excess condensation, leading to damage and premature failure of your cooling unit (not covered by warranty).

Features

  • Features energy-efficient EC Fans on both the cold and hot sides

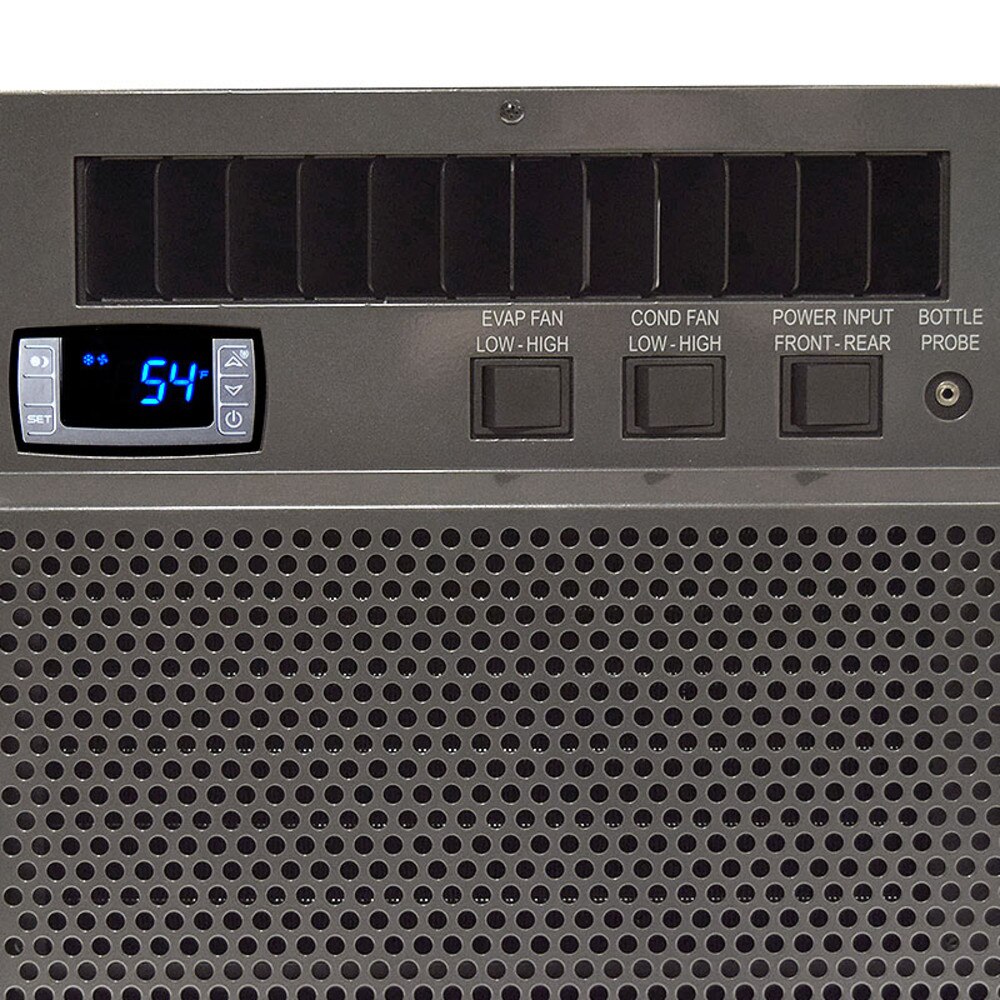

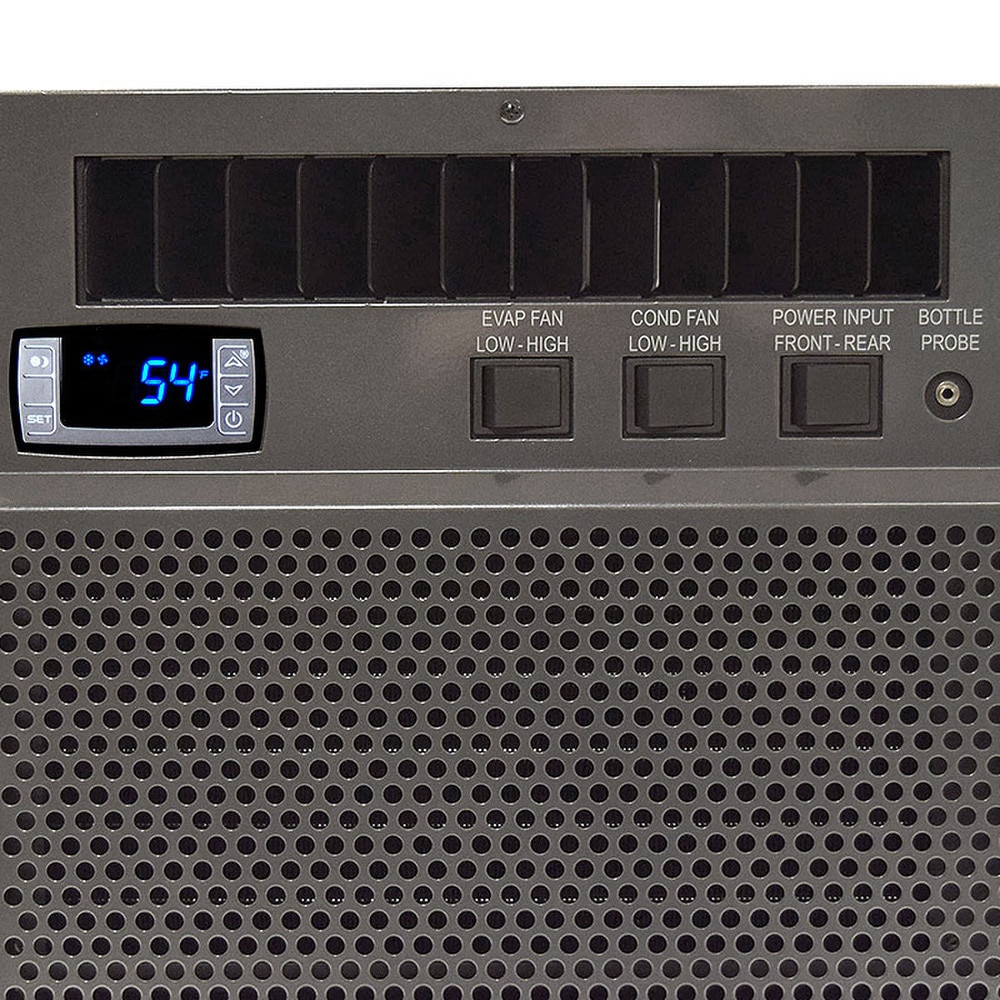

  • Intuitive LED display panel mounted on the evaporator with digital programmable thermostat is simple and easy to use. Remote thermostat is available as an upgrade
  • Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
  • Commercial-grade Electrofin coating protects the evaporator and condenser coils from leaks and corrosion.
  • Low profile for maximum flexibility
  • Shallow height fits above doors: 13 1/4" H
  • Shallow width fits in between studs: 14 1/8" W
  • Upgrades for exterior exposure
    • Exterior weather hood to cover the rear of the cooling unit
    • Coated condenser coils
    • Commercial-grade Electrofin coating protects the evaporator and condenser coils from leaks and corrosion.
    • Cold-temperature compressor heater, allows exposure down to 20F
    • Reusable aluminum filter
    • Exterior-grade power cord
  • Variable-speed fan inside the cellar
    • 1886 BTUH on high fan speed
    • 1713 BTUH on low fan speed
  • Variable-speed fan outside the cellar
    • 110F maximum intake temperature / 61.5 dBA on the high fan speed
    • 100F maximum intake temperature / 55.5 dBA on the low fan speed
  • Condensate management system
    • Oversized stainless-steel drain pan
    • 1/2" ID drain line for excess condensate
    • Optional 100W heating element
  • Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
  • Temperature set point range is 47F to 62F when the cooling unit is properly sized.
  • Unit operates with minimal vibrations and less noise than comparable units from competitors.
  • Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
  • With dual power sources and a 10-foot power cord, the unit can be plugged into a receptacle from either the front or the rear of the cooling unit, providing flexibility for most installations.
  • Common dedicated 15-amp circuit is required to power the unit.
  • Our easy-access reusable aluminum air filter protects the condenser coils and increases the expected useful life of the cooling unit.
  • Adjustable mounting brackets, included as standard equipment, ensure easy installation.
  • Removable steel case and refrigerant access valve provides access to the internal components for servicing and repair.
  • CellarPro's 5-Year Standard Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
  • An optional Extended Warranty (P/N 1836) is available for additional protection.
  • ETL Tested and Certified to rigorous UL Standards for safety.

Configurations


Configurations

  • CellarPro 2000VSx-ECX units are self-enclosed, fully-charged units designed to be installed through an external wall and sized to fit in between standard wall studs.
  • 2000VSx-ECX units also can be located remotely from the cellar with the addition of one of our cold-side duct packages. Offered with or without insulated flex ducting, in a choice of configurations for low or high humidity conditions, our cold-side duct packages allow these cooling units to be ducted up to 50 equivalent feet(25' per duct). Ducting must be 8-inch (or greater) from start to finish.
  • When calculating equivalent feet, each 90-degree turn counts for 8 feet.
  • For remote or inaccessible installations, we offer a remote control display kit which is wired to the cooling unit and allows the digital display to be mounted inside or outside the cellar.
  • 2000VSx-ECX units require fresh air intake at the rear of the cooling unit, and are designed to handle environments ranging from 20F to 110F
  • For installation in environments below 20F down to -20F, it will be necessary to add our Fan-Cycling Switch (P/N 6972).
  • The front of the cooling unit should never be exposed to temperatures below 32F.
  • A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.

Specs & Resources

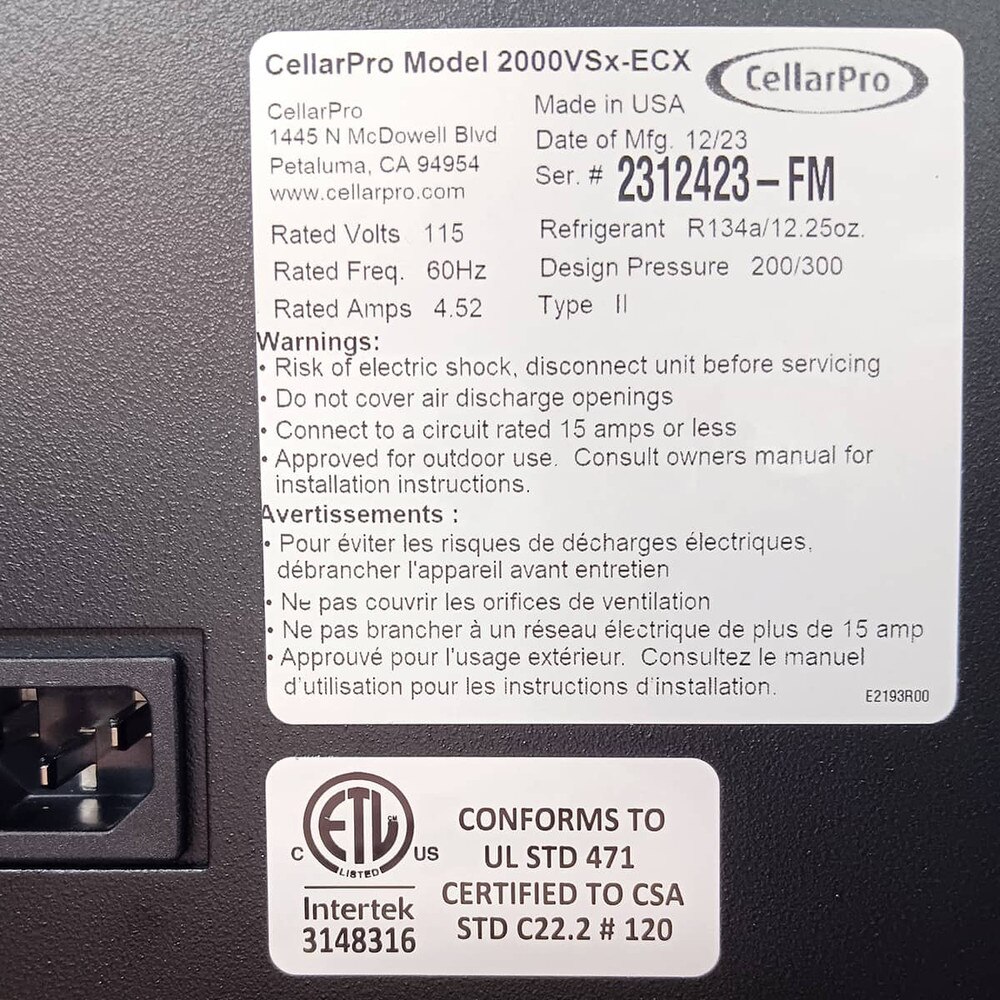

Brand: CellarPro

UPC: 077757270574

Size: 14 3/4w x 27 7/8d x 13 3/8h (in)

Weight: 81 lbs

Power/Rating:
115V AC / 60 Hz
Compressor Amps:
- Startup (LRA): 22.2 Amps
- Unit Amp Rating: 4.5 Amps
- Total Watts with Fans on Low: 350
- Total Watts with Fans on High: 361
- Compatible with Dedicated 15-Amp Circuit

BTUH @ 55F:
- Low Fan Speed: 1713 BTUH
- High Fan Speed: 1886 BTUH
- 1/4 Ton Nominal

PLACEMENT REQUIREMENTS
- 110F Max Intake Temperature / 61.5 dBA (high fan speed)
- 100F Max Intake Temperature / 55.5 dBA (low fan speed)

Sizing Table: Click here to view sizing table

Warranty Resources
- Limited Warranty - 2 Years (Entire System) / 5 Years (Compressor)
- Optional Extended Warranty (sold separately).

Click on one of the following links for more information:


Options & Upgrades

Cold Temperature

  • Compressor Heater #1727: protects the unit when installed in environments that drop below 40F down to 20F.
  • Fan Cycling Switch #6972: supports the unit in temperatures below 20F and as low as -20F when combined with our compressor heater.

Condensate Management

  • 100W Heating Element#27318: Designed to burn off condensate to reduce or eliminate condensate flow exiting from the drain line - INCLUDED AS STANDARD EQUIPMENT

Hoods

  • Duct Hood (Cold Side)#27107and Kit#27104: permits the cooling unit to be located remotely, and duct the airflow up to 50 equivalent feet (25' per duct). Cold-side ducting must be 8" (or greater) from start to finish
  • Duct Kits are the same as Duct Hoods, and also include 2 x 25-feet of insulated (R-6) flex ducting.
  • The duct items above are designed for installation in climate-controlled environments. Choose our High RH duct hood #27108 or kit #27105 for installation in environments that are NOT climate controlled.

Filters & Grills

  • Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.

Maintenance

  • Refer to filter replacements in the previous section.
  • Evap Fresh #17984: Should be sprayed on the evaporator (cold-side) coils once a quarter, especially when the evaporator coils frequently have condensation, to extend the life of the evaporator coils and to reduce the growth of mold in the drain pan.
  • Condenser Brush #1475: With a long handle and stiff bristles, the brush is ideal for cleaning off the dust and dirt that collect on the hot-side condenser coils, especially when a filter isn't used on the coils.

Remote Thermostats, Displays & Probes

  • Networkable Thermostats #27346 and #27310: connect your cooling unit to a networkable, wi-fi enabled thermostat (sold separately). Must be ordered at the same time that the equipment is ordered. Other limitations apply - read the networkable thermostat description for more information. Includes 10 feet of wiring.
  • Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
  • Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
  • Bottle Probe Extension Cords available in 25-foot (#1780) and 50-foot (#1781) lengths.

DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we'll send a replacement cooling unit to you per the terms of our Replacement Unit Program

CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we'll send a replacement cooling unit to you, as follows:

  1. Your cooling unit must be registered at CellarPro
  2. Your cooling unit must have been properly sized, installed and maintained
  3. Your cooling unit may not have been permanently modified, damaged or disfigured

Please note:

  • Replacement units are factory-refurbished cooling units with a similar build date as your original unit
  • You are responsible for the shipping cost to send the replacement unit to you and return the original unit to us, and the cost (if any) to remove the original unit and install the replacement unit
  • In order to send a replacement unit, we require a deposit, which will be refunded minus shipping costs upon the return and pending the inspection of the original unit
  • If the original unit failed due to improper installation or use, the failure is not covered by warranty and we will deduct the cost of the repairs from the refund of your deposit

Q&A

What is "Sensible BTUH"?

A: You should always use Sensible BTUH* when comparing different brands of cooling units, and when sizing a cooling unit for your wine cellar. Every cooling unit produces a certain amount of Total BTUH, which is the sum of Sensible BTUH (lowers the temperature) and Latent BTUH (lowers the relative humidity). Because our goal is to cool wine cellars while preserving humidity, wine cellar cooling units should have high Sensible BTUH and low Latent BTUH. The relationship between Sensible and Latent BTUHs is know as SHR (Sensible Heat Ratio), which is calculated as Sensible BTUH/Total BTUH. The SHR for CellarPro cooling units is greater than 90%, which means that CellarPro units provide maximum cooling power without stripping out humidity from the cellar environment.

*CellarPro Sensible BTUHs are calculated assuming 55F cellar temperature, 60% relative humidity and 95F ambient for all units except 1800 units (85F ambient).

How do I pick between this unit and the 1800XTS?

A: This cooling unit and the 1800XTS provide the same BTUH output, and therefore can be used to cool wine cellars with similar thermal loads. The biggest differences are

  1. The 2000VS unit can handle temperatures up to 110F, vs 95 with the 1800 units
  2. The 2000VS unit can be ducted on the cold side and hot side, whereas the 1800 Series cannot be ducted on the cold side
  3. The 1800XTS was designed to be installed with the front 8 inches inside the cellar, whereas the 2000VSi can be flush on the wall inside the cellar
  4. The 1800XTS blows the cold air down inside the cellar, whereas the 2000VSi blows the cold air forward inside the cellar
  5. The 1800XTS measures 18"W x 16 1/2"D x 10 1/2"H, whereas the 2000VSi measures 14 1/8"W x 22 1/4"D x 13 1/4"H - ie it will fit in between the studs
  6. Other standard upgrades in the 2000VSi include
    • An advanced condensate management system, with a large stainless steel drain pan, 1/2"ID drain line and optional 100W condensate evaporator
    • Independent variable-speed fan control for the cold and hot fans
    • Removable power cord, with power at the front or rear

How cold can the temperature be where the cooling unit pulls air?

A: For installations in environments below 40F down to 20F, we recommend adding our compressor heater (P/N 1727), which is included as standard equipment on all outdoor units. Below 20F, in addition to the compressor heater, we recommend adding our fan cycling switch (P/N 6972)

Does the unit really need a dedicated circuit?

A: First, the background. Unlike our competitors, we build our cooling units with precision expansion valves, not cap tubes, which means that our cooling units aren't limited to a 30F differential between the desired cellar temperature and the ambient temperature. Cooling systems with expansion valves are much more precise than cap tubes, and much more sensitive to low voltage conditions, which is why our units require dedicated circuits. When we say "dedicated circuit", we mean that the circuit shouldn't have any items that require heavy draws of electricity - eg other appliances, vacuum cleaners, big-screen TVs, blow-dryers - on the same circuit as the cooling unit. Lighting, computers or other low-draw items shouldn't be a problem on the same circuit.

Can the cooling unit be located in a remote location and ducted to/from the wine cellar?

A: These cooling units can be ducted up to 50 equivalent feet away from the wine cellar when used with our cold-side (front) duct hoods and kits. Remember that cold-side ducting must be insulated and additional load should be added to properly size the required cooling unit.

Can I install the entire unit inside the cellar?

A: These cooling units can be installed completely inside the wine cellar, attached to the ceiling, with the hot air exhaust and fresh air intake pushed to and pulled from outside the cellar using our hot side duct kit.

If I don't have sufficient space to pull fresh air, is that Ok?

A: The hot side of the cooling unit generates hot air that must have sufficient space to dissipate, otherwise the unit will recycle its own hot air. The hot air exhaust and/or intake can be ducted to another location with our hot-side duct hoods and kits, which allow supply and return airflows to be redirected to and from a temperature controlled environment OUTSIDE the cellar.

Can I use the low fan speed setting on the cooling unit when the unit is ducted?

A: Duct hoods and kits create additional static pressure and therefore require the use of the high fan speed to overcome the additional static pressure.
